Galvanized PVC Coated Gabion Wire Mesh Wall Stackable For Erosion Control

Galvanized PVC Coated Gabion Wire Mesh Wall Stackable For Erosion Control
Galvanized PVC Coated Gabion Wire Mesh Wall Stackable For Erosion Control Galvanized PVC Coated Gabion Wire Mesh Wall Stackable For Erosion Control Galvanized PVC Coated Gabion Wire Mesh Wall Stackable For Erosion Control

Large Image :  Galvanized PVC Coated Gabion Wire Mesh Wall Stackable For Erosion Control

Product Details:
Place of Origin: China
Brand Name: KN
Certification: CE, ISO, COC,BESC
Model Number: KNG01
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 14-19
Packaging Details: pallet or bundle
Delivery Time: 7
Payment Terms: L/C,Western Union,MoneyGram,T/T
Supply Ability: 1 40-foot high containers in 7 days
Contact Now Chat Now
Detailed Product Description
Product Name: 20-30 Years Lifespan Durable 80mm X 100mm Galvanized Gabion Wire Mesh Basket For Dam Protection Key Word: Gabion Wire Mesh
Material: Galvanized Iron Wire,Low-Carbon Iron Wire,pvc Wire, Galfan Wire Hole Shape: Hexagonal, Double Twist
Wire Gauge: 2.4mm, 2.5mm, 2.7mm, 2.8mm, 3.05mm Application: Gabions,Cages,slope Protection,Fence Mesh,Construction Wire Mesh
Type: Hexagonal Wire Mesh, Double Twist Aperture: 80*100mm,100*120mm,60*80mm,etc,
Surface Treatment: Hot Dipped Galvanized, PVCcoated, Galvanized+PVC Coated Product Name: Gabion Box, Gabion Box Wire Mesh,Gabion Basket,Hot Sale 2x1x1m PVC Coated Heavy Duty Gabion
Size: 2m*1m*1m,1x1x0.5m,4*1*1m,5*1*1,Customized, Feature: Easily Assembled,less Transport Freight,Strong And Durable, Simple Installation
Highlight:

galvanized PVC coated gabion mesh

,

stackable gabion retaining wall

,

flood control gabion wire mesh

Galvanized PVC Coated Gabion Wire Mesh Wall Stackable For Erosion Control
7 Days Delivery Galvanized PVC Coated Stackable Gabion Mesh Wall for Flood Gabion Retaining Wall

Rely on Gabion Mesh Wall for instant, lasting earth control. Each 2×1×1 m cage is precision-woven from 2.7 mm steel, triple-sealed with 260 g/m² molten zinc, then wrapped in a UV-proof PVC skin to defy salt spray, frost and chemical runoff. Fill the hexagonal cells with local stone and the wall becomes a living barrier: water drains through, roots knit the rock together, and the structure grows stronger every season. Lightweight panels fold flat for transport, hook together without pins or tools, and bend to any shoreline or slope. Use one layer for garden terraces, stack three for highway shoulders, or curve them into decorative seating--no mortar, no maintenance, just gravity and greenery doing the work.

Galvanized PVC Coated Gabion Wire Mesh Wall Stackable For Erosion Control 0
Product Specification
Regular Size Mesh Size
Length (m) | Width (m) | Height (m) 8cm * 10cm | 6cm * 8cm
Galvanized or PVC Coated Galvanized or PVC Coated
Mesh Wire | Zinc Wire Mesh Wire | Zinc Wire
2 | 1 | 1 | 2.7mm | ＞245g 2.0mm | ＞215g
GABION BOX
3 | 1 | 1 | Edge Wire | Zinc Weight Edge Wire | Zinc Weight
4 | 1 | 1 | 3.4mm | ＞265g 2.7mm | ＞245g
6 | 1 | 1 | Lance Wire: 2.2mm Lance Wire: 2.0mm
Galvanized PVC Coated Gabion Wire Mesh Wall Stackable For Erosion Control 1
Product Usage
  • Erosion Control: Woven gabion mesh is frequently used to stabilize slopes and riverbanks, effectively preventing soil erosion by holding back loose earth and allowing for proper water drainage.
  • Retaining Walls: This mesh is ideal for constructing retaining walls that not only secure hillside soil but also add an aesthetic, natural look to landscapes, making it popular in both residential and commercial projects.
  • Flood Protection: In areas prone to heavy rainfall or flooding, woven gabion mesh forms durable barriers that can divert water flow, thereby reducing the risk of flood damage and protecting nearby infrastructure.
  • Coastal Defense: The mesh is used along shorelines to stabilize sandy beaches and cliffs, mitigating the effects of wave action and protecting coastal properties from erosion.
  • Road and Highway Embankments: Woven gabion mesh can reinforce road embankments by retaining soil and reducing the likelihood of landslides, ensuring the long-term stability of transportation routes.
  • Bridge Abutments and Foundations: In bridge construction, the mesh is applied to strengthen abutments and support foundations, offering a cost-effective solution for reinforcing structural integrity.
Gabion Basket Technical Data
Parameter Description Typical Value / Range
Material Base material used for constructing the mesh HDP/Galvanized Wire, PVC Wire
Coating Surface treatment for enhanced corrosion resistance Galvanized, HDP Galvanized, PVC Coated
Wire Diameter The thickness of the wires used in the mesh Mesh Wire: 2.0~3.05mm
Selvage Wire: 2.4~4.0mm
Tie Wire: 2.0~2.4mm
Mesh Opening Size The size of the openings between wires, determining the size of stones that can be contained 60*80mm, 80*100mm, 100*120mm,120*150mm
Overall Dimensions Standard Gabion Roll and Gabion Basket Size Gabion Roll Width: 1~4m
Gabion Basket: 1*1*1m,2*1*1m,3*1*1m,4*1*1m,5*1*1m,6*1*1m
Lifespan Expected service life under normal installation and maintenance conditions Generally 6~20 years, depends on environment.
Option Metal Choice
  1. Galvanized Wire: zinc weight can be from 40g to 280g per square meter
  2. Aluminum-Zinc Coated Wire(Alu 5% or Al 10%): zinc weight can be from 200g to 500g per square meters.
Galvanized PVC Coated Gabion Wire Mesh Wall Stackable For Erosion Control 2

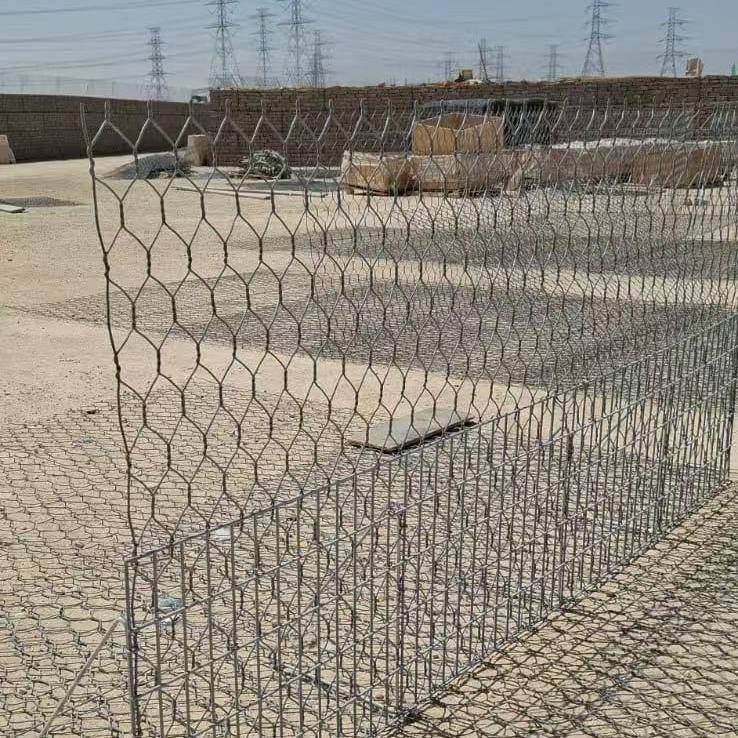

Project Site Picture Show
Galvanized PVC Coated Gabion Wire Mesh Wall Stackable For Erosion Control 3 Galvanized PVC Coated Gabion Wire Mesh Wall Stackable For Erosion Control 4

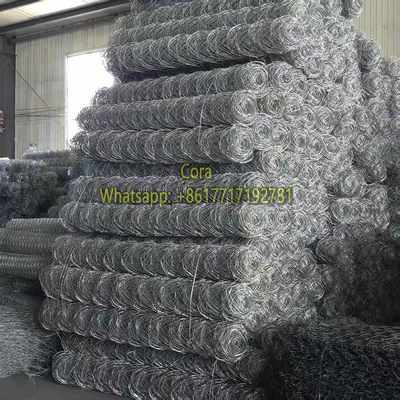

Factory overall display
Galvanized PVC Coated Gabion Wire Mesh Wall Stackable For Erosion Control 5 Galvanized PVC Coated Gabion Wire Mesh Wall Stackable For Erosion Control 6
