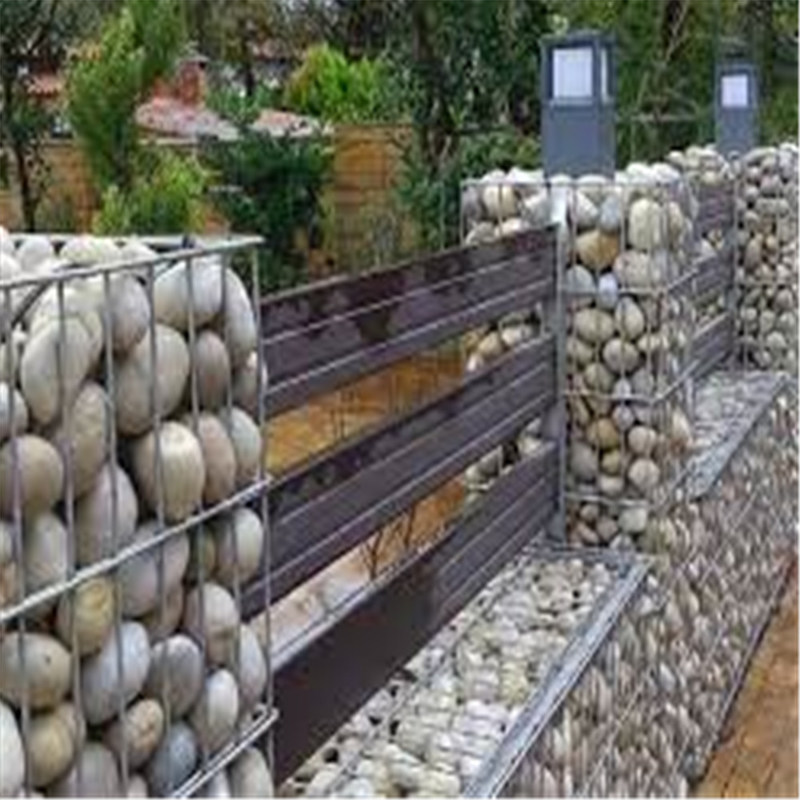

Hot Dipped Welded Mesh Gabions Retaining Wall Using Gabion Baskets

Hot Dipped Welded Mesh Gabions Retaining Wall Using Gabion Baskets
Hot Dipped Welded Mesh Gabions Retaining Wall Using Gabion Baskets

Large Image :  Hot Dipped Welded Mesh Gabions Retaining Wall Using Gabion Baskets

Product Details:
Place of Origin: CN
Brand Name: KN
Certification: CE ISO SGS COC PVOC
Model Number: KN-welded gabion
Payment & Shipping Terms:
Minimum Order Quantity: 100 pc
Price: USD 39-45
Packaging Details: pallet
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 pc per day
Contact Now Chat Now
Detailed Product Description
Product Name: Hot Dipped Welded Mesh Gabions , Retaining Wall Using Gabion Baskets Key Words: Welded Gabion
Helical Wire: 3mm Edge Wire Diameter: 3.0-4.0mm
Mesh Size: 50x50mm, 75x75mm, 100x100mm Feature: Easily Assembled, Anti-corrosion
Pvc Painted Color: Gray, Dark Green, White Aperture: 50×50mm, 50×100mm
Highlight:

hot dipped welded mesh gabions

,

welded mesh retaining wall

,

hot dipped mesh retaining wall

Hot Dipped Welded Mesh Gabions Retaining Wall Using Gabion Baskets
Hot Dipped Welded Mesh Gabions, Retaining Wall Using Gabion Baskets

Welded Gabion boxes are delivered in pallets or bundles for convenient transportation and storage. Pallet packaging provides added protection during shipping, while bundled options offer flexibility for handling and installation.

Welded Gabion Basket Specifications
  • Product Name: Welded Gabion Box
  • Box Size: 1x1x1m, 2x1x1m, 3x1x1m
  • Customise: Acceptable
  • Process: Woven Mesh
  • Colors: As Required
  • Wire: 3.0mm-5.0mm
Welded Gabion Technical Specifications
Type of Welded Gabion Wire Gauge Diameter Mesh Size Gabion Size
Galvanized 3-5mm 50X50,75X75,50X100 2*1*1, 1*1*1,1*1*0.5,etc
PVC Coated 3.0/3.8mm 50X50,75X75,50X100 2*1*1, 1*1*1,2*1*0.5,etc
95% Zinc + 5% Al 3-5mm 50X100,75X75,100X100 1*1*0.5,2*1*1,1*1*0.3etc
Welded Gabion Basket Connection Methods
  • U-clips
  • C-ring
  • Lacing wire connection
  • Hook connection

The spiral wires & hooks or stiffeners are most popular due to their superior strength for various applications.

Welded Gabion Basket Advantages
  • Economical - Simply fill with stones and seal
  • Simple installation requiring no special technology
  • Weatherproof with natural corrosion resistance
  • Promotes plant growth through natural sludge accumulation
  • Excellent permeability prevents hydrostatic damage
  • Reduced transport costs - folds compactly for shipping
  • Maintains structural integrity even under significant deformation
Hot Dipped Welded Mesh Gabions Retaining Wall Using Gabion Baskets 0
