Double Twisted Hexagonal Woven Gabion Boxes 2X1X1m for flow regulation

Double Twisted Hexagonal Woven Gabion Boxes 2X1X1m for flow regulation
Double Twisted Hexagonal Woven Gabion Boxes 2X1X1m for flow regulation Double Twisted Hexagonal Woven Gabion Boxes 2X1X1m for flow regulation

Large Image :  Double Twisted Hexagonal Woven Gabion Boxes 2X1X1m for flow regulation

Product Details:
Place of Origin: China
Brand Name: KN
Certification: CE ISO
Model Number: 2X1X1 3X1X1 4X1X1 6X2X0.3
Payment & Shipping Terms:
Minimum Order Quantity: 100pc
Price: USD 15-18
Packaging Details: pallets
Delivery Time: 7-10 days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 1000 pc need 7 days
Contact Now Chat Now
Detailed Product Description
Features: Flexible, Corrosion Resistant, Easy To Install Stock: Have Large Stock
Tensile Strength: 350-550N/mm2 Customized: Avaliable
Wire Diameter: 2.7mm Zinc: >245g/m²
Cage Size: 1*1*1m,2*1*1m,3*1*1m,4*1*1m Net Wire: Popular 2.7mm
Advantages: Easy Install, Long Using Life Season: Everyday
Twist: Double Twisting Selvage Wire: 3.4mm
Product Name: Double Twisted Hexagonal Wire Mesh Gabion Box 2 X 1 X 1 M Gabion 80 X 100 Mm Gabion Basket For Flood Control Project Key Words: Gabion BOX
Highlight:

flow regulation Woven Gabion Boxes

,

hexagonal gabion basket 2X1X1m

,

Double Twisted Woven Gabion Boxes

Double Twisted Hexagonal Woven Gabion Boxes 2X1X1m for Flow Regulation
Product Overview

Double Twisted Hexagonal Wire Mesh Gabion Box (2 x 1 x 1 m) with 80 x 100 mm apertures, designed for flood control projects. Constructed from Galfan-coated steel mesh (3.5mm wire diameter) to withstand hydraulic shear forces in weir construction and flow regulation applications.

Product Specifications
Hole (mm) Zinc Level (Gr/M2) Length (m) Width (m) Height (m) Mesh Wire (mm) Edge Wire (mm) Tie Wire (mm) Diaphragm
80 X 100 280 2.0 1.0 1.0 2.70 3.40 2.00 1
81 X 100 280 3.0 1.0 1.0 2.70 3.40 2.00 2
80 X 100 280 1.0 1.0 1.0 2.70 3.40 2.00 0
Customizable Dimensions
  • Length: Customized according to project requirements
  • Width: Customized according to project requirements
  • Height: Customized according to project requirements
  • Wire Diameter: 3mm, 4mm, 5mm options available
  • Surface Treatment: Galvanizing or PVC coating
Material Selection Guide
Galvanized Wire: Suitable for dry conditions, short water contact periods, non-submerged applications, and non-corrosive environments.
Galvanized PVC Coated Wire: Recommended for wet conditions, submerged applications, and corrosive soil/water environments.
Key Advantages
  • Durability: Long service life with corrosion-resistant coatings (galvanized or PVC)
  • Flexibility: Adapts to ground movement without cracking, ideal for seismic areas
  • Permeability: Reduces water pressure by allowing natural drainage
  • Eco-Friendly: Uses natural materials and blends with environment
  • Cost-Effective: Affordable materials and simple construction process
  • Aesthetic: Natural appearance with customizable stone fill options
Applications
  • Water conservancy projects (embankments, riverbank protection)
  • Environmental protection and soil conservation
  • Road foundation protection and stabilization
  • Coastal protection against wave erosion
  • Architectural decoration elements
Inquiry Requirements

When requesting a quote, please specify:

  • Intended use (soil stabilization, retaining wall, rock fall protection, etc.)
  • Preferred type (welded or hexagonal twisted gabions)
  • Wire diameter and mesh spacing requirements
  • Special features (collapsible design, open gate, reinforced edges)
  • Any other custom requirements
Product Images

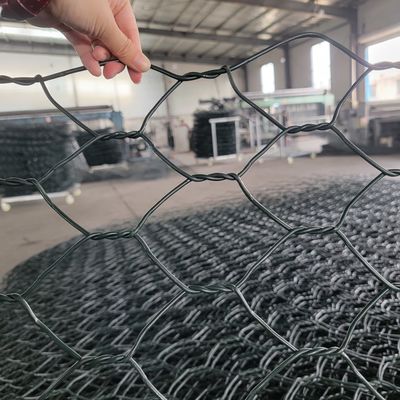

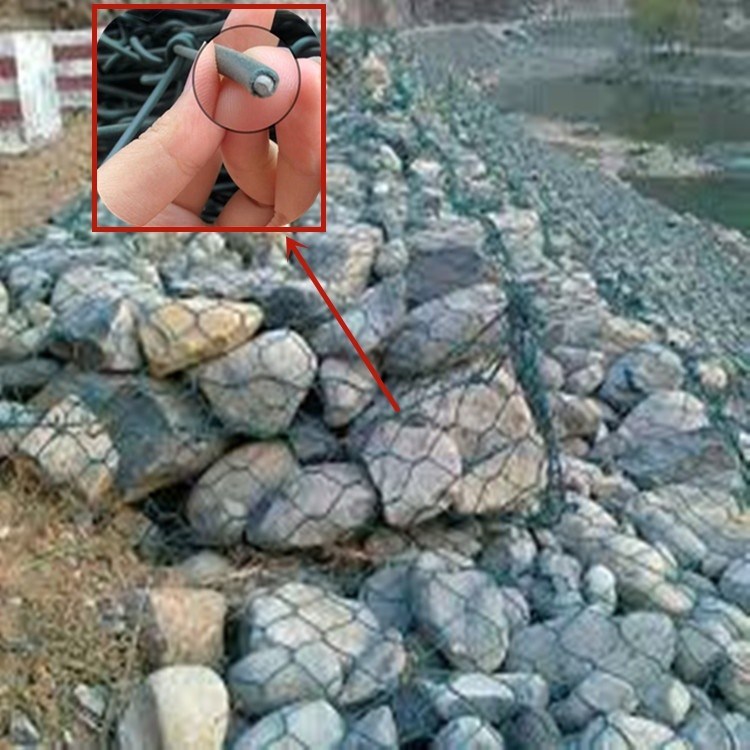

Double Twisted Hexagonal Woven Gabion Boxes 2X1X1m for flow regulation 0 Double Twisted Hexagonal Woven Gabion Boxes 2X1X1m for flow regulation 1 Double Twisted Hexagonal Woven Gabion Boxes 2X1X1m for flow regulation 2 Double Twisted Hexagonal Woven Gabion Boxes 2X1X1m for flow regulation 3
About Our Company

We are a leading gabion mesh supplier with extensive industry experience and technical capabilities. Our products meet international standards (EN 10223-3) and have been successfully implemented in projects worldwide. We offer both standard and custom solutions to meet specific project requirements.
