Permeable And Hydrostatic Pressure Resistant Gabion Cage Wall For Riverbed Protection And Landslide Control

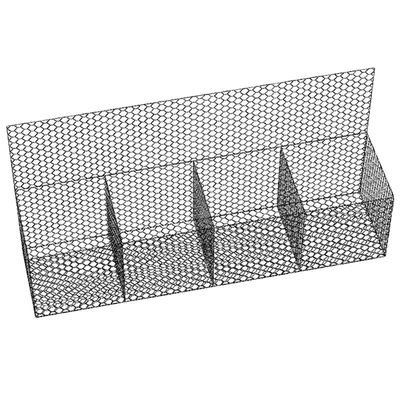

Büyük resim : Permeable And Hydrostatic Pressure Resistant Gabion Cage Wall For Riverbed Protection And Landslide Control

Ürün ayrıntıları:

Menşe yeri:	ÇİN
Marka adı:	KN
Sertifika:	ISO CE
Model numarası:	4x1x1

Ödeme & teslimat koşulları:

Min sipariş miktarı:	100 adet
Fiyat:	USD 17-20
Ambalaj bilgileri:	Paletler
Teslim süresi:	7-8 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Günde 5000MW

İletişim Şimdi konuşalım.

Detaylı ürün tanımı

Yüzey işleme:	Sıcak daldırılmış galvanizli	Çinko kaplama:	≥ 240g/m²
Boyut:	2m x 1m x 1m	Başvuru:	erozyon kontrolü, istinat duvarları, peyzaj
uzama:	≥ 10%	Tel Çapı:	3.0mm
Ürün_adı:	Gabion kafesleri	Malzeme:	Galvanizli çelik tel
Dayanıklılık:	Uzun ömürlü	Çekme Dayanımı:	350-500n/mm²
Örgü boyutu:	50mm x 50mm	Kurulum:	Kolay ve hızlı
Konektörler:	C halkaları	Montaj yöntemi:	spiral ciltleme
Paket:	Palet veya Dökme
Vurgulamak:	riverbed gabion cage wall , riverbed gabion rock cage retaining wall , landslide control gabion cage wall

Permeable And Hydrostatic Pressure Resistant Gabion Cage Wall For Riverbed Protection And Landslide Control

Woven Gabion Cages for Hydraulic Infrastructure

Fabricated from double-twisted hexagonal steel mesh (3.0-4.2mm wire) with Class A galvanization (≥265g/m²), these cages form modular units for critical hydraulic applications including weir construction, diversion channel armoring, and pump station protection. The 90×110mm mesh configuration accommodates 150-350mm stone fill, engineered for energy dissipation in high-velocity discharge zones. Units integrate interlocking connectors and reinforced edges to withstand cyclic hydraulic loads in spillway aprons and sedimentation basins. Compliant with DIN EN 10223-3 specifications, customizable in trapezoidal or curved geometries for complex water control structures. Designed for installation in regulated river systems and irrigation networks requiring adaptive, permeable reinforcement solutions.

Key Features

Economical, just put the stone into the cage and seal it
Easy construction without the need for special techniques
Strong ability to resist natural damage, erosion, and adverse weather conditions
Can withstand large-scale deformation without collapsing
The silt between the cracks of the cage stones is conducive to plant growth and can integrate with the surrounding natural environment
Good permeability to prevent damage caused by hydrostatic pressure
Save transportation costs - can be folded up for transportation and assembled on-site
Fast progress, conducive to rush work periods with parallel construction capability

Product Parameters

Size	Wire Diameter	Diaphragm	Length	Width	Height	Sqm	Color	Surface Treatment
60×80mm 80×100mm 80×110mm 100×120mm 120×150mm	2.0-4.0mm 2.2mm, 2.7mm, 3.0mm, 3.05mm is common	1	2m	1m	0.5m	7.5㎡	Silver Dark Green Gray Black	Hot dip galvanized PVC coated PE coated Galfan
		1	2m	1m	1m	11㎡
		2	3m	1m	0.5m	10.5㎡
		2	3m	1m	1m	16㎡
		3	4m	1m	0.5m	14.5㎡
		3	4m	1m	1m	21㎡

A new material structure applied to transportation, water conservancy, municipal engineering, landscaping, soil and water conservation and other engineering projects. The product varieties are classified according to their engineering purposes, including gabion nets for roads, alloy mesh bags, landscape design, retaining walls, bridge protection, coastal defense, embankment and river protection.

Packaging Options

30-100 Sets make one Bundle, then wrapped by good quality Plastic Films outside
Nude package
Delivery by Wooden Tray (one Tray loading about 1 Ton)

Environmental Benefits

Use of Natural and Recycled Materials: Utilizes locally sourced natural stones with minimal processing and can be filled with recycled construction materials
Erosion Control and Soil Stabilization: Stabilizes slopes, riverbanks, and shorelines while allowing water permeability
Low Carbon Footprint: Local sourcing minimizes transportation emissions and supports local economies
Enhancing Biodiversity: Creates habitats for small animals and plants while blending with natural environments
Durability and Longevity: Withstands harsh conditions with minimal maintenance requirements
