Steel Wire Rock Netting Slope Protection High Tensile For Rockfall Containment

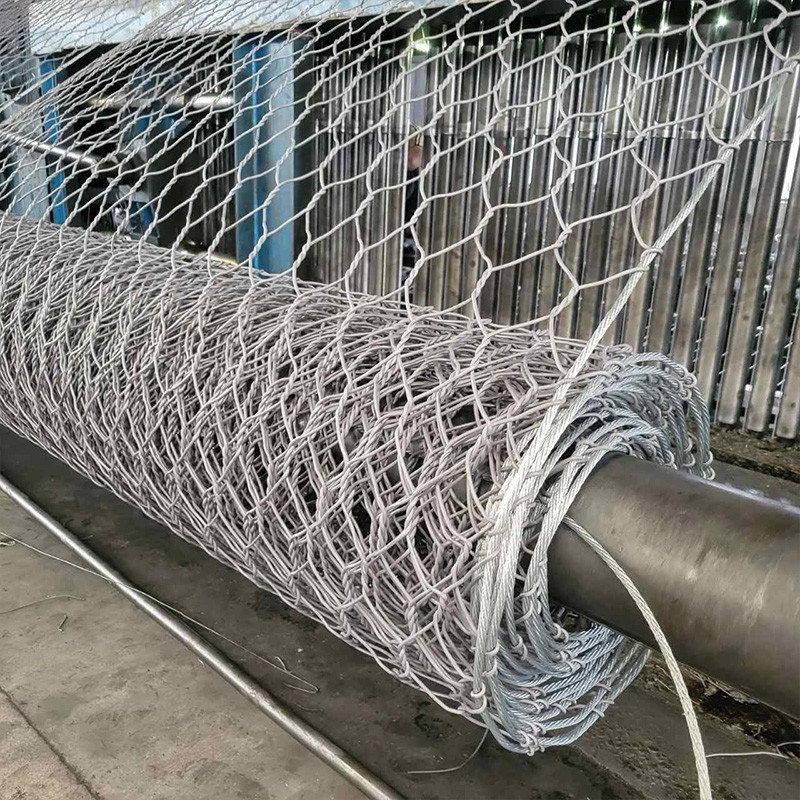

Large Image : Steel Wire Rock Netting Slope Protection High Tensile For Rockfall Containment

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	KN-Rockfall Netting

Payment & Shipping Terms:

Minimum Order Quantity:	100roll
Price:	USD 120-140
Packaging Details:	pallet
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 pc per day

Contact Now Chat Now

Detailed Product Description

Product Name:	High Tensile Rockfall Netting Durable And Stable Solution For Rockfall Containment	Key Word:	Rockfall Netting
Material:	High-strength Steel Wire	Zinc Coating:	≥245g/m²
Length:	5 M, 10 M, 20 M, 25 M, 30 M, 35 M, 50 M.	Color:	Silver
Installation Method:	Drilling And Anchoring	Roll Size:	1m X 50m
Tensile Strength:	≥1770N/mm²	Wire Structure:	6*19 IWS
Connection Type:	Sleeve Joint	Corrosion Resistance:	Yes
Highlight:	High Tensile steel rockfall netting , steel rock netting slope protection , Steel Wire Rock Netting Slope Protection

Steel Wire Rock Netting Slope Protection High Tensile For Rockfall Containment

High Tensile Rockfall Netting provides a durable and stable solution for rockfall containment. This product combines a homogeneous structure of bi-directional steel wire ropes with double twist wire mesh, resulting in excellent out-of-plane stiffness (punch resistance) and outstanding tensile strength in both longitudinal and transversal directions.

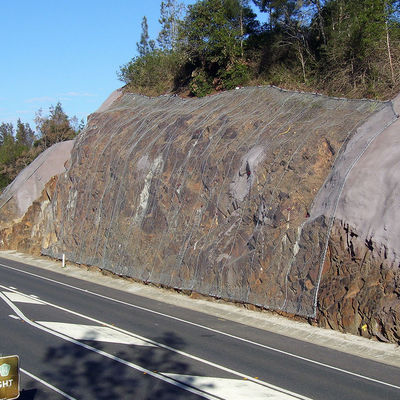

Rockfall netting may be installed on cliff faces subject to ongoing rockfalls as a continuous, passive free-hanging curtain. Designed to contain rather than prevent rockfall, it offers an effective solution for slope protection. As an alternative to passive systems, active restraint systems may be constructed using high tensile mesh in conjunction with rock bolts to prevent further rockfall, particularly beneficial where infrastructure constraints exist at the toe of the rock face.

Key Advantages

High Tensile Strength: Hexagonal wire mesh features a double twisted structure that withstands the impulsive force of falling rocks without unraveling in the event of wire breakage.

Corrosion and Rust Resistance: Heavy zinc coating provides excellent long-term corrosion resistance. Optional PVC coating allows use in more aggressive environments and extends service life.

High Durability & Stability: Boundary rope and wire rope anchors securely enclose the hexagonal wire mesh onto mountain tops and bases for enhanced durability and stability.

Improved Firmness: Prestressed anchors fasten the hexagonal wire mesh firmly onto mountains, including uneven surfaces, to improve overall firmness.

Product Features
