Custom Hot Dip Galvanized Steel Gabion Mattresses Flood Resilience For Water Control

Large Image : Custom Hot Dip Galvanized Steel Gabion Mattresses Flood Resilience For Water Control

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	KN-gabion mattress

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 16-20
Packaging Details:	pallet
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 pc per day

Contact Now Chat Now

Detailed Product Description

Features:	Flexible, Easy To Install, Corrosion Resistant	Product Name:	Woven Gabion Mattress Curved Riverbank Stabilization High Tensile Wire Flood Resilience
Key Words:	Gabion Mattress	Application:	River Bank Protection, Slope Protection, Erosion Control
Mesh Type:	Hexagonal	Mattress Size:	2x1x1 M, 3x1x1 M, 4x1x1 M
Wire Diameter:	2.0-4.0 Mm	Packing:	Packed In Bundles Or Pallets
Zinc Coating:	≥ 240 G/m2	Material:	Galvanized Steel Wire
Aperture:	60x80 Mm	Mesh Size:	60x80 Mm, 80x100 Mm, 100x120 Mm
Highlight:	Hot Dip Galvanized Gabion Mattresses , Custom Gabion Mattresses Flood Resilience , Water Control Steel Gabion Mattresses

Custom Hot Dip Galvanized Steel Gabion Mattresses for Flood Resilience and Water Control

Woven Gabion Mattress for Water Control Projects

Our woven gabion mattresses are engineered for hydraulic applications, constructed from double-twisted hexagonal steel mesh (2.7-4.0mm diameter) with galvanized or PVC coating. The flat, rectangular units (standard size 2m×1m×0.3m) feature 80×100mm mesh openings filled with durable stone aggregate.

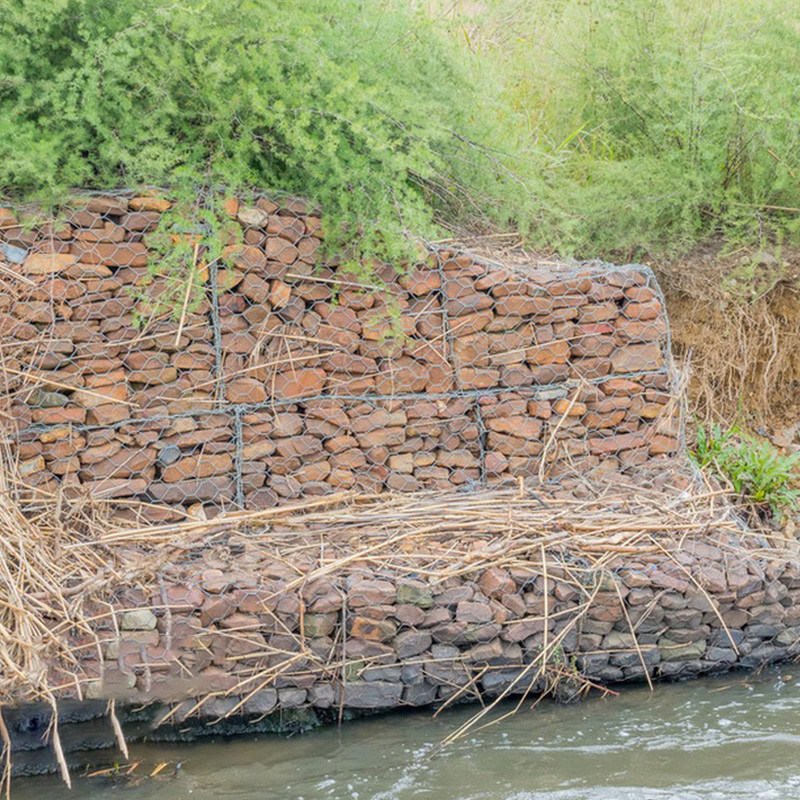

Designed specifically for riverbank stabilization, channel protection, coastal revetments, and dam face armoring, these mattresses provide flexible, permeable erosion control. Internal diaphragms enhance structural integrity in flowing water conditions. The system complies with international standards (EN 10223-3) and can be customized to various thicknesses (150-500mm) for different hydraulic requirements.

Key Features

Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages

3x Lifespan: 50-100 years corrosion resistance
Load Capacity: Up to 50kN/m² vertical pressure
Eco-Friendly: 100% recyclable materials with zero chemical runoff
Modular Assembly: Interlocking panels for 70% faster installation

Applications

Civil Engineering: Riverbank stabilization, highway embankments
Architecture: Retaining walls, sound barriers, decorative façades
Disaster Prevention: Flood control barriers, landslide mitigation systems
Mining: Tailings dam reinforcement, slope retention

Customization Services

Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
Wire Diameters: 2.2mm - 4.0mm (3.0mm recommended for high-load zones)
Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)

Gabion Specifications

Mesh Hole Model	8x10cm
Mesh Hole Model	Galvanized or PVC coated	Galvanized or PVC coated
Length (m) × Width (m) × Height (m)	Mesh diameter: 2.7mm Zinc: >245g/m²	Mesh diameter: 2.0mm Zinc: >215g/m²
2 × 1 × 1	Side wire diameter: 3.4mm Zinc: >265g/m²	Side wire diameter: 2.7mm Zinc: >245g/m²
3 × 1 × 1	Binding wire diameter: 2.7mm	Binding wire diameter: 2.0mm
