Hexagonal Gabion Wall Cages Hot Dip Galvanized Steel for Riverbank Protection

Large Image : Hexagonal Gabion Wall Cages Hot Dip Galvanized Steel for Riverbank Protection

Product Details:

Place of Origin:	CHINA
Brand Name:	KN
Certification:	ISO CE
Model Number:	4X1X1 2x1x1

Payment & Shipping Terms:

Minimum Order Quantity:	100pc
Price:	USD 17-20
Packaging Details:	pallets
Delivery Time:	7-8 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	5000mw per day

Contact Now Chat Now

Detailed Product Description

Surface Treatment:	Hot-dipped Galvanized, Pvc Coated	Zinc Coating:	≥ 270g/m²
Size:	2m X 1m X 1m	Application:	Erosion Control, Retaining Walls, Landscaping
Elongation:	≥ 10%	Wire Diameter:	3.0mm
Product_Name:	Gabion Cages	Material:	Galvanized Steel Wire
Durability:	Long-lasting	Tensile Strength:	350-500N/mm²
Mesh Size:	50mm X 50mm	Installation:	Easy And Quick
Connectors:	C Rings	Assembly Method:	Spiral Binding
Package:	Pallet Or In Bundle
Highlight:	Hexagonal Gabion Wall Cages , Hot Dip Galvanized Gabion Cages , Gabion Cages for Riverbank Protection

Hexagonal Gabion Wall Cages - Hot-Dip Galvanized Steel for Riverbank Protection

Product Specifications

Attribute	Value
Surface Treatment	Hot-dipped galvanized, PVC coated
Zinc Coating	≥ 270g/m²
Size	2m x 1m x 1m
Application	Erosion control, retaining walls, landscaping
Elongation	≥ 10%
Wire Diameter	3.0mm
Material	Galvanized steel wire
Durability	Long-lasting
Tensile Strength	350-500N/mm²
Mesh Size	50mm x 50mm
Installation	Easy and quick
Connectors	C rings
Assembly Method	Spiral binding
Package	Pallet or in bundle

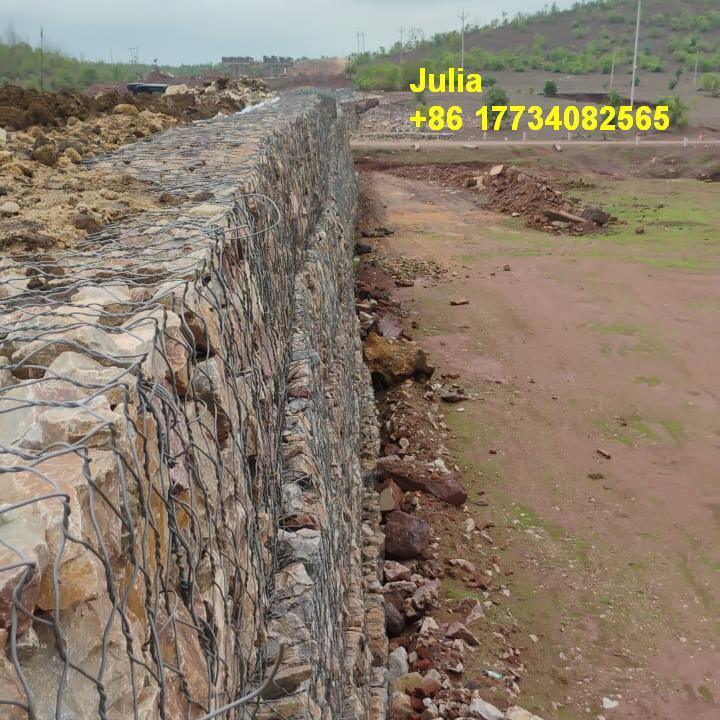

Flexible and deformation-resistant gabion cages for complex geometries in regulated river systems. Ideal for commercial developments, infrastructure embankments, and architectural landscaping, our Hexagonal Gabion Wall System offers engineers, architects, and contractors a resilient, visually striking solution that merges function with form.

Transform landscapes with our Hexagonal Gabion Wall System, a fusion of structural integrity and contemporary aesthetics. Precision-welded from heavy-gauge, hot-dip galvanized steel wire, each hexagonal cage delivers exceptional tensile strength and corrosion resistance for lifespans exceeding 25 years—even in coastal or chemically aggressive soils.

Key Features

Economical - just fill with stone and seal
Simple construction requiring no special techniques
Excellent resistance to natural damage, erosion, and adverse weather
Withstands large-scale deformation without collapse
Silt between stones promotes plant growth and environmental integration
Superior permeability prevents hydrostatic pressure damage
Cost-effective shipping - folds flat for transport and assembles on-site
Rapid installation enables parallel construction for tight deadlines

Technical Parameters

Size	Wire Diameter	Diaphragm	Length	Width	Height	Sqm	Color	Surface Treatment
6080mm 80100mm 100*120mm	2.0-4.0mm (2.2mm,2.7mm,3.0mm,3.05mm common)	1	2m	1m	0.5m	7.5㎡	Silver, Dark, Green, Gray, Black	Hot dip galvanized PVC coated PE coated Galfan
		1	2m	1m	1m	11㎡
		2	3m	1m	0.5m	10.5㎡
		2	3m	1m	1m	16㎡
		3	4m	1m	0.5m	14.5㎡
		3	4m	1m	1m	21㎡

Applications

A versatile structural solution for transportation, water conservancy, municipal engineering, landscaping, and soil/water conservation projects. Available configurations include:

Road gabion nets
Alloy mesh bags
Landscape design elements
Retaining walls
Bridge protection systems
Coastal defense structures
Embankment and river protection

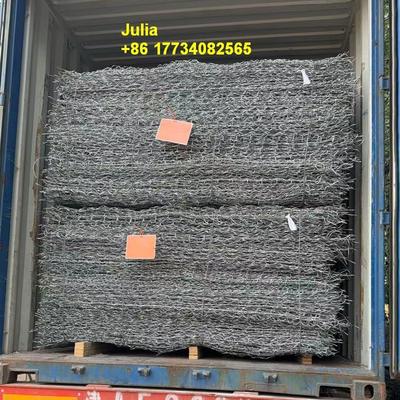

Packaging Options

30-100 sets per bundle, wrapped in quality plastic film
Nude package option
Wooden tray delivery (approximately 1 ton per tray)

Environmental Benefits

Use of Natural and Recycled Materials: Utilizes locally sourced natural stones with minimal processing and can incorporate recycled construction materials.

Erosion Control: Stabilizes slopes and shorelines while allowing water permeability to reduce runoff and promote groundwater recharge.

Sustainability: Local material sourcing minimizes transportation emissions, while the energy-efficient installation process reduces overall carbon footprint.

Biodiversity Enhancement: Stone gaps create habitats for wildlife and promote natural integration with surrounding ecosystems.

Durability: Withstands harsh conditions for decades with minimal maintenance requirements.
