200x100x50 Gabion Retaining Wall Hexagonal Hole Gabion Garden Wall Stone Cage

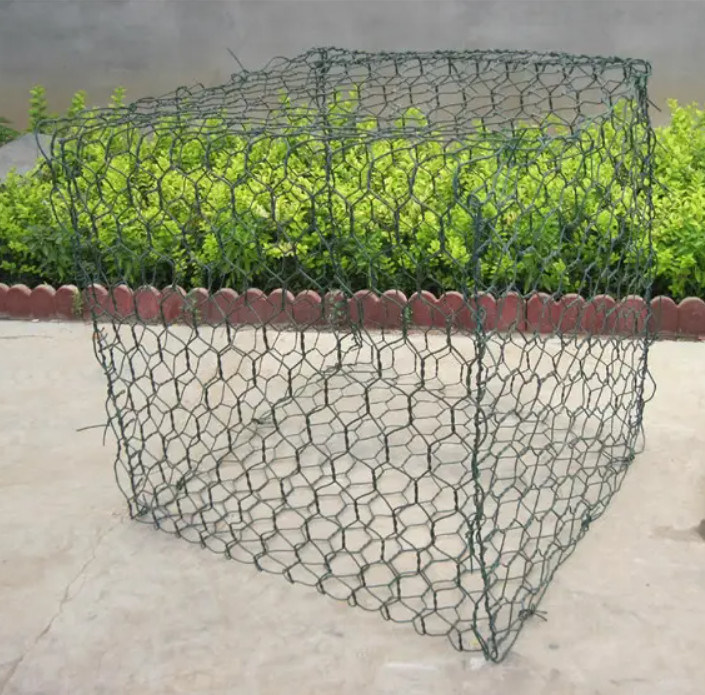

Large Image : 200x100x50 Gabion Retaining Wall Hexagonal Hole Gabion Garden Wall Stone Cage

Product Details:

Place of Origin:	China
Brand Name:	KN
Certification:	CE ISO
Model Number:	2X1X1 3X1X1 4X1X1 6X2X0.3

Payment & Shipping Terms:

Minimum Order Quantity:	100pc
Price:	USD 12-17
Packaging Details:	pallets
Delivery Time:	7-10 days
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	1000 pc need 7 days

Contact Now Chat Now

Detailed Product Description

Features:	Flexible, Corrosion Resistant, Easy To Install	Stock:	Have Large Stock
Tensile Strength:	350-550N/mm2	Customized:	Avaliable
Wire Diameter:	2.7mm	Zinc:	>245g/m²
Cage Size:	111m,211m,311m,411m	Net Wire:	Popular 2.7mm
Advantages:	Easy Install, Long Using Life	Season:	Everyday
Twist:	Double Twisting	Selvage Wire:	3.4mm
Lacing Wire:	Common Use 2.2mm
Highlight:	200x100x50 Gabion Retaining Wall , 200x100x50 gabion garden wall , Hexagonal Hole Gabion Garden Wall

200x100x50 Gabion Retaining Wall Hexagonal Hole Gabion Garden Wall Stone Cage

200x100x50 Box Gabion Retaining Walls Blocks Hexagonal Hole Garden Gabion Basket Stone Cage - Constructed with double-twisted hexagonal steel mesh (3.2-4.0mm wire) and ISO 1461-compliant galvanization (≥275g/m²), our gabion walls are engineered for tidal barrage reinforcement and estuarine flood control.

Key Features

70×90mm mesh configuration integrates with anti-salinity geocomposites
Designed for curved installations in harbor basins and saltmarsh restoration
Supports hybrid stone-concrete fills (200-400mm) for wave energy dissipation
Customizable in segmented modules (1-4m height)
Sacrificial anode compatibility for extended service life in coastal environments

Drainage System

Three dimensional composite with thermobonding draining core featuring "W" configuration in extruded monofilaments (minimum thickness 6mm), with two filtering UV stabilized polypropylene nonwoven geotextile layers (minimum thickness 0.75mm, tensile strength 8.0 kN/m).

Technical Specifications

Mesh Size	3" x 3" (square opening) or 60x80mm, 80x100mm, 100x120mm
Dimensions	Customized according to project requirements
Wire Diameter	3mm, 4mm, 5mm
Surface Treatment	Galvanizing, PVC coating

Product Advantages

Durability: Long service life with corrosion-resistant galvanized or PVC-coated wire mesh
Flexibility: Adapts to ground movement without cracking, ideal for seismic areas
Permeability: Reduces water pressure by allowing water passage
Eco-Friendly: Uses natural materials and blends with environment
Cost-Effective: Affordable materials and simple construction
Aesthetic: Natural appearance with customizable stone options

Applications

Water Conservancy Projects: Embankments, riverbank protection
Environmental Protection: Ecological restoration, soil conservation
Road Protection: Enhances road foundation stability
Coastal Protection: Seawalls and port projects
Architectural Decoration: Building exterior decorative elements

Company Profile

We are a leading gabion mesh supplier in China with extensive industry experience and technical capabilities. Our products are exported worldwide, and we offer both standardized and customized solutions.
