Galfan/PVC Coated Heavy-Duty Gabion Box – Extended Service Life for Coastal & Aggressive Environments

Galfan/PVC Coated Heavy-Duty Gabion Box – Extended Service Life for Coastal & Aggressive Environments
Galfan/PVC Coated Heavy-Duty Gabion Box – Extended Service Life for Coastal & Aggressive Environments

Large Image :  Galfan/PVC Coated Heavy-Duty Gabion Box – Extended Service Life for Coastal & Aggressive Environments

Product Details:
Place of Origin: CHIAN
Brand Name: KN
Certification: ISO, CE, COC, CO
Model Number: KN211
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiate
Packaging Details: pallaet
Delivery Time: 5-8 working days
Payment Terms: T/T,Western Union
Supply Ability: 30000 square meter per 7 days
Contact Now Chat Now
Detailed Product Description
Material: Hot Dipped Galvanized Wire, Galfan Wire, Zinc Coated Wire Mesh Hole: 8*10cm, 10*12cm, 6*8cm
Size: 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m ,5*1*1m, 6*1*1m Border Wire: From 2.7mm To 3.8mm
Package: In Bundle, Or In Pallet Sample: Free
Mesh Wire: From 2.2mm To 3.05mm Production Time: 7 Days For 1/40HQ
Key Words: Gabion Basket, Gabion Box, Gabion Cage Usage: Retaining Wall, Flood Control, Slope Protection
Highlight:

Galfan coated gabion box

,

PVC coated gabion box

,

heavy-duty gabion box coastal

Galfan/PVC Coated Heavy-Duty Gabion Box – Extended Service Life for Coastal & Aggressive Environments



Product Details:
Enhanced Corrosion Protection: Two upgrade options available. Galfan (Zn-5%Al-MM alloy) coating offers approximately three times the corrosion resistance of pure zinc . PVC/PE extrusion coating (typically 1.0mm thick) provides an additional physical barrier against abrasion and chemical attack, ideal for high-pollution or saltwater exposure .




Galfan/PVC Coated Heavy-Duty Gabion Box – Extended Service Life for Coastal & Aggressive Environments



Structural Options: Available in both woven double-twist mesh (for maximum flexibility and settlement tolerance) and welded mesh (for projects requiring precise shape retention and minimal bulging) . Welded variants are suited for architectural applications or low-height walls with minimal differential settlement risk.




Specification of Gabion Basket:

Specification Item

Standard Specifications

Customizable Range

Wire Material

High-strength galvanized steel wire, PVC-coated steel wire, stainless steel wire, galfan (zinc-aluminum alloy) coated steel wire

All types of high-quality low-carbon steel wire as per requirements

Wire Diameter (Mesh Wire)

2.0mm, 2.4mm, 2.7mm, 3.2mm, 3.4mm

2.0mm - 4.0mm

Selvedge Wire Diameter

2.4mm, 2.7mm, 3.4mm, 4.0mm

2.4mm - 4.9mm (usually 0.5-1.0mm thicker than mesh wire)

Lacing Wire Diameter

2.2mm

2.0mm - 2.4mm

Mesh Size

60×80mm, 80×100mm, 100×120mm, 120×150mm

Customizable according to stone size and project needs

Gabion Box Size (L×W×H)

2×1×1m, 2×1×0.5m, 3×1×1m, 4×1×1m

Any size as per engineering requirements (tolerance ±5%)

Tensile Strength

350-550MPa

Adjustable according to project load requirements
  • Wire & Coating Specs: Mesh wire 2.0–4.0mm; Galfan coating weight ≥ 245 g/m²; PVC coating thickness 1.0mm (external diameter increases by ~2.0mm). Tensile strength ≥ 380 N/mm² .
    Target Projects: Coastal revetments, polluted river channel lining, landfill containment bunds, and any C4/C5 corrosion-class environment per EN ISO 12944.

  •

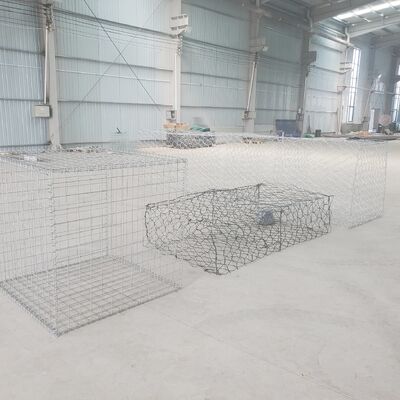

Product Show:

Galfan/PVC Coated Heavy-Duty Gabion Box – Extended Service Life for Coastal & Aggressive Environments Galfan/PVC Coated Heavy-Duty Gabion Box – Extended Service Life for Coastal & Aggressive Environments
Galfan/PVC Coated Heavy-Duty Gabion Box – Extended Service Life for Coastal & Aggressive Environments Galfan/PVC Coated Heavy-Duty Gabion Box – Extended Service Life for Coastal & Aggressive Environments




Our Factory:

Galfan/PVC Coated Heavy-Duty Gabion Box – Extended Service Life for Coastal & Aggressive Environments Galfan/PVC Coated Heavy-Duty Gabion Box – Extended Service Life for Coastal & Aggressive Environments


We have 10 production lines, daily output is 50000 square meter, can meet your different requirements, also have large stock with different size.



Ship & Load:

Galfan/PVC Coated Heavy-Duty Gabion Box – Extended Service Life for Coastal & Aggressive Environments Galfan/PVC Coated Heavy-Duty Gabion Box – Extended Service Life for Coastal & Aggressive Environments



Galfan/PVC Coated Heavy-Duty Gabion Box – Extended Service Life for Coastal & Aggressive Environments
