275g Zinc Coated Gabion Fence 2x1x1m EN 10223-8 Certified Gabion Wall for Riverbank Projects

Woven Gabion Fence 2x1x1m - 275g Zinc Coated Hexagonal Mesh for Riverbank and Slope Projects

This woven gabion fence is built on double-twist hexagonal mesh made from low-carbon steel wire, then hot-dip galvanized to a 275g/m2 zinc coating weight. That coating weight is the single most important number in gabion specification: it defines the corrosion budget of the whole structure for the next decades.

Specification Highlights

• Zinc coating: 275g/m2 (220-300g/m2 range available on request), salt spray tested
• Wire diameter: 2.7mm body wire / 3.4mm selvedge and edge wire
• Mesh aperture: 80x100mm hexagonal, 60x80mm and 100x120mm optional
• Basket size: 2x1x1m standard, 1x1x1m, 3x1x1m, 4x1x1m and 2x1x0.3m mattress available
• Design service life: 20-30 years in freshwater and inland soil conditions
• Tensile strength: 380-400 MPa, double twist joints do not unravel when a wire is cut

Certification and Compliance

Manufactured and tested to EN 10223-8 (hexagonal steel wire mesh gabions). CE declaration of performance and ISO 9001:2015 factory certificate are issued with every shipment. Third-party inspection (SGS, BV, Intertek) can be arranged before loading, and mill test certificates for wire and zinc coating are provided as standard documents for tender submission.

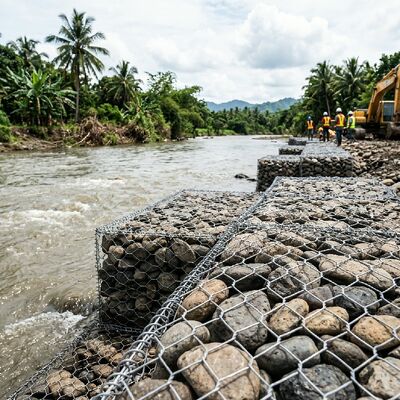

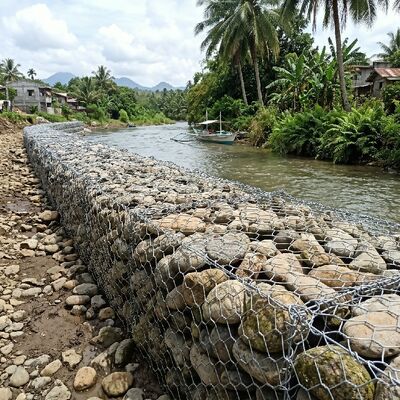

Why Woven Mesh for Riverbank Work

The double-twist hexagonal structure is flexible. It tolerates uneven settlement, scour and water pressure without cracking, and it is fully permeable, so hydrostatic pressure never builds up behind the structure. Vegetation establishes in the stone voids within two seasons, which is why this construction scores well on public-sector environmental assessment.

Project Supply and Delivery

• Factory direct supply, no trading margin: 20ft container holds about 1,200-1,500 sqm of flat-packed panels
• Monthly capacity above 30,000 sqm, able to support multi-stage infrastructure schedules
• Flat-packed bundles with helical binding wire, lacing wire and corner stiffeners included in every bundle
• 15-20 days production lead time, 7 days for repeat stock sizes

Warranty

10-year written warranty on zinc coating integrity under normal inland exposure. Project-specific 20-30 year material guarantees are available when the coat weight and water chemistry are confirmed at the quotation stage.

Send us your drawing, water condition and target coating weight, and we will return a priced take-off within 24 hours.
