Factory Direct & Fast Shipping philippine used 3.05mm / 2*1*1m / 80*100mm Gabion Mesh Cage for Sale

Factory Direct & Fast Shipping philippine used 3.05mm / 2*1*1m / 80*100mm Gabion Mesh Cage for Sale
Factory Direct & Fast Shipping philippine used 3.05mm / 2*1*1m / 80*100mm Gabion Mesh Cage for Sale

Large Image :  Factory Direct & Fast Shipping philippine used 3.05mm / 2*1*1m / 80*100mm Gabion Mesh Cage for Sale

Product Details:
Place of Origin: CHIAN
Brand Name: KN
Certification: ISO, CE, COC, CO
Model Number: KN211
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiate
Packaging Details: In Bundle for Container, LCL shipping will use Pallet
Delivery Time: 5-8 working days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 30000 square meter per 7 days
Contact Now Chat Now
Detailed Product Description
Product Name: Hexagonal Wire Mesh With 80*100mm Mesh For Gabion Retaining Wall Key Word: Gabion Basket
Material: Galvanized Iron Wire,Low-Carbon Iron Wire,pvc Wire, Galfan Wire Hole Shape: Hexagonal, Double Twist
Wire Gauge: 2.4mm, 2.5mm, 2.7mm, 2.8mm, 3.05mm Application: Gabions,Cages,slope Protection,Fence Mesh,Construction Wire Mesh
Type: Hexagonal Wire Mesh, Double Twist Aperture: 80*100mm,100*120mm,60*80mm,etc,
Surface Treatment: Hot Dipped Galvanized, PVCcoated, Galvanized+PVC Coated Color: Green,black,
Packing: Pallet,Bundle Sample: Free
Highlight:

Philippine used gabion mesh cage

,

3.05mm gabion mesh cage

,

80x100mm gabion mesh cage

Factory Direct & Fast Shipping philippine used 3.05mm / 2*1*1m / 80*100mm Gabion Mesh Cage for Sale

Marine Grade Gabion Mesh Cage — Built to Conquer the Philippine Coastline

"Ordinary Gabions Rust. Ours Survive the Sea."

Every year, thousands of gabion structures fail along the Philippine coastline — not from waves, but from corrosion. In a country surrounded by seawater, with 36,000+ km of coastline and relentless salt-laden monsoon winds, standard galvanized wire simply doesn't stand a chance.
We engineered this High Zinc Coated Gabion Mesh Cage specifically for land reclamation and coastal protection projects in the Philippines — where the sea is your biggest competitor.

⚡ The Problem We Solved

表格


❌ Ordinary Gabion ✅ Our Marine Grade Gabion
40–60g/m² low zinc coating 240–265g/m² high zinc coating — 4× the protection
Rust appears within 2–3 years in saltwater 20+ years service life in coastal environments
Wire breaks, cages collapse, stones spill Heavy-duty 2.2mm wire resists wave impact & deformation
Frequent replacement = project cost blowout Install once. Walk away for decades.

Factory Direct & Fast Shipping philippine used 3.05mm / 2*1*1m / 80*100mm Gabion Mesh Cage for Sale


Common Gaboin Basket Size :

Gabion Basket Size Notes
Length (M) Width(M) Height(M) Diaphragm CBM (m³)
1 1 1 0 1
2 1 1 1 2
3 1 1 2 3
4 1 1 3 4
5 1 1 4 5
6 1 1 5 6
Other Size Accept Customized


Gabion Mattress Size Notes
Length (M) Width(M) Height(M) Diaphragm CBM (m³)
1 1 0.3/0.5 0 0.3/0.5
2 1 0.3/0.5 1 0.6/1
3 1 0.3/0.5 2 0.9/1.5
4 1 0.3/0.5 3 1.2/2
5 2 0.3/0.5 4 3/5
6 2 0.3/0.5 5 3.6/6
Other Size Accept Customized

Product Usage:

  • Erosion Control: Woven gabion mesh is frequently used to stabilize slopes and riverbanks, effectively preventing soil erosion by holding back loose earth and allowing for proper water drainage.

  • Retaining Walls: This mesh is ideal for constructing retaining walls that not only secure hillside soil but also add an aesthetic, natural look to landscapes, making it popular in both residential and commercial projects.

  • Flood Protection: In areas prone to heavy rainfall or flooding, woven gabion mesh forms durable barriers that can divert water flow, thereby reducing the risk of flood damage and protecting nearby infrastructure.

  • Coastal Defense: The mesh is used along shorelines to stabilize sandy beaches and cliffs, mitigating the effects of wave action and protecting coastal properties from erosion.

  • Road and Highway Embankments: Woven gabion mesh can reinforce road embankments by retaining soil and reducing the likelihood of landslides, ensuring the long-term stability of transportation routes.

  • Bridge Abutments and Foundations: In bridge construction, the mesh is applied to strengthen abutments and support foundations, offering a cost-effective solution for reinforcing structural integrity.

Gabion Basket Technical Data as Followed:

Technical Data List
Parameter Description Typical Value / Range
Material Base material used for constructing the mesh HDP/Galvanized Wire, PVC Wire
Coating Surface treatment for enhanced corrosion resistance Galvanized, HDP Galvanized, PVC Coated
Wire Diameter The thickness of the wires used in the mesh

Mesh Wire: 2.0~3.05mm

Selvage Wire: 2.4~4.0mm

Tie Wire: 2.0~2.4mm
Mesh Opening Size The size of the openings between wires, determining the size of stones that can be contained

60*80mm, 80*100mm, 100*120mm,120*150mm
Overall Dimensions Standard Gabion Roll and Gabion Basket Size

Gabion Roll Width: 1~4m

Gabion Basket: 1*1*1m,2*1*1m,3*1*1m,4*1*1m,,5*1*1m,6*1*1m,
Lifespan Expected service life under normal installation and maintenance conditions

Generally 6~20 years, depends on environment.

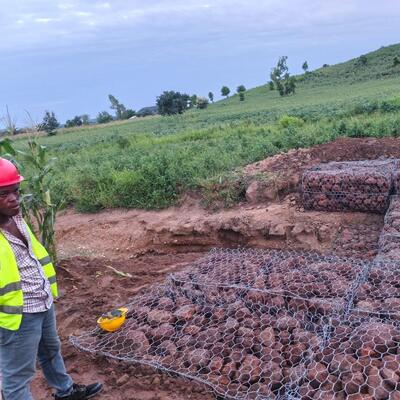

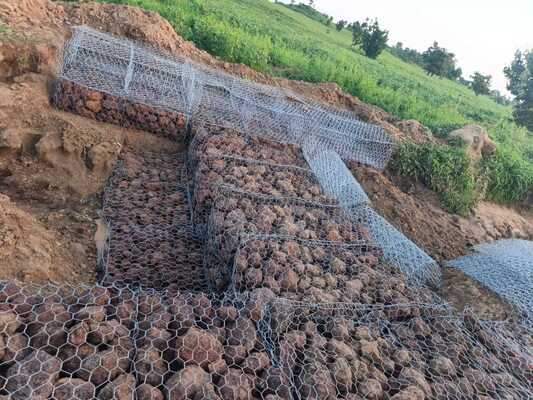

Project Site Picture Show:

Factory Direct & Fast Shipping philippine used 3.05mm / 2*1*1m / 80*100mm Gabion Mesh Cage for Sale

Factory Direct & Fast Shipping philippine used 3.05mm / 2*1*1m / 80*100mm Gabion Mesh Cage for Sale

Factory overall display:

Factory Direct & Fast Shipping philippine used 3.05mm / 2*1*1m / 80*100mm Gabion Mesh Cage for Sale

Factory Direct & Fast Shipping philippine used 3.05mm / 2*1*1m / 80*100mm Gabion Mesh Cage for Sale
