Durability Customized 6*2*0.3m / 2.2mm Gabion Retaining Wall For Water Conservancy & River Regulation

Durability Customized 6*2*0.3m / 2.2mm Gabion Retaining Wall For Water Conservancy & River Regulation

Why This Gabion Wall Excels in Engineering Projects

1. Built for Water Conservancy & River Regulation

• Permeable by design — eliminates hydrostatic pressure buildup behind the wall, a leading cause of conventional retaining wall failure
• Scour protection — shields riverbanks, embankments, and bridge abutments from high-velocity flow and wave action
• Self-draining structure — maintains stability even during prolonged flooding or rapid water level changes

2. Engineered Durability

• 2.2mm wire diameter provides superior load-bearing capacity and deformation resistance
• Hot-dip galvanization (or Galfan coating) delivers 2–3× longer service life than standard galvanized wire in wet environments
• Resistant to corrosion, UV degradation, and freeze-thaw cycles

3. Flexibility Without Failure

• Flexible mesh structure conforms to ground settlement and seismic movement — no cracking, no sudden collapse
• Ideal for soft soil foundations and areas with differential settlement

4. Cost-Effective Construction

• No heavy machinery required — panels are assembled by hand on site
• Uses locally sourced stone fill, reducing material transport costs by up to 60%
• Fast installation: a skilled crew can build 20–30 m² of wall per day
• Low maintenance — damaged units can be repaired locally without dismantling the entire wall

Application Scenarios

• Riverbank and canal revetment
• Coastal & harbor protection
• Dam and reservoir protection
• Bridge abutment protection
• Slope stabilization & retaining walls
• Flood control embankments
• Scour protection around bridge piers
• Channel lining and culvert headwalls

Installation Guide (Summary)

1. Prepare the foundation — level and compact the base surface
2. Assemble the cage — unfold panels and fasten with spiral binders or C-rings
3. Position the gabion — place in alignment with adjacent units
4. Fill with stone — fill in layers (about 1/3 height at a time), hand-pack firmly
5. Close the lid — secure lid edges with lacing wire or binders
6. Continue upward courses — connect layers with binding wire for a monolithic structure

Quality Standards

• Manufactured in compliance with EN 10223-3 / ASTM A975
• ISO 9001 certified production
• Third-party inspection (SGS/BV) available upon request
• Full test reports: coating thickness, tensile strength, corrosion resistance (salt spray test)

Packaging & Delivery

• Packing: Folded and bundled with steel straps; nude packing or palletized as required
• Loading: Approx. 11000 Square Meter per 20GP container (depending on wire diameter)
• Lead Time: 7 days after deposit
• Payment Terms: T/T 30% deposit, balance against B/L copy;

Product Usage:

• Erosion Control: Woven gabion mesh is frequently used to stabilize slopes and riverbanks, effectively preventing soil erosion by holding back loose earth and allowing for proper water drainage.

• Retaining Walls: This mesh is ideal for constructing retaining walls that not only secure hillside soil but also add an aesthetic, natural look to landscapes, making it popular in both residential and commercial projects.

• Flood Protection: In areas prone to heavy rainfall or flooding, woven gabion mesh forms durable barriers that can divert water flow, thereby reducing the risk of flood damage and protecting nearby infrastructure.

• Coastal Defense: The mesh is used along shorelines to stabilize sandy beaches and cliffs, mitigating the effects of wave action and protecting coastal properties from erosion.

• Road and Highway Embankments: Woven gabion mesh can reinforce road embankments by retaining soil and reducing the likelihood of landslides, ensuring the long-term stability of transportation routes.

• Bridge Abutments and Foundations: In bridge construction, the mesh is applied to strengthen abutments and support foundations, offering a cost-effective solution for reinforcing structural integrity.

Gabion Basket Technical Data as Followed:

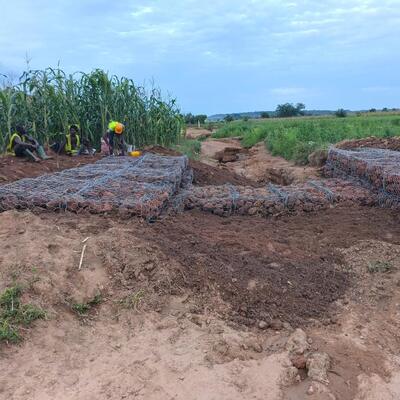

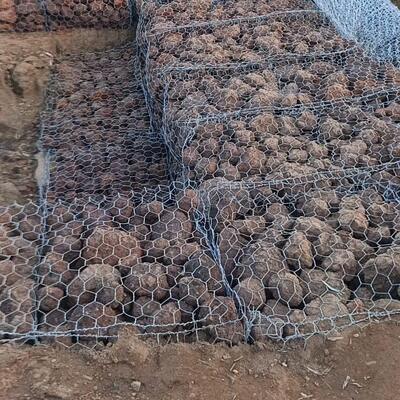

Project Site Picture Show:

Factory overall display:

package & loading:
