Galfan Gabion Retaining Wall, Heavy Duty Double Twist Hexagonal Gabion Basket For River Bank Slope Flood Protection

Galfan Gabion Retaining Wall, Heavy Duty Double Twist Hexagonal Gabion Basket For River Bank Slope Flood Protection
Galfan Gabion Retaining Wall, Heavy Duty Double Twist Hexagonal Gabion Basket For River Bank Slope Flood Protection

Large Image :  Galfan Gabion Retaining Wall, Heavy Duty Double Twist Hexagonal Gabion Basket For River Bank Slope Flood Protection

Product Details:
Place of Origin: China
Brand Name: KN
Certification: ISO CE
Model Number: KN-G06
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: USD 1.68-2.98/ ㎡
Packaging Details: Customize
Delivery Time: 7-15 days
Payment Terms: L/C,T/T
Supply Ability: 300000 ㎡/ month
Contact Now Chat Now
Detailed Product Description
Product Name: Gabion Basket Wire Diameter: 2.2-3.7mm,customized
Mesh Hole: 6*8cm,8*10cm,10*12cm... Size: 1*1*1m,2*1*1m,3*1*1m,...customized
Material: Q195 Steel Wire Delivery Time: Witntin 7 Days
Surface Treatment: Galfan Alloy Anti-corrosion Treatment Key Words: Gabion Stone Cage
Highlight:

Galfan gabion retaining wall

,

Heavy duty hexagonal gabion basket

,

Gabion basket for flood protection

Galfan Gabion Retaining Wall, Heavy Duty Double Twist Hexagonal Gabion Basket For River Bank Slope Flood Protection

Product Description

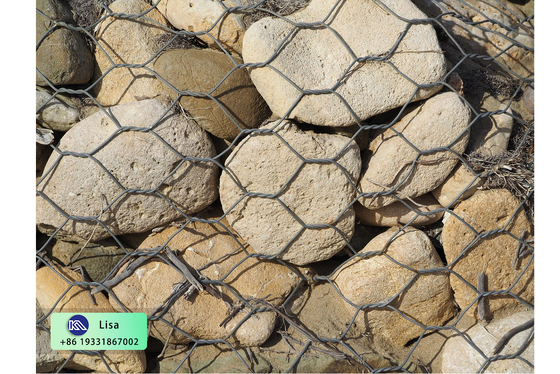

This heavy-duty Galfan gabion retaining wall is professionally engineered for civil engineering, river regulation, slope stabilization and flood control projects. Adopting premium zinc-aluminum alloy (Galfan) coated low-carbon steel wire and double-twist hexagonal weaving technology, the gabion cage features excellent tensile strength, structural stability and long-term corrosion resistance even in harsh outdoor environments.
Different from ordinary welded mesh products, the integral double-twist structure ensures the gabion wall will not collapse or scatter even if individual wires are damaged, providing reliable anti-scour and anti-deformation performance. The permeable stone-filled structure effectively releases water pressure, avoids wall cracking caused by hydrostatic force, and creates an ecological growth environment for vegetation, realizing perfect integration of structural protection and ecological restoration.

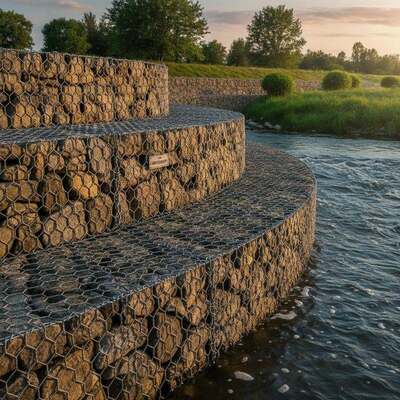

Pre-fabricated modular design allows fast on-site assembly without professional equipment or complex construction procedures. Widely applicable for riverbank reinforcement, reservoir protection, highway and railway slope retaining, mountain landslide prevention and municipal water conservancy projects. Custom mesh sizes, wire diameters and box dimensions are available to meet diverse engineering construction standards.

Galfan Gabion Retaining Wall, Heavy Duty Double Twist Hexagonal Gabion Basket For River Bank Slope Flood Protection


Product details

Aperture
6x8 8x10 10x12 12x15 cm
Mesh Wire diameter(SWG)
8- 12 -14 Gauge
Selvedge wire(SWG)
8- 11 -13 Gauge
Lacing wire(SWG)
Commonly 13 Gauge
Color
Darkgreen, gray ,black , etc.
Material
Galvanized wire ,galfan wire and PVC coated wire
Common size
2m x 1m x 1m,
3m x 1m x 1m,
4m x 1m x 1m,
2m x 1m x 0.5m,
4m x 1m x 0.5m,
Weight
1.57kg/m2
Packing
1. compacted before packaging.
2. Plastic packaging outside and on the pallet.
3. 20'container can contain more than 8,000 square meters.
40' container can contain more than 15,000 square meters
Feature
Strong structure and corrosion-resistance to protect the dam and riverbank
Application
Control and guide of water or flood
Preventing of rock breaking

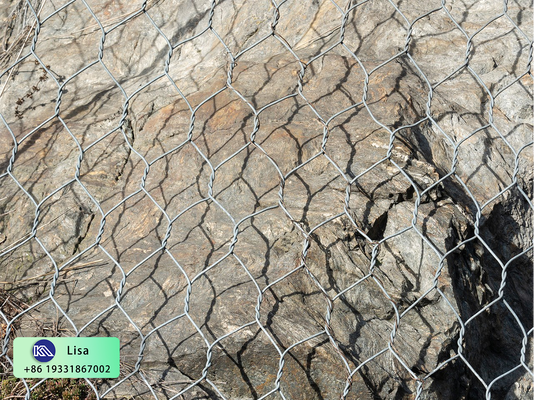

Rock fall protection
Water and soil protection
Bridge prot

Galfan Gabion Retaining Wall, Heavy Duty Double Twist Hexagonal Gabion Basket For River Bank Slope Flood Protection


Product Application&Advantages

1. Flexible structure to adapt to foundation settlement without cracking
2. Excellent water permeability to release hydrostatic pressure effectively
3. Eco-friendly design, gaps between stones allow vegetation growth
4. High anti-scour performance for riverbank and slope protection
5. Double-twist woven mesh, the cage will not collapse if single wire breaks

Galfan Gabion Retaining Wall, Heavy Duty Double Twist Hexagonal Gabion Basket For River Bank Slope Flood Protection

Galfan Gabion Retaining Wall, Heavy Duty Double Twist Hexagonal Gabion Basket For River Bank Slope Flood Protection
