Heavy Galvanized Gabion Basket for Retaining Walls | ASTM A975 Standard

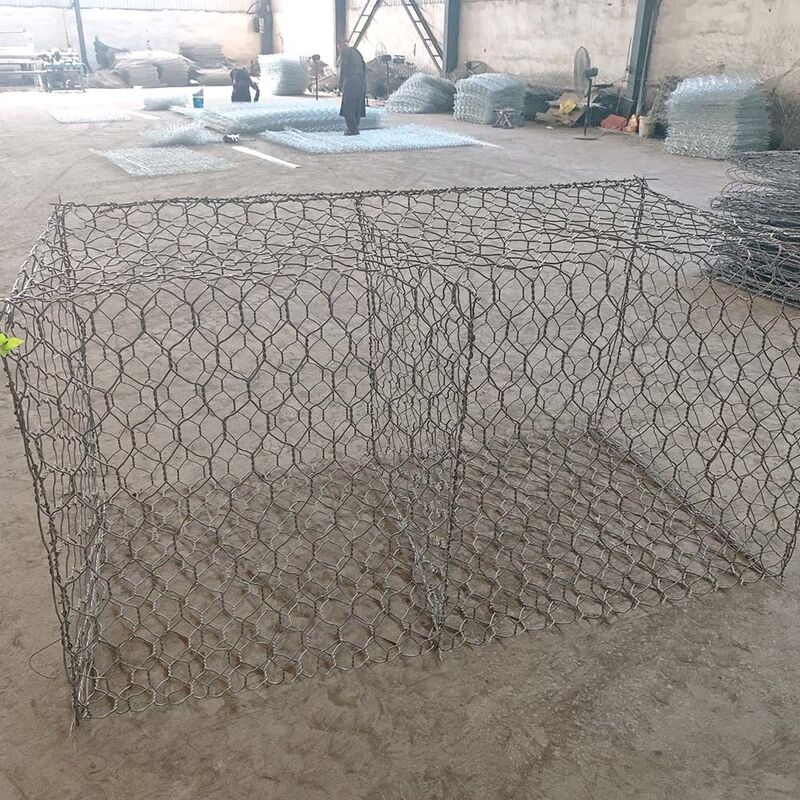

Large Image : Heavy Galvanized Gabion Basket for Retaining Walls | ASTM A975 Standard

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	gabion cages

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 15-17
Packaging Details:	pallet
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union,
Supply Ability:	500 pc per day

Contact Now Chat Now

Detailed Product Description

Product Name:	Heavy Galvanized Gabion Basket For Retaining Walls \| ASTM A975 Standard	Key Words:	Gabion Basket
Lacing_Wire:	2.2mm	Gabion Basket Size:	111m, 211m, 311m, 411m
Application:	Erosion Control, Retaining Walls, Landscaping, Etc.	Aperture:	80×100mm
Pvc Color:	Dark Green, Grey	Twist:	Double Twisting
Highlight:	heavy galvanized gabion basket , gabion basket for retaining walls , ASTM A975 gabion basket

Heavy Galvanized Gabion Basket for Retaining Walls | ASTM A975 Standard

Engineered for heavy-duty earth retention, hydraulic erosion control, and soil stabilization, these heavy galvanized gabion baskets are fabricated from high-tensile, double-twisted hexagonal woven wire mesh. Fully compliant with ASTM A975 specifications, they provide a monolithic, flexible, and free-draining gravity retaining structure designed for long-term geotechnical performance.

Technical Specifications

Parameter	Standard Specification (ASTM A975)
Mesh Type	Double-twisted hexagonal mesh (Type 8x10 / 80x100 mm)
Mesh Wire Diameter	2.7 mm / 3.0 mm (Galvanized core)
Selvedge Wire Diameter	3.4 mm / 3.9 mm
Lacing / Tie Wire	2.2 mm
Zinc Coating Weight	Class 3 / Heavy Galvanized ( $ge$ 245–275 g/m² per ASTM A641)
Tensile Strength	350 – 500 MPa (Soft temper wire per ASTM A641)
Elongation	$ge$ 12% before fabrication
Diaphragm Spacing	Internal partitions every 1 meter for structural integrity
Standard Dimensions	2x1x1 m, 3x1x1 m, 4x1x1 m, 2x1x0.5 m, 1.5x1x1 m (Custom available)

Key Engineering Advantages

Structural Flexibility: The double-twisted woven structure absorbs differential soil settlement without fracture or loss of structural integrity, outperforming rigid concrete retaining systems.
Natural Drainage & Permeability: High voids ratio eliminates hydrostatic pressure buildup behind the wall, preventing water-logging and reducing the need for complex auxiliary drainage pipes.
Corrosion Resistance: Heavy hot-dip zinc coating ensures cathodic protection in aggressive soil and freshwater environments, yielding an extended service life exceeding 25–50 years.
Non-Raveling Construction: The double-twist mechanical lock ensures that individual wire cuts or breaks do not unravel the surrounding mesh panel.
Environmental Integration: Promotes natural vegetation growth over time as soil deposits settle into the rock matrix, creating a bio-engineered, aesthetically blending green wall.

Primary Applications

Gravity & Reinforced Retaining Walls: Roadway cutting stabilization, railway embankments, and commercial property earth retention.
Channel Linings & Riverbank Protection: High-velocity hydraulic revetments and scour protection.
Bridge Abutments & Culvert Wing Walls: Load-distributing flexible footings around civil infrastructure.
Perimeter Defense & Noise Barriers: Heavy-duty physical security perimeters and rockfall mitigation.

Packaging & Assembly

Delivery Condition: Folded flat and bundled into compact export bales (50–100 units/pallet) to optimize container loading.
Assembly Accessories: Supplied with pre-calculated spools of heavy galvanized lacing wire or C-rings (pneumatic fastening compatible) exceeding ASTM tensile requirements.
