Woven Mesh Gabion Baskets – Riverbank & Slope Erosion Control

Large Image : Woven Mesh Gabion Baskets – Riverbank & Slope Erosion Control

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	gabion cages

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 15-17
Packaging Details:	pallet
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union,
Supply Ability:	500 pc per day

Contact Now Chat Now

Detailed Product Description

Product Name:	Woven Mesh Gabion Baskets – Riverbank & Slope Erosion Control	Key Words:	Gabion Basket
Lacing_Wire:	2.2mm	Gabion Basket Size:	111m, 211m, 311m, 411m
Application:	Erosion Control, Retaining Walls, Landscaping, Etc.	Zinc Coating:	≥ 240g/m²
Aperture:	80×100mm	Hole Shape:	Hexagonal
Highlight:	woven mesh gabion baskets for erosion control , gabion baskets for riverbank stabilization , slope erosion control gabion baskets

Woven Mesh Gabion Baskets – Riverbank & Slope Erosion Control

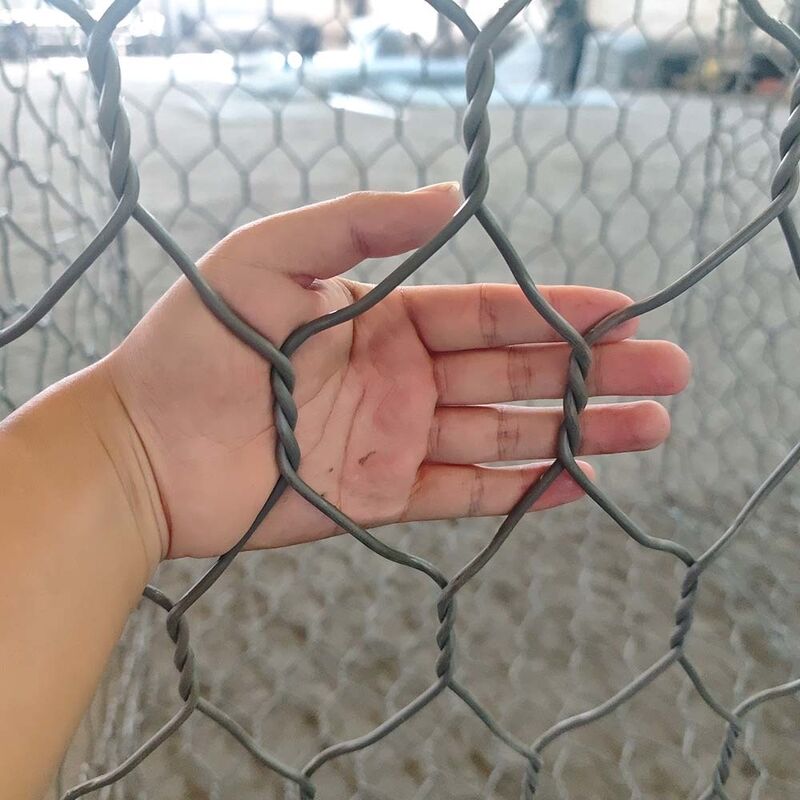

Woven Mesh Gabion Baskets are engineered double-twisted hexagonal wire mesh containers filled with natural stone at the project site. Designed specifically for river training, hydraulic structures, and slope stabilization, this flexible monolithic system delivers robust erosion protection while supporting natural vegetation growth and hydraulic dissipation.

Key Technical Specifications

Parameter	Specification Options
Mesh Type	Double-twisted hexagonal woven mesh (8×10 cm / 6×8 cm / 10×12 cm)
Wire Diameter	Mesh wire: 2.0 mm – 3.0 mm; Selvedge wire: 3.0 mm – 4.0 mm; Lacing wire: 2.2 mm
Coating Options	Heavy Galvanized (Zinc), Galfan / Zinc-5% Al-MM Alloy, Heavy Galv / Galfan + PVC/PE Coated
Tensile Strength	350 – 550 N/mm² (Conforms to standard structural wire ratings)
Standard Dimensions	2×1×1 m, 3×1×1 m, 4×1×1 m, 2×1×0.5 m, 1.5×1×1 m (Customized sizes available)
Diaphragms	Partitioned into 1m cells with internal wire diaphragms to prevent rock shifting
Compliance Standards	ASTM A975, EN 10223-3, ISO 9001

Core Engineering Advantages

Structural Flexibility: The double-twisted woven design accommodates uneven ground settlement without cracking or structural rupture, preserving continuous contact with the underlying subgrade.
High Hydraulic Permeability: Eliminates hydrostatic pressure buildup behind the structure. Water flows freely through the rock fill while retaining soil particles and preventing piping failure.
Long-Term Corrosion Resistance: High-grade zinc or Galfan coatings—supplemented by an extruded polymer (PVC/PA) jacket for marine and aggressive soil environments—ensure decades of service life.
Ecological Integration: Over time, sediment naturally settles into the voids, promoting root development and blending the retaining structure seamlessly into the surrounding riparian environment.
Cost-Effective Installation: Delivered flat-packed to minimize transport volume. Assemblies require only manual or mechanical filling with local stone and simple lacing/C-ring fastening.

Primary Applications

Riverbank & Channel Stabilization: Protects shorelines from high-velocity scouring, wave impact, and dynamic hydraulic forces.
Slope & Soil Erosion Control: Retaining walls and revetments for cut-slopes, highway embankments, and landslide-prone terrain.
Bridge Pier & Culvert Protection: Forms protective aprons against localized scour around bridge abutments and stormwater outfalls.
Coastal Defense & Ports: Seawall reinforcements, breakwaters, and groins engineered for saline and tidal splash zones (PVC-coated grade).
