Galvanized Double-twisted Hexagonal Woven Gabion Basket For Retaining Walls
Galvanized double‑twisted hexagonal woven gabion basket is a flexible stone‑filled wire cage widely used for retaining walls, slope stabilization, river bank protection and erosion control works.
Made of high‑tensile low carbon steel wire with hot‑dip galvanized coating, this gabion box uses double‑twist hexagonal weaving technique. The double twist structure locks every mesh intersection, preventing wire loosening or breaking under pressure, impact and ground settlement. Built‑in diaphragms strengthen each cell, ensuring uniform stone filling and stable retaining wall performance.
Unlike rigid concrete retaining walls, hexagonal woven gabion baskets are permeable. Water can pass through the stone fill to release hydrostatic pressure, reduce wall damage caused by water accumulation. Flexible structure adapts to minor ground movement without cracking, extending service life for outdoor civil and landscape projects.
Main Features:
✔ Hot‑dip galvanized steel wire for anti‑corrosion, anti‑rust for long outdoor service
✔ Double‑twisted hexagonal woven mesh, joints will not untwist under heavy load
✔ High tensile strength, resist impact, soil pressure and ground deformation
✔ Permeable structure: drain water naturally, lower hydrostatic pressure for retaining walls
✔ Flexible design: tolerates slight ground shifting, no easy crack
✔ Equipped with reinforcing selvedge wire and internal diaphragms
✔ Customizable size, mesh opening, wire diameter and surface coating
✔ Easy on‑site assembly, simply fill with local stones, no complex equipment
✔ Eco‑friendly: vegetation can grow inside stones for landscape integration.
Specification of Gabion Basket:
|
Specification Item
|
Standard Specifications
|
Customizable Range
|
|
Wire Material
|
High-strength galvanized steel wire, PVC-coated steel wire, stainless steel wire, galfan (zinc-aluminum alloy) coated steel wire
|
All types of high-quality low-carbon steel wire as per requirements
|
|
Wire Diameter (Mesh Wire)
|
2.0mm, 2.4mm, 2.7mm, 3.2mm, 3.4mm
|
2.0mm - 4.0mm
|
|
Selvedge Wire Diameter
|
2.4mm, 2.7mm, 3.4mm, 4.0mm
|
2.4mm - 4.9mm (usually 0.5-1.0mm thicker than mesh wire)
|
|
Lacing Wire Diameter
|
2.2mm
|
2.0mm - 2.4mm
|
|
Mesh Size
|
60×80mm, 80×100mm, 100×120mm, 120×150mm
|
Customizable according to stone size and project needs
|
|
Gabion Box Size (L×W×H)
|
2×1×1m, 2×1×0.5m, 3×1×1m, 4×1×1m
|
Any size as per engineering requirements (tolerance ±5%)
|
|
Tensile Strength
|
350-550MPa
|
Adjustable according to project load requirements
|
We also accept customized size, such as 3*2*1m, 6*2*1m ect.
-
Erosion control and slope stabilization
Gabion boxes are widely used to reinforce riverbanks, hillsides, and embankments. They prevent soil erosion caused by water flow and rainfall, and stabilize unstable slopes to avoid landslides.
-
Flood control and hydraulic engineering
They are applied in dams, drainage channels, and flood walls. The sturdy structure can resist strong water impact, protect shorelines during floods, and regulate water flow effectively.
-
Retaining walls and landscaping
Gabion retaining walls support terraced land, roadbeds, and garden landscapes. They are also used in decorative landscaping for parks, residential areas, and public spaces due to their natural, rustic appearance.
-
Road and railway construction
In infrastructure projects, gabion nets protect road and railway subgrades, stabilize bridge foundations, and reduce damage from soil displacement or water erosion.
-
-
Along coastlines and lakeshores, gabion structures defend against waves and tides, reducing coastal erosion and protecting coastal buildings and ecological environments
Hebei KN Wire Mesh Co., Ltd. Can can provide you with more reasonable design solutions and the highest quality products.
As a professional manufacturer of gabion basket, Our company has rich experience in R&D, production and sales, focusing on providing customers with high-quality gabion boxes and other wire mesh products. Following our commitment to reasonable design and premium quality, we hereby introduce our core products and services in detail:
-
Sturdy Structure: The wire mesh is double twisted, with uniform mesh size and strong tensile strength. The edge of the gabion box is reinforced by thickened wire, which is not easy to deform or break even under strong impact.
-
Customizable Design: According to your specific project needs (such as size, mesh size, material, and application scenario), we can provide personalized design solutions to perfectly match your engineering requirements and save costs.
-
Easy Installation: The gabion boxes are prefabricated in the factory, which can be quickly assembled on site without complex construction equipment, greatly improving construction efficiency and reducing construction

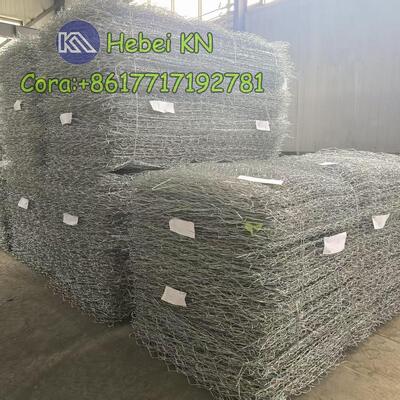

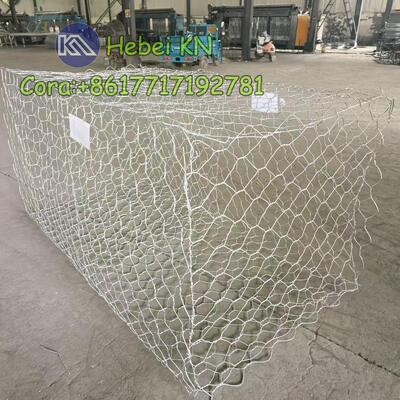

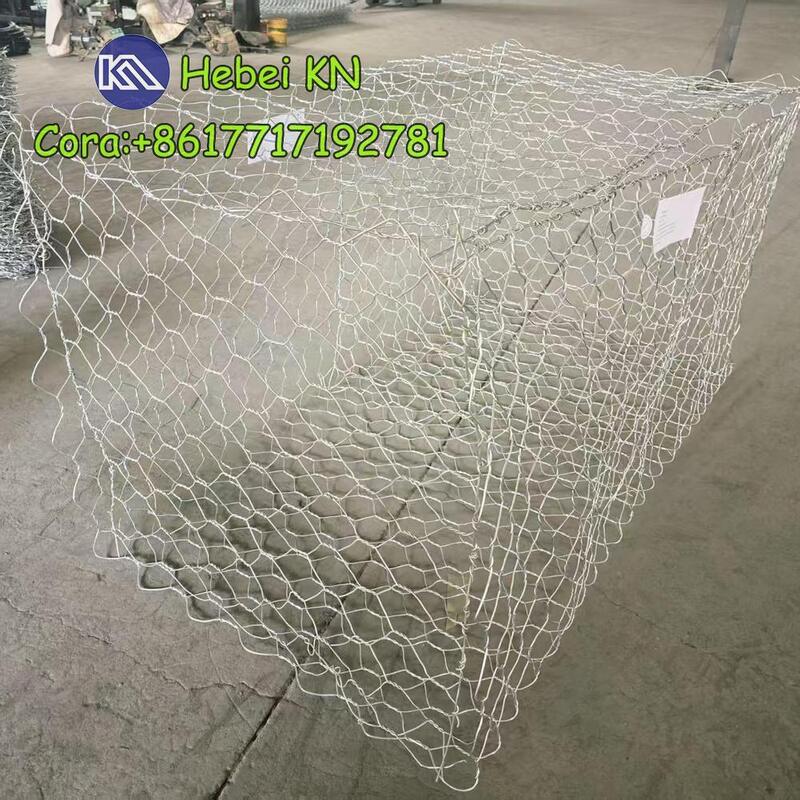

Product Show:
Our Factory:
We have 10 production lines, daily output is 50000 square meter, can meet your different requirements, also have large stock with different size.
