PVC Coated Anti-Corrosion Gabion Wire Mesh Box For Slope Stabilization Retaining Wall

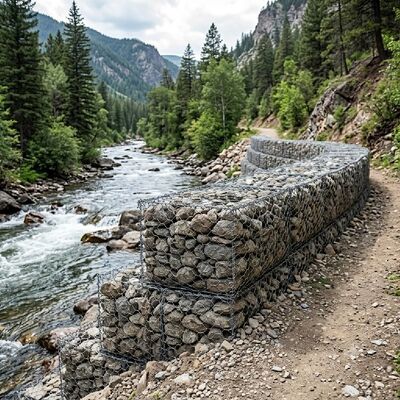

Large Image : PVC Coated Anti-Corrosion Gabion Wire Mesh Box For Slope Stabilization Retaining Wall

Product Details:

Place of Origin:	CHINA
Brand Name:	KN Gabion Wire Mesh
Certification:	ISO CE
Model Number:	3X1X1

Payment & Shipping Terms:

Minimum Order Quantity:	100pc Gabion Retaining Wall
Price:	USD 12-17
Packaging Details:	pallets
Delivery Time:	7-8 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000mw per day

Contact Now Chat Now

Detailed Product Description

Surface Treatment:	Hot-dipped Galvanized	Zinc Coating:	≥ 240g/m²
Size:	2m X 1m X 1m Gabion Wire Mesh	Application:	Erosion Control, Retaining Walls, Landscaping
Elongation:	≥ 10%	Wire Diameter:	3.0mm
Material:	Galvanized Steel Wire	Durability:	Long-lasting
Tensile Strength:	350-500N/mm²	Mesh Size:	50mm X 50mm
Key Word:	Gabion Retaining Wall	Connectors:	C Rings
Assembly Method:	Spiral Binding	Package:	Pallet Or In Bulk
Highlight:	PVC coated gabion wire mesh box , anti-corrosion gabion retaining wall , slope stabilization gabion mesh box

PVC Coated Anti-Corrosion Gabion Wire Mesh Box For Slope Stabilization Retaining Wall

Woven Gabion Cages for Hydraulic Infrastructure

Rugged steel wire baskets filled with local stone or recycled concrete. Top benefits: fast assembly, no foundation needed, and 50+ year lifespan

Low carbon steel wire, zinc plated wire, zinc aluminum alloy wire,
whether the surface is coated with PVC or PE
The wire diameter is generally 2.7mm, 2.5mm, 2.2mm, 2.0mm,etc.

Three Surface Finishes
Electro Galvanized Gabion Mesh
Low cost, only for short-term dry landscape projects with limited service life.
Hot Dipped Galvanized Gabion Mesh
Medium anti-rust capacity, ideal for inland slope and road engineering.
Zinc-Al Alloy (Galfan) + PVC Coated Gabion Mesh
Top-grade anti-corrosion performance, perfect for riversides, coastal and saline humid areas with over 50 years service life.

Item	Available Options
Wire Diameter	2.0mm, 2.2mm, 2.4mm, 2.7mm, 3.0mm, 3.2mm, 4.0mm
Mesh Opening	60×80mm, 80×100mm, 100×120mm, 120×150mm
Gabion Box Dimension	1×0.5×0.5m, 2×1×0.5m, 3×1×0.5m, 4×1×1m, fully customized
Edge Wire	Reinforced thicker wire on box edges to prevent breakage
Weaving Type	Double twisted hexagonal woven mesh
Surface Coating	Electro galvanized / Hot dipped galvanized / Galfan / PVC coated

Application Scenarios

River & Flood Control Projects

Riverbank reinforcement, channel renovation, dam protection, flood dyke construction.
Highway & Railway Slope Stabilization

Roadside retaining walls, mountain rockfall prevention, embankment reinforcement.
Landscape & Garden Decoration

Villa exterior walls, garden partition fences, landscape benches, park decorative structures.
Municipal & Coastal Hydraulic Works

Water conservancy construction, isolation for sediment tanks, coastal erosion prevention.
