Zinc Aluminum Alloy Gabion Wire Mesh For Flood Control Dam Construction

Large Image : Zinc Aluminum Alloy Gabion Wire Mesh For Flood Control Dam Construction

Product Details:

Place of Origin:	China
Brand Name:	KN
Certification:	ISO CE
Model Number:	KN-Gabion Wire Mesh

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	USD 12-17
Packaging Details:	Wooden pallets
Delivery Time:	7 days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	3000000 pcs/ month Gabion Wall

Contact Now Chat Now

Detailed Product Description

Product Name:	Gabion Wire Mesh	Aperture:	6080;80100;100*120;...
Wire Diameter:	2.0-2.7mm	Material:	Q 195 Steel Wire
Assembly:	Easily Assembled	Key Words:	Heavy Duty Galvanized Gabion Retaining Wall System
Highlight:	zinc aluminum alloy gabion wire mesh , gabion wire mesh for flood control , dam construction gabion wire mesh

Zinc Aluminum Alloy Gabion Wire Mesh For Flood Control Dam Construction

Product Description

Gabion wire mesh is a kind of double twisted hexagonal metal wire netting, made of high-quality low carbon steel wire. We adopt hot dipped galvanized, zinc-al alloy or PVC coated surface treatment for strong anti-rust performance.

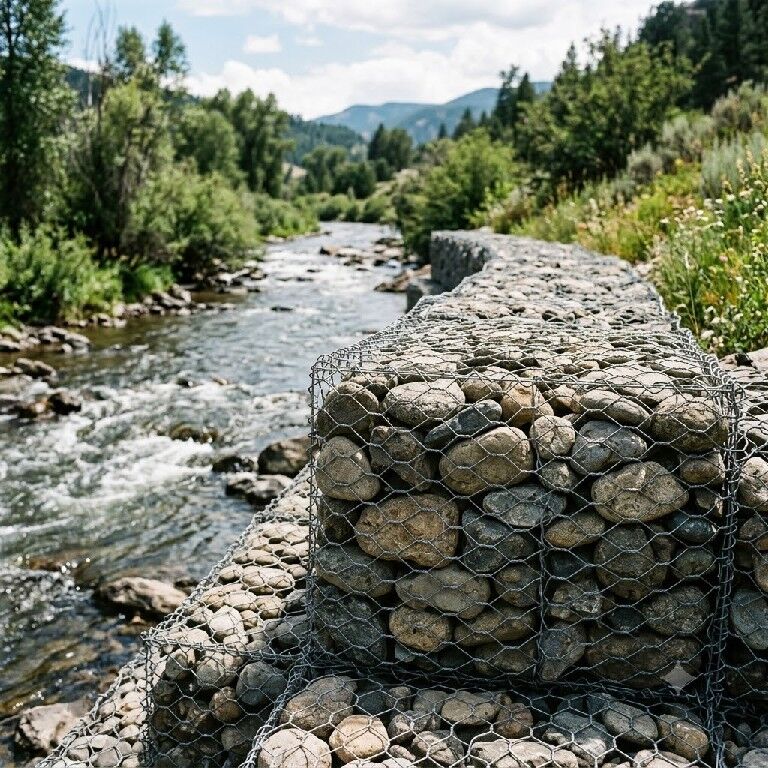

After filling with stones, the gabion cages form flexible, permeable, stable retaining structures. Widely used in flood control, river regulation, slope stabilization, road & dam construction, garden landscape decoration.

Our gabion mesh features uniform mesh opening, tight twisting, no loose wire, high tensile strength and long service life. Custom sizes, wire gauges and coatings are available.

<img alt="" data-cke-saved-src=" <div class=" src=" <div class=" pd-subheading"="">Specifications

Product Name	Welded Gabion Box/Hexagonal Gabion Box
Material	Galvanized Steel Wire, Galfan Steel Wire/Zinc-5%Aluminum Wire
Pattern	Welded
Packaging	Wood pallet
Connections	Spiral wire, U clip, Hog ring

Aperture (mm)	Wire Diameter (mm)	PVC Coated Wire Diameter Inner/outer(mm)	Gabion Basket Size(m)	Gabion Mattress Size(m)
60×80	2.0-2.8	2.0/3.0-2.8/3.8	1×1×0.5m, 1×1×1m, 2×1×0.5m, 2×1×1m, 3×1×0.5m, 3×1×1m, 4×1×0.5m, 4×1×1m (available custom)	1×1×0.3m, 2×1×0.3m, 3×1×0.3m, 4×1×0.3m, 4×2×0.3m, 6×2×0.3m (available custom)
80×100	2.2-3.2	2.2/3.2-3.0/4.0	Same as above
80×120	2.2-3.2	2.2/3.2-3.0/4.0	Same as above
100×120	2.4-3.5	2.4/3.4-3.2/4.2	Same as above
100×150	2.4-3.5	2.4/3.4-3.2/4.2	Same as above
120×150	2.7-4.0	2.7/3.7-3.5/4.5	Same as above
Other sizes can be customized.

Superior Anti-corrosion Performance

Optional hot dipped galvanized, Galfan zinc-al alloy and PVC coating to resist erosion from water, soil and salt environment.
Flexible Structural Property

Capable of adapting to foundation settlement and geological deformation without cracking or collapsing.
Natural Water Permeability

Balances water pressure automatically and effectively avoids the risk of wall burst.
High Mechanical Resistance

Double twisted weaving technology provides strong tensile force to withstand impact from flood and falling rocks.
Easy & Cost-effective Installation

Lightweight panels for simple assembly without large construction machines, greatly cutting labor expenses.
Wide Application Range

Suitable for heavy hydraulic engineering and decorative landscape construction simultaneously.

Packing & Delivery

Packing, reasonable arrangement of space, saving buyer's cost
