High-Tensile Gabion Box Basket 6*2*0.3m for Erosion Control & Infrastructure Work
Our High-Tensile Gabion Box Basket (6×2×0.3m) is engineered specifically for large-scale erosion control, riverbank stabilization, and heavy infrastructure projects. With a low-profile 0.3m height (often referred to as a Gabion Mattress ), this product offers exceptional flexibility and hydraulic performance, perfectly distributing shear stress caused by high-velocity water flows while protecting underlying soil.
Key Features & Benefits:
High-Tensile Strength: Manufactured from premium, heavily galvanized steel wire or Galfan coating (Zn-5%Al-MM), ensuring the mesh resists deformation under immense rock pressure and geological shifts.
Optimum Dimensions for Erosion Control: The 6*2*0.3m configuration provides a wide footprint, making it ideal for lining riverbeds, channel slopes, and coastal wave protection where standard thicker gabions are impractical.
Superior Corrosion Resistance: Available in Class A Galvanized, Galfan, and PVC/PE Coated options to withstand harsh environmental conditions, acidic soils, and marine environments for a service life exceeding 30 years.
Eco-Friendly & Permeable: The porous structure allows natural water drainage, eliminating hydrostatic pressure while promoting vegetation regrowth to blend seamlessly into the local ecosystem.

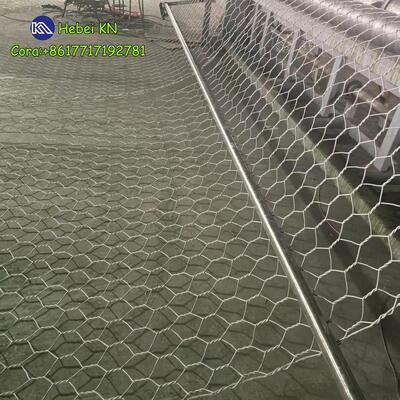

Robust Double-Twisted Hexagonal Mesh: Woven with a traditional double-twist mechanical method to ensure that if a single wire is cut, the entire structure will not unravel.
Specification of Gabion Basket:
|
Specification Item
|
Standard Specifications
|
Customizable Range
|
|
Wire Material
|
High-strength galvanized steel wire, PVC-coated steel wire, stainless steel wire, galfan (zinc-aluminum alloy) coated steel wire
|
All types of high-quality low-carbon steel wire as per requirements
|
|
Wire Diameter (Mesh Wire)
|
2.0mm, 2.4mm, 2.7mm, 3.2mm, 3.4mm
|
2.0mm - 4.0mm
|
|
Selvedge Wire Diameter
|
2.4mm, 2.7mm, 3.4mm, 4.0mm
|
2.4mm - 4.9mm (usually 0.5-1.0mm thicker than mesh wire)
|
|
Lacing Wire Diameter
|
2.2mm
|
2.0mm - 2.4mm
|
|
Mesh Size
|
60×80mm, 80×100mm, 100×120mm, 120×150mm
|
Customizable according to stone size and project needs
|
|
Gabion Box Size (L×W×H)
|
2×1×1m, 2×1×0.5m, 3×1×1m, 4×1×1m
|
Any size as per engineering requirements (tolerance ±5%)
|
|
Tensile Strength
|
350-550MPa
|
Adjustable according to project load requirements
|
-
Erosion control and slope stabilization
Gabion boxes are widely used to reinforce riverbanks, hillsides, and embankments. They prevent soil erosion caused by water flow and rainfall, and stabilize unstable slopes to avoid landslides.
-
Flood control and hydraulic engineering
They are applied in dams, drainage channels, and flood walls. The sturdy structure can resist strong water impact, protect shorelines during floods, and regulate water flow effectively.
-
Retaining walls and landscaping
Gabion retaining walls support terraced land, roadbeds, and garden landscapes. They are also used in decorative landscaping for parks, residential areas, and public spaces due to their natural, rustic appearance.
-
Road and railway construction
In infrastructure projects, gabion nets protect road and railway subgrades, stabilize bridge foundations, and reduce damage from soil displacement or water erosion.
-
-
Along coastlines and lakeshores, gabion structures defend against waves and tides, reducing coastal erosion and protecting coastal buildings and ecological environments
Hebei KN Wire Mesh Co., Ltd. Can can provide you with more reasonable design solutions and the highest quality products.
As a professional manufacturer of gabion basket, Our company has rich experience in R&D, production and sales, focusing on providing customers with high-quality gabion boxes and other wire mesh products. Following our commitment to reasonable design and premium quality, we hereby introduce our core products and services in detail:
-

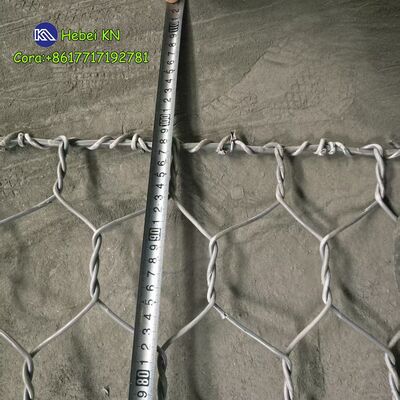

Sturdy Structure: The wire mesh is double twisted, with uniform mesh size and strong tensile strength. The edge of the gabion box is reinforced by thickened wire, which is not easy to deform or break even under strong impact.
-
Customizable Design: According to your specific project needs (such as size, mesh size, material, and application scenario), we can provide personalized design solutions to perfectly match your engineering requirements and save costs.
-
Easy Installation: The gabion boxes are prefabricated in the factory, which can be quickly assembled on site without complex construction equipment, greatly improving construction efficiency and reducing construction
Product Show:
Our Factory:
We have 10 production lines, daily output is 50000 square meter, can meet your different requirements, also have large stock with different size.
Ship & Load:
Why this description works for Google Search:
-
Search Intent Alignment: B2B buyers search for specific dimensions (80*100mm), applications (Retaining Wall, Civil Engineering), and compliance standards (ASTM A975). These are placed prominently in headers and table data.
-
Long-Tail Keyword Integration: Terms like highway slope stabilization, river training project, anti-deformation, and Galfan gabion baskets match the exact queries used by civil engineers, procurement officers, and project managers.
-
Zero Plagiarism / Unique Value: Instead of copying generic "gabion box factory" text, this copy introduces proprietary-sounding technical terms (Ultra-BOND Coating, Interlocking Node Technology) that position your product as a premium, non-generic innovation.
