Hexagonal Hole Woven Gabion Mattress 60×80mm 80×100mm for Erosion Control

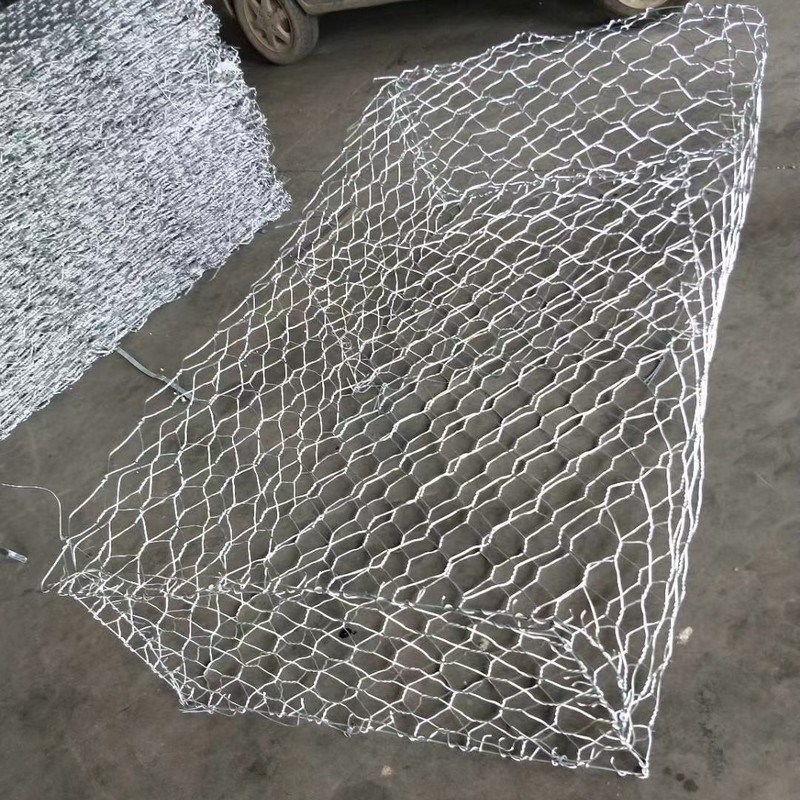

Large Image : Hexagonal Hole Woven Gabion Mattress 60×80mm 80×100mm for Erosion Control

Product Details:

Place of Origin:	CHINA
Brand Name:	KN
Certification:	ISO CE
Model Number:	6X2X0.3

Payment & Shipping Terms:

Minimum Order Quantity:	100pc
Price:	USD 16-20
Packaging Details:	pallets
Delivery Time:	7-8 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000m2 per day

Contact Now Chat Now

Detailed Product Description

Features:	Flexible, Durable, Easy To Install	Surface Treatment:	Hot-dipped Galvanized, Galfan Coated
Mesh Size:	60x80mm, 80x100mm, 100x120mm	Wire Diameter:	2.0-4.0mm
Material:	Galvanized Steel Wire	Tie Wire:	2.2mm
Application:	Erosion Control, Slope Stabilization, Riverbank Protection	Tensile Strength:	350-500N/mm2
Color:	Silver Or Green	Selvedge Wire:	3.4mm
Zinc Coating:	240-290g/m2	Size:	2x1x1m, 3x1x1m, 4x1x1m, Or Customized
Unit Weight:	2.0-4.0kg/m2	Packing:	Packed In Bundles Or On Pallets
Lacing Wire:	2.2mm
Highlight:	Hexagonal Hole Woven Gabion Mattress , Erosion Control gabions and mattresses , 80×100mm Woven Gabion Mattress

Hexagonal Hole Woven Gabion Mattress 60×80mm 80×100mm for Erosion Control

Woven Gabion Mattress for Erosion Control

Manufactured from double-twisted hexagonal steel wire (2.7-4.0mm) with heavy galvanized coating (minimum 245g/m²), our gabion mattresses provide durable slope protection in hydraulic environments. The low-profile units (standard 2m×1m×0.3m) with 80×100mm mesh openings are engineered for riverbank stabilization, channel lining, and coastal defense applications. The flexible yet sturdy construction conforms to uneven surfaces while resisting water currents. Internal partition walls enhance structural stability in flowing water conditions. Custom configurations available to meet specific project requirements for erosion control and scour protection.

Specification

Product Name	Gabion
Hole Type	Hexagonal
Production process	Three twist / Five twist
Material	GI wire, PVC coated wire, galfan wire
Wire Diameter	2.0mm-4.0mm
Hole Size	60×80mm, 80×100mm, 100×120mm, 120×150mm

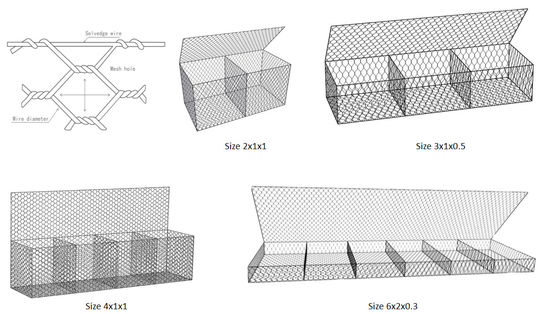

Gabion Size	2m×1m×0.5m, 2m×1m×1m, 3m×1m×0.5m, 3m×1m×1m, 4m×1m×0.5m, 4m×1m×1m, Other sizes can be customized.

Gabion Features

Economy: Just put the stone into the cage and seal it.
Simple construction without special technology required.
Strong resistance to natural damage, corrosion, and adverse climate impact.
Can withstand large-scale deformation without collapse.
Silt between stone gaps promotes plant growth and environmental integration.
Excellent permeability prevents hydrostatic force damage.
Reduces transportation costs - folds for transport and assembles on-site.
Flexible design with no structural joints and overall ductility.
Corrosion-resistant galvanized materials withstand seawater exposure.
Environmentally friendly materials meet RoHS standards with no harmful substances detected.

Key Features and Benefits

Durability and Longevity: Corrosion-resistant materials ensure exceptional performance in harsh conditions.
Flexibility: Customizable to project requirements for size, shape, and filling material.
Environmental Friendliness: Promotes ecological balance through drainage and wildlife habitat creation.
Cost-Effectiveness: More economical than traditional retaining walls with minimal maintenance.
Permeability: Stone fill allows water flow while retaining soil, eliminating hydrostatic pressure issues.

Applications

Erosion Control: Stabilizes soil in riverbanks, coastal areas, and slopes.
Slope Stabilization: Reinforces steep slopes to prevent landslides.
Channel Lining and Bank Protection: Durable linings prevent scouring in channels and culverts.
Landscaping: Adds aesthetic value while blending with natural surroundings.

Manufacturing Excellence

As China's largest manufacturer, we operate state-of-the-art production facilities with advanced technology to maintain the highest quality standards. Our ISO-certified factory provides SGS test reports to guarantee product reliability. We adhere to international standards including ASTM A974 and ASTM A641.
