Galvanized Wire Gabion Box Mesh 2*1*1m for Flood Control & Engineering Projects
Proven in the Field: Global Project Case Studies:
Highway Slope Stabilization (High-Speed Rail Project): Deployed over 50,000 cubic meters of our Galfan-coated gabion baskets to secure a 45-degree mountain cut. The $80times100text{ mm}$ mesh matrix successfully contained variable-sized rock backfill, preventing rockfalls and minor landslides during consecutive monsoon seasons.
Riverbank Restoration & Flood Control: Utilized in a major municipal river training project. The double-twisted hexagonal mesh absorbed the high-velocity kinetic energy of the water, while the eco-friendly design allowed natural vegetation to regrow, restoring the local riparian ecosystem within 18 months.
Bridge Abutment Protection: Applied as heavy-duty retaining walls to support bridge approach fills, showcasing zero structural deformation under immense, continuous dynamic loads.
Permeable
Gabion walls are known for their permeability. This means that they need less drainage and in some cases no additional drainage behind the face of the wall due to less hydrostatic pressure buildup.
Sustainable
Gabion walls are sustainable because they are filled with minimally processed stone, a natural resource that can be sourced locally. If desired and with the proper maintenance vegetation can grow so the gabion walls can blend into the environment.
Durable
Our gabion walls are designed to last since they’re flexible and are able to move with the earth. Unlike stiff materials like concrete which can crack as the years go by, gabions can move and settle with the natural movement of the earth.
Explore all your options with our wide range of standard and custom American made gabion products. A variety of material and finishes are available including, galvanized steel, galvanized steel with PVC coating, Galfan, stainless steel, and plastic copolymer.
Specification of Gabion Basket:
|
Specification Item
|
Standard Specifications
|
Customizable Range
|
|
Wire Material
|
High-strength galvanized steel wire, PVC-coated steel wire, stainless steel wire, galfan (zinc-aluminum alloy) coated steel wire
|
All types of high-quality low-carbon steel wire as per requirements
|
|
Wire Diameter (Mesh Wire)
|
2.0mm, 2.4mm, 2.7mm, 3.2mm, 3.4mm
|
2.0mm - 4.0mm
|
|
Selvedge Wire Diameter
|
2.4mm, 2.7mm, 3.4mm, 4.0mm
|
2.4mm - 4.9mm (usually 0.5-1.0mm thicker than mesh wire)
|
|
Lacing Wire Diameter
|
2.2mm
|
2.0mm - 2.4mm
|
|

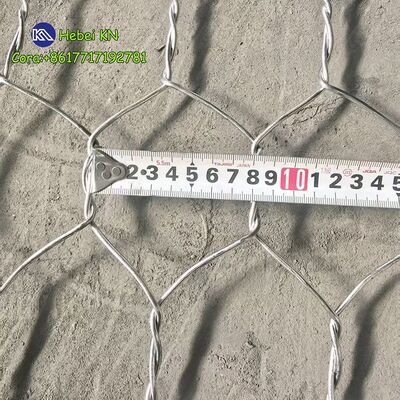

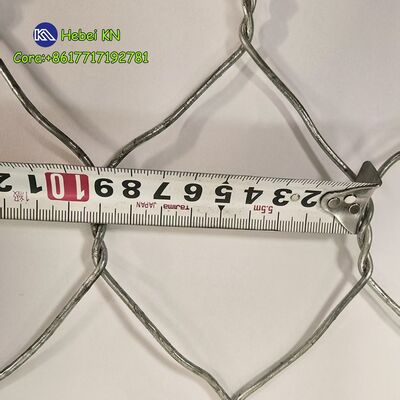

Mesh Size
|
60×80mm, 80×100mm, 100×120mm, 120×150mm
|
Customizable according to stone size and project needs
|
|
Gabion Box Size (L×W×H)
|
2×1×1m, 2×1×0.5m, 3×1×1m, 4×1×1m
|
Any size as per engineering requirements (tolerance ±5%)
|
|
Tensile Strength
|
350-550MPa
|
Adjustable according to project load requirements
|
-
Erosion control and slope stabilization
Gabion boxes are widely used to reinforce riverbanks, hillsides, and embankments. They prevent soil erosion caused by water flow and rainfall, and stabilize unstable slopes to avoid landslides.
-
Flood control and hydraulic engineering
They are applied in dams, drainage channels, and flood walls. The sturdy structure can resist strong water impact, protect shorelines during floods, and regulate water flow effectively.
-
Retaining walls and landscaping
Gabion retaining walls support terraced land, roadbeds, and garden landscapes. They are also used in decorative landscaping for parks, residential areas, and public spaces due to their natural, rustic appearance.
-
Road and railway construction
In infrastructure projects, gabion nets protect road and railway subgrades, stabilize bridge foundations, and reduce damage from soil displacement or water erosion.
-
-
Along coastlines and lakeshores, gabion structures defend against waves and tides, reducing coastal erosion and protecting coastal buildings and ecological environments
Hebei KN Wire Mesh Co., Ltd. Can can provide you with more reasonable design solutions and the highest quality products.
As a professional manufacturer of gabion basket, Our company has rich experience in R&D, production and sales, focusing on providing customers with high-quality gabion boxes and other wire mesh products. Following our commitment to reasonable design and premium quality, we hereby introduce our core products and services in detail:
-
Sturdy Structure: The wire mesh is double twisted, with uniform mesh size and strong tensile strength. The edge of the gabion box is reinforced by thickened wire, which is not easy to deform or break even under strong impact.
-
Customizable Design: According to your specific project needs (such as size, mesh size, material, and application scenario), we can provide personalized design solutions to perfectly match your engineering requirements and save costs.
-
Easy Installation: The gabion boxes are prefabricated in the factory, which can be quickly assembled on site without complex construction equipment, greatly improving construction efficiency and reducing construction
Product Show:
Our Factory:
We have 10 production lines, daily output is 50000 square meter, can meet your different requirements, also have large stock with different size.
Ship & Load:
