Hexagonal Mesh Hole Gabions Basket Box Galvanized 2x1x1m Gabion Rock Box

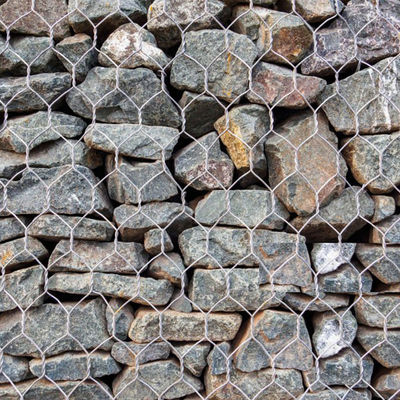

Large Image : Hexagonal Mesh Hole Gabions Basket Box Galvanized 2x1x1m Gabion Rock Box

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	KN-gabion box

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 35-45
Packaging Details:	pallet
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 pc per day

Contact Now Chat Now

Detailed Product Description

Features:	Easy To Install, Durable	Product Name:	Hexagonal Mesh Hole Gabions Basket Box Wall Galvanized 2x1x1 Box Gabion
Key Words:	Gabion Box	Weaving Type:	Double Twist
Box Size:	2x1x1m, 3x1x1m, 4x1x1m, 2x1x0.5m, 3x1x0.5m, 4x1x0.5m	Surface:	Hot Dip Galvanized PVC Coating
Processing Service:	Welding, Cutting	Customized:	Avaliable
Material:	Galvanized Steel Wire	Filling Material:	Rocks, Stones, Etc.
Highlight:	2x1x1m Gabion Rock Box , Hexagonal Mesh Hole Gabion Rock Box

Hexagonal Mesh Hole Gabions Basket Box Galvanized 2x1x1m Gabion Rock Box

Gabion Box is a rectangular modular container crafted from twisted hexagonal wire mesh featuring galvanized or PVC-coated steel for enhanced durability. The unit is compartmentalized into evenly-sized sections via internal diaphragms, which act as separators to minimize stone displacement during filling. Filled with natural stones, the diaphragms ensure uniform stone distribution even under dynamic conditions, while maintaining structural integrity to preserve the rectangular shape throughout installation. This design enables optimized load stability and erosion resistance, making it ideal for civil engineering applications requiring geotechnical reinforcement and environmental sustainability.

Key Features

Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages

3x Lifespan: 50-100 years corrosion resistance
Load Capacity: Up to 50kN/m² vertical pressure
Eco-Friendly: 100% recyclable materials with zero chemical runoff
Modular Assembly: Interlocking panels for 70% faster installation

Applications

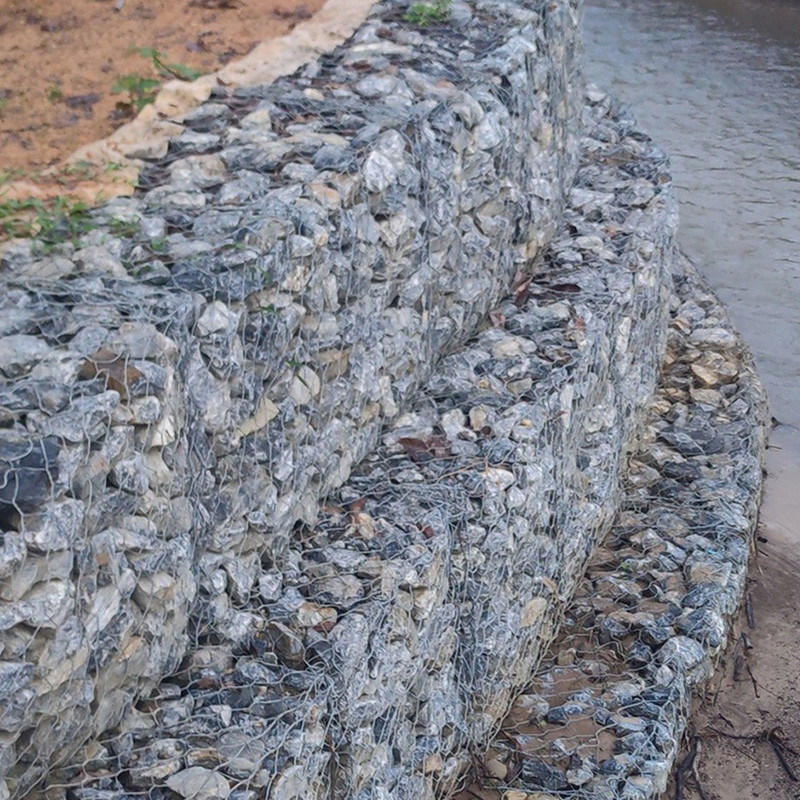

Civil Engineering: Riverbank stabilization, highway embankments
Architecture: Retaining walls, sound barriers, decorative façades
Disaster Prevention: Flood control barriers, landslide mitigation systems
Mining: Tailings dam reinforcement, slope retention

Additional Benefits

Economical: Simply fill with stones and seal the mesh
Flexible: Corrosion resistant and withstands extreme weather conditions
Simple structure requiring no special installation techniques
Promotes vegetation growth between wire mesh and stones for environmental harmony
Excellent permeability prevents hydrostatic force damage, ensuring hillside and beach stability
Foldable design allows on-site assembly, reducing transportation costs

Gabion Specifications

Mesh Hole Model		8x10cm	6x8cm
Dimensions (LxWxH)	2x1x1m	Mesh diameter: 2.7mm Zinc: >245g/m²	Mesh diameter: 2.0mm Zinc: >215g/m²
	3x1x1m	Side wire diameter: 3.4mm Zinc: >265g/m²	Side wire diameter: 2.7mm Zinc: >245g/m²
	4x1x1m	Binding wire diameter: 2.7m (8x10cm) / 2.0m (6x8cm)
	6x1x1m	Binding wire diameter: 2.7m (8x10cm) / 2.0m (6x8cm)
