120x150mm Hexagonal Gabion Mesh Box For Flood Control Retaining Wall

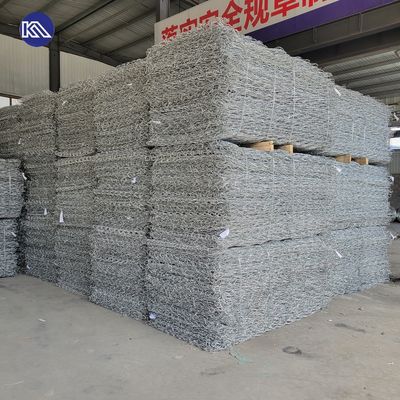

Large Image : 120x150mm Hexagonal Gabion Mesh Box For Flood Control Retaining Wall

Product Details:

Place of Origin:	China
Brand Name:	KN
Certification:	CE, ISO, COC,BESC
Model Number:	KNG01

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	USD 15-18
Packaging Details:	pallet or bundle
Delivery Time:	7
Payment Terms:	L/C,Western Union,MoneyGram,T/T
Supply Ability:	1 40-foot high containers in 7 days

Contact Now Chat Now

Detailed Product Description

Product Name:	Outdoor Water Proof Gabion Mesh Box 211m Filled With Stone For Flood Control Retaining Wall	Key Word:	Gabion Box
Material:	Galvanized Iron Wire,Low-Carbon Iron Wire,pvc Wire, Galfan Wire	Hole Shape:	Hexagonal, Double Twist
Wire Gauge:	2.4mm, 2.5mm, 2.7mm, 2.8mm, 3.05mm	Application:	Gabions,Cages,slope Protection,Fence Mesh,Construction Wire Mesh
Type:	Hexagonal Wire Mesh, Double Twist	Aperture:	80100mm,100120mm,60*80mm,etc,
Surface Treatment:	Hot Dipped Galvanized, PVCcoated, Galvanized+PVC Coated	Product Name:	Gabion Box, Gabion Box Wire Mesh,Gabion Basket,Hot Sale 2x1x1m PVC Coated Heavy Duty Gabion
Color:	Green,black,	Packing:	Pallet,Bundle
Highlight:	Flood Control Gabion Mesh Box , 120x150mm Hexagonal Gabion Mesh Box

120x150mm Hexagonal Gabion Mesh Box For Flood Control Retaining Wall

Outdoor Water Proof Gabion Mesh Box 2*1*1m Filled With Stone for Flood Control Retaining Wall

Woven Gabion Box fabricated from Galfan-coated steel wire (Zn-5%Al-MM alloy, 4.8mm diameter) with hexagonal mesh (120x150mm apertures). These boxes (3m x1.2m x0.6m) are designed for high-velocity river revetments. Units include vertical reinforcement ribs (6mm wire) at 1m intervals and welded corner braces (4mm thickness) to stabilize angular basalt infill (200-400mm). Interconnected via zinc-plated steel lacing pins (8mm diameter) and cross-wire binders, the system allows hydraulic permeability in gravel-bed streams. Compliant with EN 10223-3 standards, with optional non-metallic composite spacers (polypropylene) to prevent galvanic corrosion in saline estuaries. Base units integrate 100mm PVC drainage ports for pore pressure relief in cohesive bank soils.

Common Gabion Basket Sizes

Length (M)	Width (M)	Height (M)	Diaphragm	CBM (m³)
1	1	1	0	1
2	1	1	1	2
3	1	1	2	3
4	1	1	3	4
5	1	1	4	5
6	1	1	5	6

Other sizes available as custom orders

Gabion Mattress Sizes

Length (M)	Width (M)	Height (M)	Diaphragm	CBM (m³)
1	1	0.3/0.5	0	0.3/0.5
2	1	0.3/0.5	1	0.6/1
3	1	0.3/0.5	2	0.9/1.5
4	1	0.3/0.5	3	1.2/2
5	2	0.3/0.5	4	3/5
6	2	0.3/0.5	5	3.6/6

Other sizes available as custom orders

Product Applications

Erosion Control: Stabilizes slopes and riverbanks, preventing soil erosion while allowing proper water drainage.
Retaining Walls: Constructs durable walls that secure hillside soil while adding natural aesthetics to landscapes.
Flood Protection: Forms effective barriers to divert water flow and reduce flood damage risks.
Coastal Defense: Stabilizes shorelines against wave action and protects coastal properties from erosion.
Road and Highway Embankments: Reinforces soil retention for transportation routes, preventing landslides.
Bridge Abutments and Foundations: Strengthens structural support in bridge construction projects.

Technical Specifications

Parameter	Description	Typical Value / Range
Material	Base material used for constructing the mesh	HDP/Galvanized Wire, PVC Wire
Coating	Surface treatment for enhanced corrosion resistance	Galvanized, HDP Galvanized, PVC Coated
Wire Diameter	The thickness of the wires used in the mesh	Mesh Wire: 2.0~3.05mm Selvage Wire: 2.4~4.0mm Tie Wire: 2.0~2.4mm
Mesh Opening Size	The size of the openings between wires	6080mm, 80100mm, 100120mm, 120150mm
Overall Dimensions	Standard Gabion Roll and Gabion Basket Size	Gabion Roll Width: 1~4m Gabion Basket: 111m, 211m, 311m, 411m, 511m, 611m
Lifespan	Expected service life under normal conditions	6~20 years (depends on environment)
