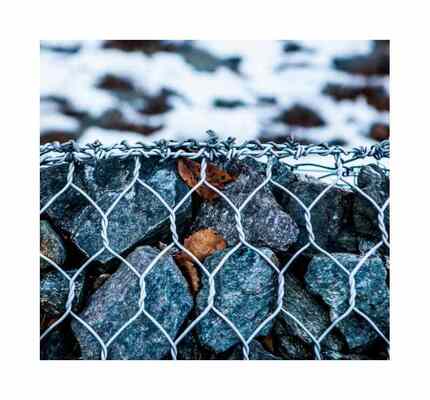

Custom Size Corrosion Resistant Gabion Box for River Flood Control Reinforcement

Custom Size Corrosion Resistant Gabion Box for River Flood Control Reinforcement
Custom Size Corrosion Resistant Gabion Box for River Flood Control Reinforcement

Large Image :  Custom Size Corrosion Resistant Gabion Box for River Flood Control Reinforcement

Product Details:
Place of Origin: Hebei Provence, China
Brand Name: KN
Certification: ISO,CE
Model Number: KN-G02
Payment & Shipping Terms:
Minimum Order Quantity: 50 boxes
Price: USD6.88-12.98
Packaging Details: Customize
Delivery Time: 5-12 days
Payment Terms: T/T,Western Union,L/C
Supply Ability: 3000000 ㎡/month
Contact Now Chat Now
Detailed Product Description
Product Name: Woven Gabion Basket Size: 1*1*1m,2*1*1m,3*1*1m...customize
Wire Diameter: 2.7mm Mesh Hole: 60*80mm,80*100mm,100*120mm..customized
Material: Q195 Steel Wire Mesh Packages: Customize
Delivery Time: 5-12 Days Key Word: Gabion Basket Stone Cage
Selvding Wire: 3-4mm Lacing Wire: 2.0-2.2mm

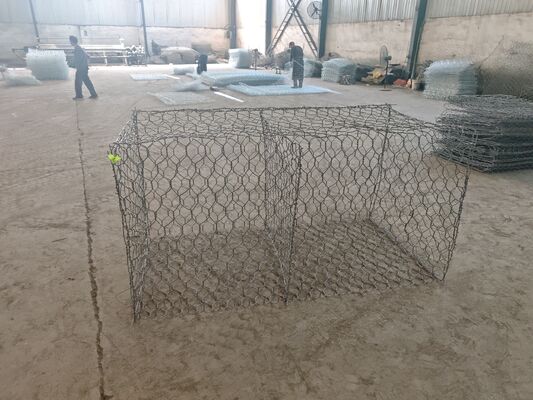

Gabion Box Stone Basket Hexagonal Woven Wire Mesh For Stone Loading For River Flood Control Reinforcement


Product description

Hexagonal Gabion Box Support customization to meet your needs
Gabion net is made of low carbon steel wire with high corrosion resistance, high strength and ductility or PVC coated steel wire by mechanical weaving. The box structure made of the net is gabion net,net is used for the scour protection of rivers, dikes and seawalls, as well as cage for the closure of reservoirs and rivers. The most serious disaster of the river is that the water scours the Bank of the river and causes the flood, which leads to a lot of loss of life and property and a lot of soil erosion.
Therefore, when dealing with the above problems, the application of the gridecological grid structure becomes one of the best solutions, which can make the river bed and bank permanent protection.

Custom Size Corrosion Resistant Gabion Box for River Flood Control Reinforcement 0

Product details

                                                                          Specification of Hexagonal Gabion Mesh


Material
Wire Diameter(mm)
Selvding Wire(mm)
Lacing Wire(mm)
Mesh Hole(mm)
Gabion Size(m)
1. Galvanizing
2. Hot dip galvanizing
3. Galfan (zinc aluminum alloy)
zinc 5% aluminum mixed rare earth alloy steel wire

zinc 10% aluminum mixed rare earth alloy steel wire4. PVC coated
2.0mm

2.2mm
2.4mm
2.7mm
3.0mm
3.5mm
4.0mm


3-4mm


2.0-2.2mm


60x80mm
80x100mm
100x120mm
120x150mm
customized
2x1x0.5m

2x1x1m
3x1x1m
4x1x1m

4x1x2m
4x2x0.3m
6x2x0.3m
customized
                                                                               Specification of Gabion Mattress


Material
Wire Diameter(mm)
Selvding Wire(mm)
Lacing Wire(mm)
Mesh Hole(mm)
Gabion Size(m)
1. Galvanizing

2. Hot dip galvanizing
3. Galfan (zinc aluminum alloy)
zinc 5% aluminum mixed rare earth alloy steel wire
zinc 10% aluminum mixed rare earth alloy steel wire4. PVC coated
2.0mm
2.2mm
2.4mm
2.7mm
3.0mm
3.5mm
4.0mm


3-4mm


2.0-2.2mm


60x80mm

80x100mm
100x120mm
120x150mm
customized


3x2x0.3m
4x2x0.3m
5x2x0.3m
6x2x0.3m
customized
Note: All sizes and materials of the hex gabion mesh can be customized according to your request.

Custom Size Corrosion Resistant Gabion Box for River Flood Control Reinforcement 1

Custom Size Corrosion Resistant Gabion Box for River Flood Control Reinforcement 2


Advantages
1.Flexibility, even though the project site up anddown,the gabion box will be not damaged.Good resistance,even though the max flowspeed is 6m/s, the box will keep on working well.
2.Perfect permeability, it is good for ersion&sediment control.
3.Easy to install
4.Strong structure can avoid collapsing
5.Perfect permeability ,it can make the costal andslope more stable.

Custom Size Corrosion Resistant Gabion Box for River Flood Control Reinforcement 3

Custom Size Corrosion Resistant Gabion Box for River Flood Control Reinforcement 4
