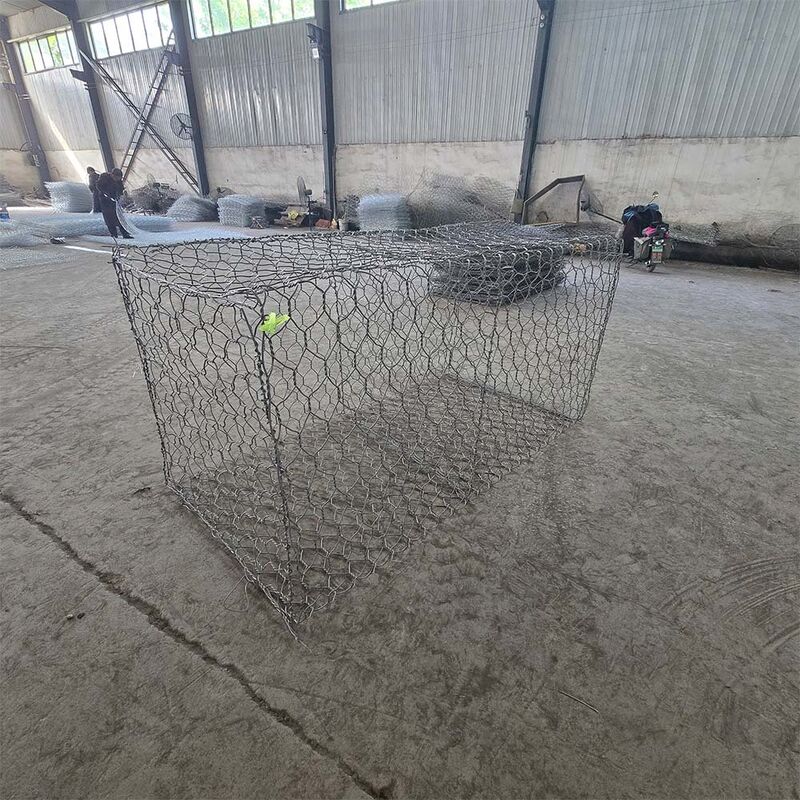

High Quality Galvanized Wire Stone Gabion Baskets Gabion Box Woven Gabion Mesh

High Quality Galvanized Wire Stone Gabion Baskets Gabion Box Woven Gabion Mesh
High Quality Galvanized Wire Stone Gabion Baskets Gabion Box Woven Gabion Mesh

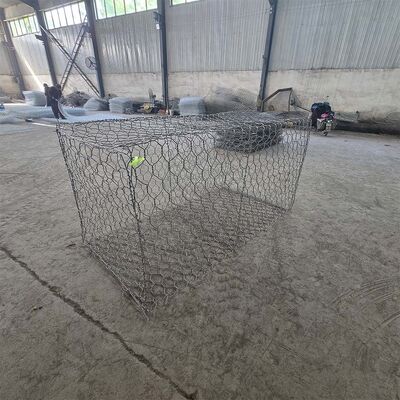

Large Image :  High Quality Galvanized Wire Stone Gabion Baskets Gabion Box Woven Gabion Mesh

Product Details:
Place of Origin: CN
Brand Name: KN
Certification: CE ISO SGS COC PVOC
Model Number: KN-gabion wall
Payment & Shipping Terms:
Minimum Order Quantity: 100 pc
Price: USD 35-50
Packaging Details: pallet
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 pc per day
Contact Now Chat Now
Detailed Product Description
Product Name: High Quality Galvanized Wire Stone Gabion Baskets Gabion Box Woven Gabion Mesh Key Words: Gabion Wall
Color: Green,black, Size: 2m X 1m X 1m
Mesh Hole: 6*8cm,8*10cm... Type: Hexagonal Wire Mesh, Double Twist
Wire Diameter: 2.0-4.0mm Mesh Size: 80mm X 100mm
Product Wire Material: Hot Dip Galvanized, Galfan Coated Wire Diameter: 3.0mm
Highlight:

galvanized wire gabion baskets

,

woven gabion mesh box

,

stone gabion wall baskets

High Quality Galvanized Wire Stone Gabion Baskets Gabion Box Woven Gabion Mesh

Introduction to Woven Gabion Mesh

Woven gabion mesh is a type of hexagonal wire netting manufactured by twisting wires together to form a strong, flexible, and durable structure. It is widely used in civil engineering, slope protection, river training, and erosion control projects.

Key Features:

  • Made from low-carbon steel wire, often coated with zinc (galvanized) or PVC for corrosion resistance.

  • Hexagonal openings provide excellent permeability and allow vegetation to grow through.

  • The double-twisted weaving method ensures that even if the wire breaks at one point, the mesh will not unravel.

  • Available in various wire diameters, mesh sizes (e.g., 60×80 mm, 80×100 mm), and roll widths.

Technical Advantages
  • 3x Lifespan: 50-100 years corrosion resistance
  • Load Capacity: Up to 50kN/m² vertical pressure
  • Eco-Friendly: 100% recyclable materials with zero chemical runoff
  • Modular Assembly: Interlocking panels for 70% faster installation
Applications
  • Civil Engineering: Riverbank stabilization, highway embankments
  • Architecture: Retaining walls, sound barriers, decorative façades
  • Disaster Prevention: Flood control barriers, landslide mitigation systems
  • Mining: Tailings dam reinforcement, slope retention
Customization Services
  • Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
  • Wire Diameters: 2.2mm - 4.0mm (3.0mm recommended for high-load zones)
  • Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)
Gabion Specifications
  Mesh hole model
8x10cm 6x8cm
Length(m) Width(m) Height(m) Galvanized or PVC coated Galvanized or PVC coated
2 1 1 2.7mm >245g/m² 2.0mm >215g/m²
3 1 1 3.4mm >265g/m² 2.7mm >245g/m²
4 1 1 Binding wire diameter of 2.7m
6 1 1 Binding wire diameter of 2.0m
High Quality Galvanized Wire Stone Gabion Baskets Gabion Box Woven Gabion Mesh 0
