PVC Coated Gabion Baskets Wall Featuring Hexagonal Mesh and Galfan Coated Wire for Durable Slope Stabilization and Soil Protection Applications

Large Image : PVC Coated Gabion Baskets Wall Featuring Hexagonal Mesh and Galfan Coated Wire for Durable Slope Stabilization and Soil Protection Applications

Product Details:

Place of Origin:	CHINA
Brand Name:	KN gabion
Certification:	ISO CE SGS
Model Number:	1X1X1 2x1x1 3x1x1 4X1X1 5X1X1

Payment & Shipping Terms:

Minimum Order Quantity:	100pc
Price:	contact us now
Packaging Details:	bunbles
Delivery Time:	7-8 days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	5000m2 per day

Contact Now Chat Now

Detailed Product Description

Gabion Size:	2m X 1m X 1m	Cage Size:	111m,211m,311m,411m
Pvc Color:	Dark Green, Grey	Gabion Height Type:	Gabion Box And Gabion Mattress.
Sample:	Free	Twist Number:	Double Twist
Service:	Free Drawing	Payment:	T/T Or L/C
Highlight:	PVC coated gabion baskets , Hexagonal mesh gabion wall , Galfan coated wire slope stabilization

PVC Coated Gabion Baskets Wall Featuring Hexagonal Mesh and Galfan Coated Wire for Durable Slope Stabilization and Soil Protection Applications

Product Overview

The Gabion Basket by Roll is an innovative and highly effective solution for slope protection and landslide prevention. Designed with advanced engineering principles, this product offers robust protection against soil erosion and debris flow, making it an ideal choice for mountainous areas prone to landslides and mudslides.

Installation

Site Preparation: Clear the slope of any debris and ensure the ground is level.
Unrolling: Unroll the gabion baskets directly on the slope, securing them with stakes or anchors.
Filling: Fill the baskets with stones or other suitable materials, ensuring tight packing for maximum stability.
Final Securing: Secure the baskets with additional fasteners and interconnect them to form a cohesive structure.

Benefits

Cost-Effective: Reduces transportation and installation costs for large-scale projects.
Low Maintenance: Requires minimal intervention once installed.
Aesthetic Appeal: Natural appearance blends with the environment.

Key Features

Durable construction with galvanized steel wire or Galfan coating
Excellent permeability and corrosion resistance
High tensile strength and long-lasting durability
Flexible structure adapts to terrain variations
Suitable for protective and decorative applications

Technical Specifications

Product Name	Gabion baskets
Material	Galvanized Steel Wire, Galfan Steel Wire/Zinc-5%Aluminum Wire
Pattern	weave gabion
Packaging	Wood pallet/ bundle
Connections	tie lacing wire 2.2mm

Standard Sizes

Aperture (mm)	Wire Diameter (mm)	PVC Coated Wire Diameter Inner/outer(mm)	Gabion Basket Size(m)	Gabion Mattress Size(m)
60×80	2.0-2.8	2.0/3.0-2.8/3.8	1×1×0.5m, 1×1×1m, 2×1×0.5m, 2×1×1m, 3×1×0.5m, 3×1×1m, 4×1×0.5m, 4×1×1m (custom available)	1×1×0.3m, 2×1×0.3m, 3×1×0.3m, 4×1×0.3m, 4×2×0.3m, 6×2×0.3m (custom available)
80×100	2.2-3.2	2.2/3.2-3.0/4.0	Same as above
80×120	2.2-3.2	2.2/3.2-3.0/4.0	Same as above
100×120	2.4-3.5	2.4/3.4-3.2/4.2	Same as above
100×150	2.4-3.5	2.4/3.4-3.2/4.2	Same as above
120×150	2.7-4.0	2.7/3.7-3.5/4.5	Same as above

Other sizes can be customized according to project requirements.

Packaging & Delivery

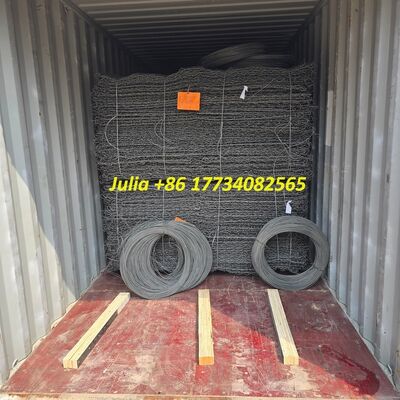

Our gabion boxes are packed on wood pallets with optimized space arrangement to minimize shipping costs.

PVC Coated Gabion Baskets Wall Featuring Hexagonal Mesh and Galfan Coated Wire for Durable Slope Stabilization and Soil Protection Applications 0
