Professional Padel Tennis Court Construction With Panoramic Glass Walls Specialized Turf

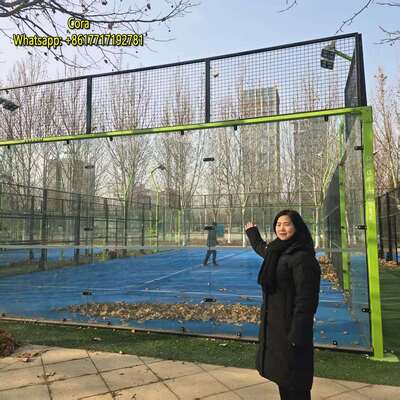

Large Image : Professional Padel Tennis Court Construction With Panoramic Glass Walls Specialized Turf

Product Details:

Place of Origin:	China
Brand Name:	KN
Certification:	CO, ISO,CE etc
Model Number:	KN-P03

Payment & Shipping Terms:

Minimum Order Quantity:	2 SETS
Price:	Negotiated
Packaging Details:	Pallet
Delivery Time:	5-8 work days
Payment Terms:	,T/T,Western Union
Supply Ability:	4 SETS per Week

Contact Now Chat Now

Detailed Product Description

Material:	Metal Mesh Panel, Explosion-proof Glass, Lawn	Wire Gauge:	3.0-4.0mm
Application:	Sport Facilities, Tennis, Basketball Court	Type:	Prefabricated Integrated Facilities
Surface Treatment:	Powder Coated,	Product Name:	Padel Court, Padel Tennis Court, The Wall Court, The Enclosed Court
Color:	Blue, Green, White, Pink Etc	Usage:	Sport Facilities
Packing:	Pallet	Feature:	Easily Assembled,Anti-corrosion,Beautiful,
Length:	10m Or 20m	Width:	6m Or 10m
Highlight:	Specialized Turf Padel Tennis Court Construction , Panoramic Glass Padel Tennis Court Construction , Professional Padel Tennis Court Construction

Professional Padel Tennis Court Construction

With panoramic glass walls and specialized turf, our professional padel tennis courts are engineered for optimal performance and durability. Padel has emerged as one of the world's fastest-growing sports, celebrated for its social doubles format that makes it perfect for friends and family.

Court Specifications & Features

Court Dimensions: Standard 20m × 10m configuration with custom sizing available
Tempered Glass: 12mm-thick explosion-proof tempered glass (2000mm × 3000mm) meeting GB 15763.2-2005 standards
Structural Framework: High-quality galvanized steel columns (100mm × 100mm × 3mm corner columns, 100mm × 50mm × 3mm side columns and crossbeams) with electrostatic powder coating
Lighting System: 8 sets of 200W LED lamps providing 300Lux illumination with 6000mm embedded posts
Playing Surface: Premium artificial turf (10-15mm height, 52,500-84,000 stitches/m²) compliant with GB/T 20394-2019 standards

Technical Specifications

Specification	Details
Court Dimensions	Standard: 10m × 20m; Custom sizes available
Frame Material	Heavy-duty galvanized steel (2.0mm-3.0mm thickness)
Coating Type	Polyester powder coating (60-80μm thickness), weather-resistant, UV-protective
Playing Surface	High-density artificial grass, synthetic turf, or rubberized padel surface (FIP-approved)
Net System	Tension-adjustable, weather-resistant polyester mesh with steel net posts
Installation Time	Standard court: 2-3 days (4-person team)
Weather Resistance	Temperature range: -30°C to +60°C; Resistant to rain, snow, UV rays, and saltwater
Warranty	Frame & coating: 10-year; Playing surface: 5-year; Net system: 3-year

Ideal Applications

Our padel courts are designed for diverse sport facilities including:

Professional padel centers and sports clubs
Community recreation areas and public parks
Schools, colleges, and university sports facilities
Resorts, hotels, and fitness centers
Event venues for tournaments and pop-up sports activities

Professional Advantages

Professional Performance: Meets FIP standards for competitive matches and training
Durability & Longevity: Powder coated finish and premium materials ensure years of reliable use
Flexible Installation: Modular design reduces construction time and costs
Customization Options: Tailor the court to your facility's brand and functional needs
Safety Features: Shock-absorbent surface and safety-tested components minimize injury risks
Cost-Effective: Low maintenance costs and long lifespan provide excellent ROI

Space Requirements & Planning

A standard padel court requires minimum space of 82 feet (25m) by 49ft 3in (15m). Indoor courts need ceiling height of 19ft 8in (6m), with FIP recommending 26ft 3in (8m) for new constructions. Proper spacing and design ensure player safety, comfort, and spectator enjoyment.

Construction Materials

Our padel courts feature solid concrete foundations reinforced with steel mesh, tempered glass panels, metal mesh fencing, and high-quality artificial turf filled with silica sand for optimal traction and ball bounce. Additional components include metal support posts, tension-adjustable nets, and professional lighting systems.
