| Product Name: | Outdoor Standard Padel Tennis Court Complete Court Field Canchas De Padel Frame | Key Words: | Padel Court |
|---|---|---|---|
| Color Options: | Green, Blue, Or Custom Colors | Fencing: | High-Quality Glass |
| Suitable For: | Indoor And Outdoor | Frame Material: | Galvanized Steel |
| Hole Size: | 45*45mm | Lighting: | LED Floodlights, 500 Lux |
| Net: | Steel Net With PE Coated | Playingsurface: | Artificial Turf |
| Highlight: | Outdoor Standard Padel Tennis Court,Complete Padel Tennis Court,Outdoor Padel Tennis Court |
||
Outdoor Standard Padel Tennis Court Complete Court Field Canchas De Padel Frame

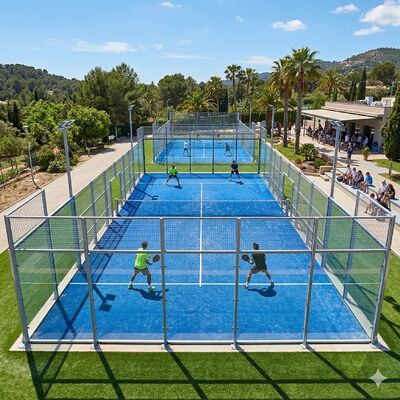

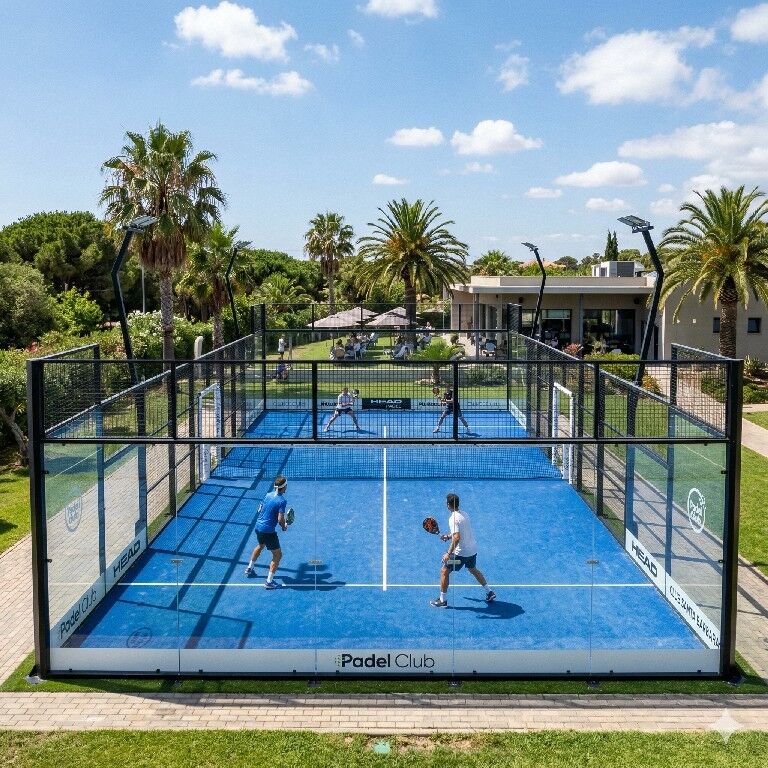

A padel court is an enclosed, rectangular playing area roughly 20m long and 10m wide, designed for the fast-growing sport of padel. Unlike traditional tennis courts, it features solid walls made of glass and mesh, allowing players to rebound the ball off them—adding a unique strategic element. The surface is artificial turf, providing consistent bounce and grip. A net divides the court in half, and the overall dimensions are smaller than tennis courts, which encourages quick, intense rallies and emphasizes technique, teamwork, and precision over power.
Full Set of one padel Court included following items :
1: Galvanized Steel Post
2: Galvanized Steel Mesh
3: 12mm Tempered Glass
4: Artificial Grass
5: LED Lights
| Product Model | PD04 |
| Venue Size | 20 meters long and 10 meters wide |
| Surface Course | Artificial short grass:12mm, in compliance with GB/T 20394-2013 "Artificial Grass for Sports" premium product;
Sand filling: 120 mesh quartz sand, with a sand filling quantity of 5kg/square meter, and ensuring uniform sand filling;
|
| Tempering Glass | Specially made explosion-proof tempered glass, size 2995mm * 1995mm, thickness 12mm |
| Column and fence | high-quality steel pipe:Corner column: 100mm * 100mm * 3mm;
crossbeam: 50mm * 100mm * 3mm, other columns: 50mm * 100mm * 3mm;
Mesh frame: 30mm * 50mm * 2mm, welded with 3mm thick steel plate;
End and side fence: 4m, side middle fence: 3m;
Mesh diameter: 4mm, mesh size: 50mm * 50mm;
|
| Lighting | 8 sets of LED lighting fixtures, each with a power of 200W;
The lamp post is embedded inside the fence, with a height of 6000mm; Illumination reaches 300Lux;
|
| Customized | Support all customization |
The enclosure of the court is formed by self-supporting structure with structural tube, closed and anchored with two lower and upper perimeter rings, made of structural sheet metal in 3mm.
Galvanized steel painted or coating the structure with baked epoxy polyester resin. Electro welded galvanized mesh 50x50x4mm with delivery without projections.
Packing: Tempered glass packed in plywood cartons, light packed in paper box; Grass packed in PP+non-woven net&SBR;Others packed in standard Polyethylene Foam.
Shipping: by sea, or by air or express.
![]()
