10m X20m Grade Padel Court Tempered Glass Welded Wire Mesh Fence For Outdoor Tennis Padel Fields

Large Image : 10m X20m Grade Padel Court Tempered Glass Welded Wire Mesh Fence For Outdoor Tennis Padel Fields

Product Details:

Place of Origin:	CHINA
Brand Name:	KN
Certification:	EU CE
Model Number:	20X10

Payment & Shipping Terms:

Minimum Order Quantity:	2 set
Price:	discuss
Packaging Details:	pallets
Delivery Time:	7-10 days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	4 set per week

Contact Now Chat Now

Detailed Product Description

Material:	Steel, Rubber, Tempered Glass	Name:	Panoramic Padel Court
Warranty:	3 Years	Size:	20m*10m
Column Size:	1001003mm	LED Lights:	200w
Highlight:	10m X 20m Outdoor Padel Court , Padel Court Tempered Glass , Welded Wire Mesh Fence Padel Court

10m X20m Grade Padel Court Featuring Tempered Glass And Welded Wire Mesh Fence For Outdoor Tennis And Padel Fields

Our company provides professional design, production, sales, installation guide, and after-sales service for Padel court.

We have our own large-scale factory, welcome to consult.

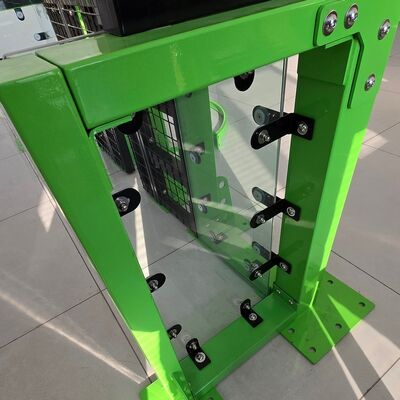

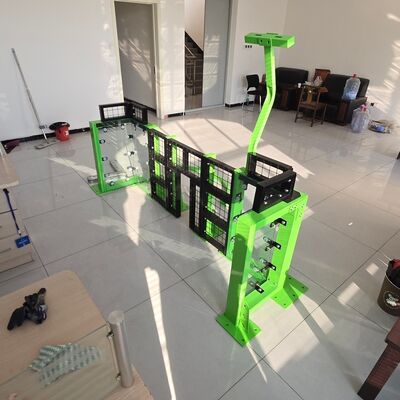

10m X20m Grade Padel Court Tempered Glass Welded Wire Mesh Fence For Outdoor Tennis Padel Fields 0

10m X20m Grade Padel Court Tempered Glass Welded Wire Mesh Fence For Outdoor Tennis Padel Fields 1

We are looking for agents for padel tennis court in China and other countries around the world.

Our advantages are as follows:

1.We provide the lowest price to agents.

2.We provide the best quality padel tennis courts.

3. We have professional pre-sales consultation, design, production, quality inspection, after-sales service.

Structure:

In addition to tempered glass, the stadium is enclosed by square-hole touch-welded mesh (excluding doors), with a hole distance of

50×50mm and a mesh wire φ4mm; 40×40×2.0 square tubes are used on the upper and lower sides of the grid frame to weld with the

mesh.The mesh wire is flush with the cross-section of the square tube, and the cross-section is not exposed;The imported steel

meets the requirements of GB/T 699-1999 standard and meets the strength of the equipment.The manufacturing processes of the structure of Century Star Padel Courts are made by: Laser: shaping/ cutting the pieces with maximum precision and finishing.

Robotic welding: guaranteeing its quality and avoiding future pores rust appearance

Glass Panels:

Approved tempered glass of 12 mm, mounted on 5 mm neoprene to reduce vibrations and breakages.

* Ability to withstand tensil stress, with a greater resistance compared to an annealed glass.

* In case of breakage, the tempered glass disintegrates into small fragments that do not cause sharp cutting or lacerating wounds, such as would be caused by the sharp edges of the small pieces of annealed glass.

* These features make tempered glass a good option for people's safety, especially due to the fact that it does not break into sharp or large fragments.

* Tempered glass has four times mechanical resistance compared to an annealed glass.

Artificial Turf :

MONDO's last generation monofilament artificial turf. The company has developed a new range of Padel artificial turf spoiling a

safer, more stable, resilient and faster game.

10mm MONDO STX monofilament lawn is available in the FIP/FEP/WPT approved 4 official colors: Blue, Green, Orange/Clay and Purple. There is also available the 12mm artificial turf range used in WPT's Central Court, which highlights from the textured effect of its filaments, providing greater rotational and longitudinal traction (Grip), increasing the grip and therefore improving the safety and performance on player moves.

Our turf whole range products for Tennis and Padel guarantee maximum performance, safety, comfort

8pcs, 200W Lights :

LED lighting made of 200W 8 lights specially designed for our Padel Courts.

Padel Court lighting will be uniform and not harming the players, the refereeing team or the spectator vision. It will comply with

the standard that refers to "Lighting of sports facilities" LED projector applied to Padel Tennis Courts main advantages are:

Instant ignition, so you can make the most of the player's time on the court, unlike the traditional halide spotlights delayed to

reach maximum brightness.

Low heat emission, highly recommended in Indoor Padel courts due to its small size.

Energy saving,,our LED spotlights save up to 60% of energy compared to traditional halide lamps.

Painting Color:

The surface is sprayed with zinc-rich primer +, the surface is smooth and flat, the color is uniform, and the combination is firm.We implement an extra shield/ protection layer against corrosion to the Court iron structure when it comes to particular coastal /maritime areas where salt spray is formed getting driven by the wind and generating high risk corrosion conditions (mainly within 100m offshore).

Packing:

tempered glass packed in wooden carton, light packed in paper box; turf packed in PP+non-woven net&SBR; Others packed in standard Polyethylene Foam;

Shipping: by sea.
