2.7mm HDP Galvanized Gabion Wall Double Twist Gabion Stone Wall Cage

2.7mm HDP Galvanized Gabion Wall Double Twist Gabion Stone Wall Cage
2.7mm HDP Galvanized Gabion Wall Double Twist Gabion Stone Wall Cage 2.7mm HDP Galvanized Gabion Wall Double Twist Gabion Stone Wall Cage

Large Image :  2.7mm HDP Galvanized Gabion Wall Double Twist Gabion Stone Wall Cage

Product Details:
Place of Origin: China
Brand Name: KN
Certification: CE, ISO, COC,BESC
Model Number: KNG01
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 15-20
Packaging Details: pallet or bundle
Delivery Time: 7
Payment Terms: L/C,Western Union,MoneyGram,T/T
Supply Ability: 1 40-foot high containers in 7 days
Contact Now Chat Now
Detailed Product Description
Material: Galvanized Iron Wire,Low-Carbon Iron Wire,pvc Wire, Galfan Wire Hole Shape: Hexagonal, Double Twist
Wire Gauge: 2.4mm, 2.5mm, 2.7mm, 2.8mm, 3.05mm Application: Gabions,Cages,slope Protection,Fence Mesh,Construction Wire Mesh
Type: Hexagonal Wire Mesh, Double Twist Aperture: 80*100mm,100*120mm,60*80mm,etc,
Surface Treatment: Hot Dipped Galvanized, PVCcoated, Galvanized+PVC Coated Product Name: Gabion Box, Gabion Box Wire Mesh,Gabion Basket,Hot Sale 2x1x1m PVC Coated Heavy Duty Gabion
Color: Green,black, Packing: Pallet,Bundle
Usage: Flood Control Retaining Wall, Protection, Sample: Available
Size: 2m*1m*1m,1x1x0.5m,4*1*1m,5*1*1,Customized, Feature: Easily Assembled,less Transport Freight,Strong And Durable, Simple Installation
Width: 2' -2m,0.914m~1.83m,0.5-2m,1M Zinc Coated: 40-60g,60g-80g,270g,245g, Etc,
Highlight:

2.7mm HDP Galvanized Gabion Wall

,

Double Twist Gabion Stone Wall

,

River Protection Gabion Wall Cage

2.7mm HDP Galvanized Gabion Wall Double Twist Gabion Stone Wall Cage

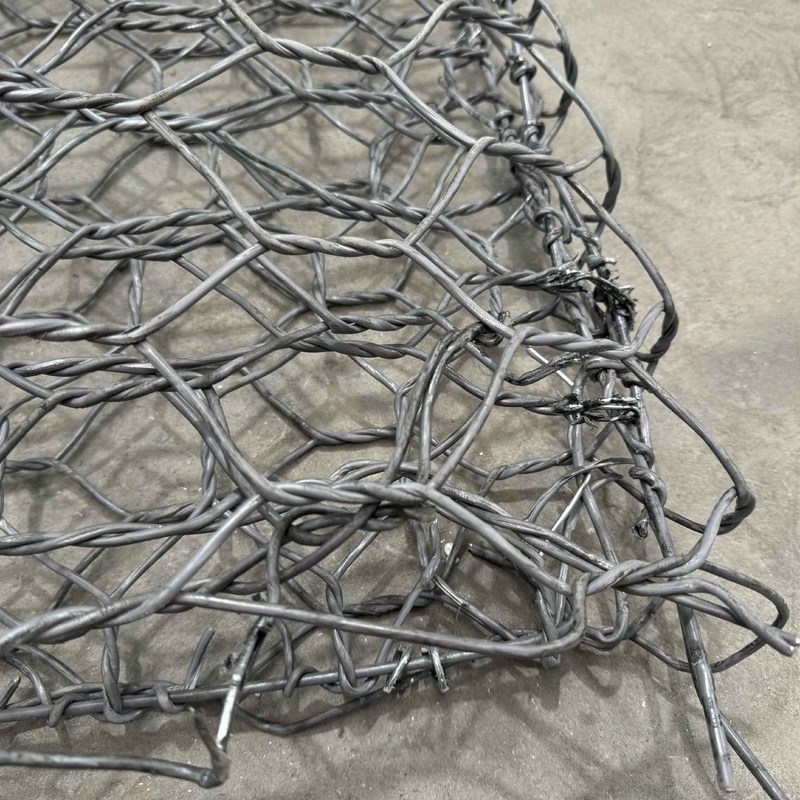

This 2.7mm HDP (Hot-Dip Galvanized) double-twist gabion stone wall cage is a specialized protective structure engineered for riverbank anti-erosion and aquatic ecosystem preservation.
2.7mm HDP Galvanized Gabion Wall Double Twist Gabion Stone Wall Cage 0
Crafted from high-quality low-carbon steel wire with hot-dip galvanization process, this gabion cage delivers triple corrosion protection, making it resistant to long-term immersion in river water, sediment abrasion, and mild aquatic salinity, ensuring a service life of over 30 years in harsh riparian environments.
Key Features:
  • Superior HDP Galvanized Corrosion Resistance: 2.7mm low-carbon steel with hot-dip zinc coating (≥200g/㎡); triple protection mechanism withstands river water, sediment, and salinity.
  • Rigid Double-Twist Mesh: Hexagonal woven structure (no welds) resists ≥2m/s water impact and soil pressure; meets EN10223-3 standards for riparian stability.
  • River-Optimized Design: 80×100mm apertures fit 80-200mm high-strength stones; 30-40% porosity balances anti-erosion and permeability.
  • Modular & Cost-Effective Installation: Foldable for transport (saves 60% space); manual assembly with galvanized binding wire.
  • Eco-Friendly Restoration: Mesh gaps enable plant rooting; forms "vegetation-gabion" ecosystem, preserves aquatic habitats.
Technical Specifications
Parameter Description Typical Value / Range
Material Base material used for constructing the mesh HDP/Galvanized Wire, PVC Wire
Coating Surface treatment for enhanced corrosion resistance Galvanized, HDP Galvanized, PVC Coated
Wire Diameter The thickness of the wires used in the mesh Mesh Wire: 2.0~3.05mm Selvage Wire: 2.4~4.0mm Tie Wire: 2.0~2.4mm
Mesh Opening Size The size of the openings between wires 60*80mm, 80*100mm, 100*120mm,120*150mm
Overall Dimensions Standard Gabion Roll and Gabion Basket Size Gabion Roll Width: 1~4m Gabion Basket: 1*1*1m,2*1*1m,3*1*1m,4*1*1m,5*1*1m,6*1*1m
Lifespan Expected service life Generally 6~20 years, depends on environment
Project Site Images
2.7mm HDP Galvanized Gabion Wall Double Twist Gabion Stone Wall Cage 1
2.7mm HDP Galvanized Gabion Wall Double Twist Gabion Stone Wall Cage 2

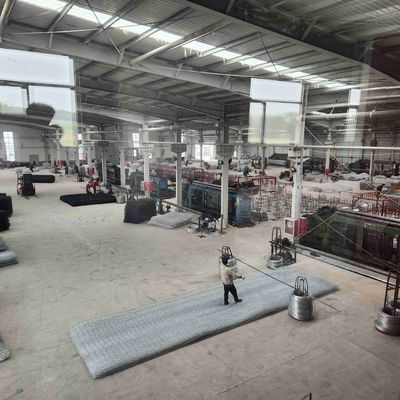

Factory Display
2.7mm HDP Galvanized Gabion Wall Double Twist Gabion Stone Wall Cage 3
2.7mm HDP Galvanized Gabion Wall Double Twist Gabion Stone Wall Cage 4
