Woven Gabion Wall HDG Mesh For Hydraulic Riverbank Retaining Wall Construction

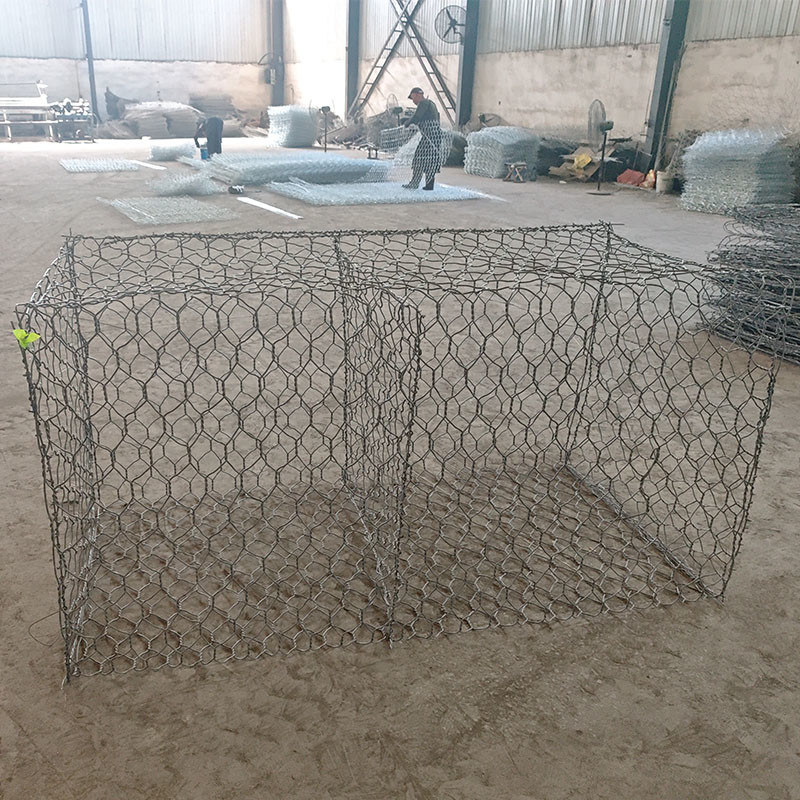

Large Image : Woven Gabion Wall HDG Mesh For Hydraulic Riverbank Retaining Wall Construction

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	KN-gabion wall

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 35-50
Packaging Details:	pallet
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 pc per day

Contact Now Chat Now

Detailed Product Description

Product Name:	Woven Gabion HDG Mesh For Hydraulic Riverbank Retaining Wall Construction	Key Words:	Gabion Wall
Tensile Strength:	350-500N/mm²	Color:	Green,black,
Mesh Type:	Hexagonal	Size:	2m X 1m X 1m
Payment:	T/T Or L/C	Mesh Hole:	68cm,810cm...
Type:	Hexagonal Wire Mesh, Double Twist	Wire Diameter:	2.0-4.0mm
Highlight:	woven gabion wall , woven gabion box , riverbank gabion box

Woven Gabion Wall HDG Mesh For Hydraulic Riverbank Retaining Wall Construction

Woven Gabion HDG Mesh for Hydraulic Riverbank Retaining Wall Construction

Woven Gabion Wall, formed with double-twisted hexagonal steel wire (Hot-Dip Galvanized/Galfan-coated), is utilized in hydraulic engineering for constructing weir foundations, harbor breakwaters, and drainage channel reinforcement. Its flexible mesh structure supports rock or concrete fill to dissipate hydraulic energy in tidal barrier systems, storm surge protection, and irrigation canal embankments. Compliant with EN 10223-3 specifications, modular units (1.5x1x0.5m to 3x2x1m) enable rapid deployment in sediment control basins, culvert headwalls, and river delta stabilization projects under dynamic aquatic conditions.

Key Features

Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages

3x Lifespan: 50-100 years corrosion resistance
Load Capacity: Up to 50kN/m² vertical pressure
Eco-Friendly: 100% recyclable materials with zero chemical runoff
Modular Assembly: Interlocking panels for 70% faster installation

Applications

Civil Engineering: Riverbank stabilization, highway embankments
Architecture: Retaining walls, sound barriers, decorative façades
Disaster Prevention: Flood control barriers, landslide mitigation systems
Mining: Tailings dam reinforcement, slope retention

Customization Services

Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
Wire Diameters: 2.2mm - 4.0mm (3.0mm recommended for high-load zones)
Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)

Gabion Specifications

	Mesh hole model
	8x10cm	6x8cm
Length(m)	Width(m)	Height(m)	Galvanized or PVC coated	Galvanized or PVC coated
2	1	1	2.7mm >245g/m²	2.0mm >215g/m²
3	1	1	3.4mm >265g/m²	2.7mm >245g/m²
4	1	1	Binding wire diameter of 2.7m
6	1	1	Binding wire diameter of 2.0m
