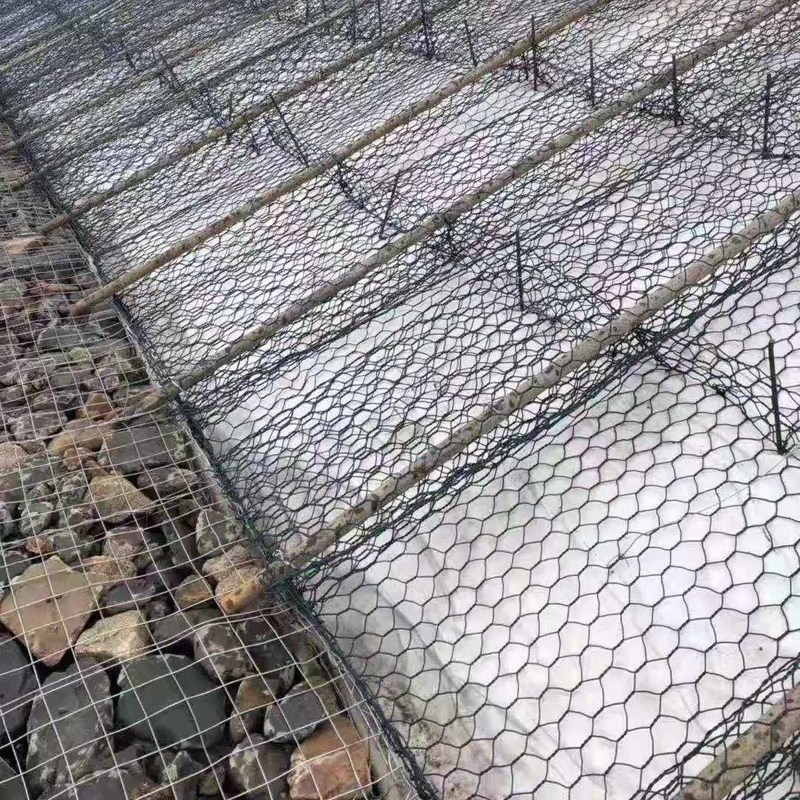

Rockfall Granite Slope Gabion Wall Retaining Walls Blocks 200x100x50mm Easily Assembled

Large Image : Rockfall Granite Slope Gabion Wall Retaining Walls Blocks 200x100x50mm Easily Assembled

Product Details:

Place of Origin:	CHINA
Brand Name:	KN
Certification:	ISO CE
Model Number:	2X1X1

Payment & Shipping Terms:

Minimum Order Quantity:	100 PC
Price:	USD 15-20
Packaging Details:	pallets
Delivery Time:	8-10 days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	5000 m2 per day

Contact Now Chat Now

Detailed Product Description

Features:	Flexible, Durable, Corrosion Resistant	Wire Diameter:	2.0-4.0 Mm
Tensile Strength:	350-500 N/mm²	Mesh Size:	60x80 Mm 80X100mm 100x120mm
Diaphragm:	1 M	Packing:	Pallet Or Bundle
Application:	Retaining Wall, Flood Control, Erosion Control	Material:	Galvanized Steel Wire
Surface Treatment:	Hot-dipped Galvanized	Lacing Wire:	2.2 Mm
Color:	Silver	Zinc Coating:	≥ 270 G/m²
Assembly:	Easily Assembled	Panel Size:	2x1x1 M
Spiral Wire:	2.2 Mm
Highlight:	Easily Assembled slope gabion wall , slope gabion mattress , 200x100x50mm gabion wall

Rockfall Granite Slope Gabion Wall Retaining Walls Blocks 200x100x50mm Easily Assembled

Galvanized Iron Wire Stone Gabion Cage Hexagonal Hole Shape Wall Gabion Box Woven Gabion Mesh

Manufactured using double-twisted steel wire (3.0-4.5mm diameter) with heavy galvanization (≥245g/m²), our woven gabion walls are engineered for critical hydraulic applications. The hexagonal mesh (80×100mm openings) forms permeable retaining structures when filled with graded stone, designed for shoreline stabilization, spillway channel protection, and reservoir embankments. Standard units (1m×1m×1m) incorporate internal diaphragms for structural stability in high-flow environments. Compliant with ASTM A975 specifications, these walls adapt to subgrade variations while mitigating erosion in rivers, canals, and coastal zones. Custom heights (1-4m) and lengths available for large-scale water management installations.

Specifications

Type	Mesh Size	Wire Diameter	Zinc Coating
Retaining Wall	80x100mm 100x120mm	2.7 mm	>260g/m²
Selveage Wire	-	3.4 mm	>275g/m²
Tie Wire	-	2.2 mm	>240g/m²
Sack Gabion box	60x80mm	2.4 mm	>240g/m²
Flood Control	Customized Size	2.0 ~ 4.0 mm	-

Key Features and Benefits

Durability and Longevity: Constructed with galvanized steel or PVC-coated wires, our Gabion Walls are highly durable and require little maintenance.
Permeability: The design allows water to pass through while retaining soil and stones, preventing water buildup and reducing erosion risk.
Flexibility and Adaptability: Can be configured in various shapes and sizes to fit any terrain or project requirements.
Environmental Friendliness: Can be filled with locally sourced materials, reducing transportation costs and supporting biodiversity.
Aesthetic Appeal: Natural stone appearance blends seamlessly with surrounding environments.

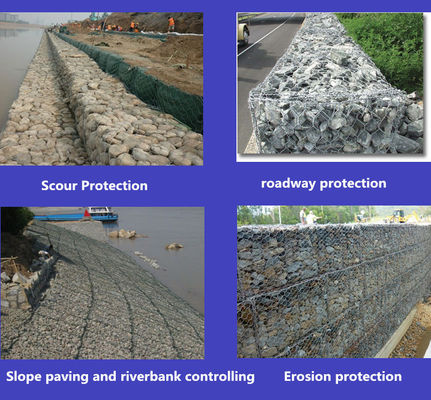

Applications

Soil stabilization and slope protection
Riverbank and coastal erosion control
Retaining walls for roads, bridges, and dams
Noise barriers in urban areas
Landscaping and decorative purposes

Company Strengths

Our company has extensive experience in constructing government engineering projects. We have a proven track record of delivering high-quality Gabion Wall solutions that meet strict engineering standards. Our team of experts ensures that each project is carefully designed and executed to provide long-lasting results.
