Galvanized Steel Welded Mesh Gabions Wire Mesh Gabion Basket

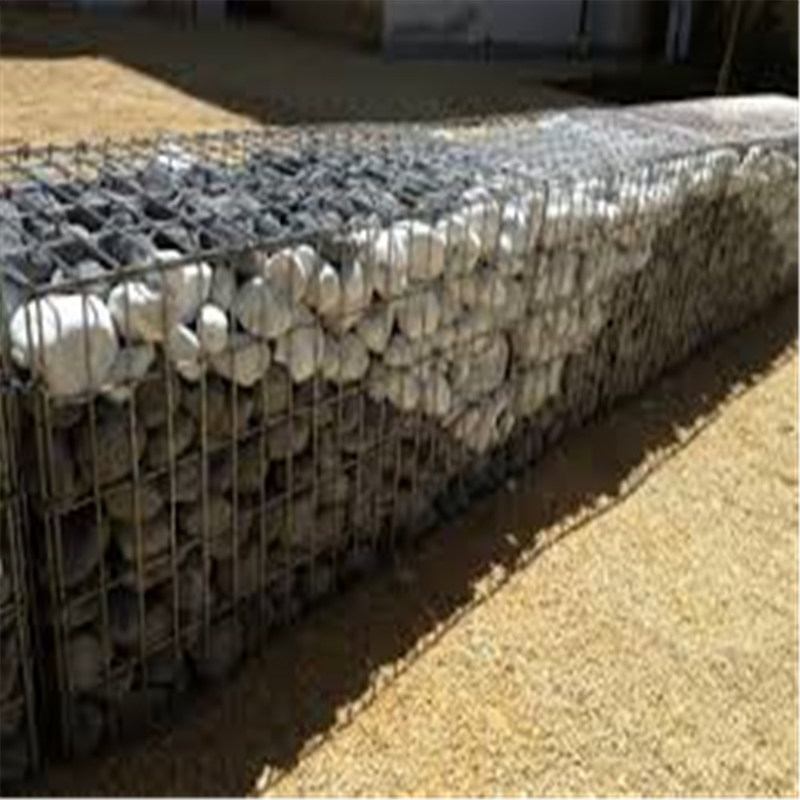

Large Image : Galvanized Steel Welded Mesh Gabions Wire Mesh Gabion Basket

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	KN-welded gabion

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 35-50
Packaging Details:	pallet
Delivery Time:	10 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 pc per day

Contact Now Chat Now

Detailed Product Description

Product Name:	Galvanized Steel Welded Mesh Gabions , Wire Mesh Gabion Basket	Key Words:	Welded Gabion
Helical Wire:	3mm	Edge Wire Diameter:	3.0-4.0mm
Mesh Size:	50x50mm, 75x75mm, 100x100mm	Feature:	Easily Assembled, Anti-corrosion
Pvc Painted Color:	Gray, Dark Green, White	Aperture:	50×50mm, 50×100mm
Highlight:	galvanized welded mesh gabions , galvanized wire mesh gabion basket , welded wire mesh gabion basket

Galvanized Steel Welded Mesh Gabions Wire Mesh Gabion Basket

Galvanized Steel Welded Mesh Gabions, Wire Mesh Gabion Basket produced under the brand name KN is a versatile product suitable for various applications. Manufactured in China with quality welding and assembly techniques, this product offers durability and strength for diverse projects.

Product Specifications

Product Name	Welded Gabion Box
Box Size	1x1x1m, 2x1x1m, 3x1x1m (Custom sizes available)
Process	Woven Mesh
Wire Thickness	3.0mm-5.0mm
Surface Treatment	Hot Dip Galvanized
Mesh Size	50×50 mm, 50×100 mm
Technique	Welded Panel
Primary Usage	Slope Protection

Connection Methods

U-clips
C-ring
Lacing wire connection
Hook connection

Spiral wires & hooks or stiffeners are most popular for their enhanced strength.

Key Advantages

Cost-effective: Simply fill with stones and seal
Easy installation: No special technology required
Weather resistant: Corrosion protection and durability against natural elements
Eco-friendly: Sludge in stones promotes plant growth, blending with natural environment
Hydrostatic protection: Excellent permeability prevents water damage
Transport efficient: Foldable design reduces freight costs
Structural integrity: Maintains form even under significant deformation
