Hexagonal Gabion Wall River Bank Reinforcement Anti Corrosion Steel Mesh CE ISO

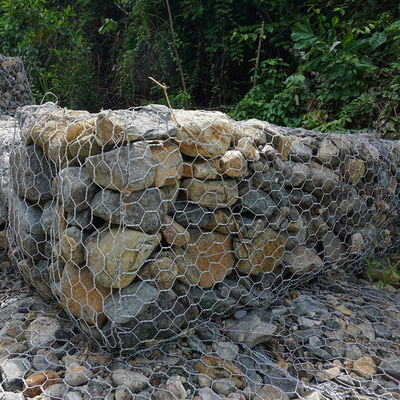

Large Image : Hexagonal Gabion Wall River Bank Reinforcement Anti Corrosion Steel Mesh CE ISO

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	KN-gabion wall

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 15-20
Packaging Details:	pallet
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 pc per day

Contact Now Chat Now

Detailed Product Description

Features:	Flexible, Permeable, Durable, Easy To Install	Product Name:	Hexagonal Gabion Wall River Bank Reinforcement Anti Corrosion Steel Mesh CE ISO
Key Words:	Gabion Wall	Mesh Panel Size:	2x1x1m, 3x1x1m, 4x1x1m
Surface Treatment:	Hot-dipped Galvanized, PVC Coated	Mesh Size:	60x80mm, 80x100mm, 100x120mm
Application:	Retaining Wall, Erosion Control, Flood Control	Assembly Method:	Spiral Wire Connection
Material:	Galvanized Steel Wire	Tensile Strength:	350-500N/mm2
Highlight:	hexagonal gabion wall , gabion wall river bank , hexagonal gabion box

Hexagonal Gabion Wall River Bank Reinforcement Anti Corrosion Steel Mesh CE ISO

Professional woven gabion walls engineered for demanding hydraulic applications with patented double-twist hexagonal weave construction providing exceptional tensile strength (350-500MPa) while maintaining flexibility for ground movement.

Key Applications

River training works
Dam toe protection
Spillway channel lining
Bridge abutment protection

Key Features

Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages

✓ 3x Lifespan: 50-100 years corrosion resistance

✓ Load Capacity: Up to 50kN/m² vertical pressure

✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff

✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

Civil Engineering: Riverbank stabilization, highway embankments
Architecture: Retaining walls, sound barriers, decorative façades
Disaster Prevention: Flood control barriers, landslide mitigation systems
Mining: Tailings dam reinforcement, slope retention

Customization Services

Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
Wire Diameters: 2.2mm - 4.0mm (3.0mm recommended for high-load zones)
Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)

Gabion Specifications

Mesh Hole Model	8x10cm
Mesh Hole Model	Galvanized or PVC coated	Galvanized or PVC coated
Length(m) × Width(m) × Height(m)	Mesh diameter: 2.7mm Zinc: >245g/m²	Mesh diameter: 2.0mm Zinc: >215g/m²
2 × 1 × 1	Side wire diameter: 3.4mm Zinc: >265g/m²	Side wire diameter: 2.7mm Zinc: >245g/m²
3 × 1 × 1	Binding wire diameter of 2.7m
4 × 1 × 1	Binding wire diameter of 2.0m
6 × 1 × 1
