Combination Geotextile Gabion Rock Fall Netting For Erosion Control Slope Protection

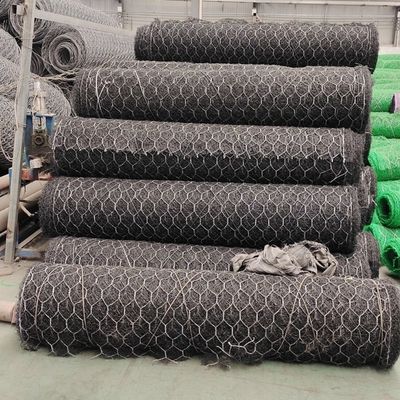

Large Image : Combination Geotextile Gabion Rock Fall Netting For Erosion Control Slope Protection

Product Details:

Place of Origin:	China
Brand Name:	KN
Certification:	CE ISO
Model Number:	2x50m 2x25m

Payment & Shipping Terms:

Minimum Order Quantity:	100roll
Price:	USD 120-140
Packaging Details:	pallets
Delivery Time:	7-10 days
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	1000 pc need 7 days

Contact Now Chat Now

Detailed Product Description

Features:	Flexible, Corrosion Resistant, Easy To Install	Product Name:	Combination Geotextile Gabion Rockfall Netting Galvanized Hexagonal Steel Wire Mesh Grid For Rockfall Erosion Control Iron Wire Mat
Key Words:	Rockfall Netting	Customized:	Avaliable
Wire Diameter:	2.7mm	Zinc:	>245g/m²
Cage Size:	111m,211m,311m,411m	Net Wire:	Popular 2.7mm
Advantages:	Easy Install, Long Using Life	Season:	Everyday
Twist:	Double Twisting	Selvage Wire:	3.4mm
Highlight:	rock fall netting galvanized , geotextile rock fall netting , Rock Fall Netting For Erosion Control

Combination Geotextile Gabion Rock Fall Netting for Erosion Control & Slope Protection

Our Combination Geotextile Gabion Rockfall Netting features galvanized hexagonal steel wire mesh grid designed for effective rockfall erosion control. Engineered for alpine rockfall zones, this solution combines durability with rapid deployment capabilities.

Key Features

Constructed with 4.5mm galvanized steel wire with polyester coating
120x150mm hexagonal cell structure for optimal stone retention
Pre-assembled foldable panels (4m x 8m) for easy installation
Internal cross wires (4.0mm) at 1m spacing for compartmentalization
Anchored via 16mm x 1.8m ground nails in 2x2m grids
Compliant with ISO 17745-2 standards for high-altitude installations
7-day fast delivery available

Technical Specifications

Hole	Zinc Level	Length	Width	Height	Diameter Mesh Wire	Diameter Edge Wire	Diameter Tie Wire	Diaphragm
80 X 100	280	2.0	1.0	1.0	2.70	3.40	2.00	1
81 X 100	280	3.0	1.0	1.0	2.70	3.40	2.00	2
80 X 100	280	1.0	1.0	1.0	2.70	3.40	2.00	0

Project Application Example

Problem: The area experienced shallow landslides due to heavy rainfall, requiring an environmentally friendly stabilization solution.

Solution: A 20m high retaining wall structure using PVC-coated gabions (1x1x1m, 2x1x1m, 1.5x1x1m) and mattresses (6x2x0.3m) was implemented. This solution provided structural integrity while being economical and suitable for construction during rainy seasons.

About HEBEI KN COMPANY

For over 15 years, we have been a leading international provider of advanced solutions for civil, geotechnical, and environmental construction markets. We deliver innovative, long-lasting, and environmentally friendly solutions ranging from retaining walls to hydraulic works and rockfall mitigation systems.

We have global export experience with local knowledge: our clients are never far from technical support.
