3.0mm 4.0mm 5.0mm Anti Rust Welded Gabion Wall Baskets For River Protection

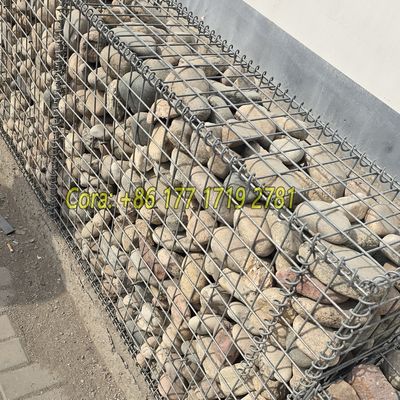

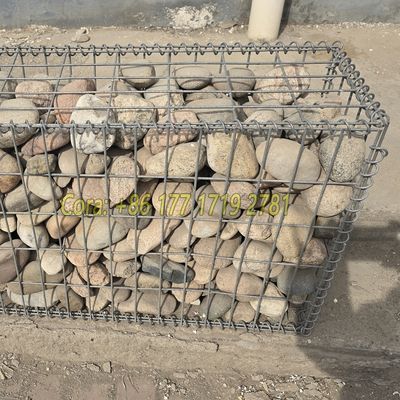

Large Image : 3.0mm 4.0mm 5.0mm Anti Rust Welded Gabion Wall Baskets For River Protection

Product Details:

Place of Origin:	Hengshui
Brand Name:	KN
Certification:	ISO, CE, COC
Model Number:	KNGB01

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	USD 14-20
Packaging Details:	pallet, carton
Delivery Time:	7 working days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	1000 sets per day

Contact Now Chat Now

Detailed Product Description

Material:	Galvanized Wire, Galfan Coated Wire	Wire Thickness:	3mm - 6mm, Also Can Make 8mm
Mesh Hole:	75mm, 3inch, 80mm, 100mm Etc	Out Size:	Based On Client's Requirements
Connection:	Sprial Wire, Or C Nails	Pakcage:	Flat, Use Wooden Pallet
Output:	1000 Sets	Sample:	Free
Highlight:	welded gabion wall baskets , anti rust river retaining wall , River Protection welded gabion baskets

3.0mm 4.0mm 5.0mm Anti Rust Welded Gabion Wall Baskets For River Protection

Low Cost Anti Rust River Protection Retaining Wall Use Welded Gabion Wall Baskets. Produced using square mesh hole panel, welded mesh gabions usually have an opening dimension of 75.0mm × 75.0mm; the longitudinal and cross wires are welded together right at their intersection points.

Welded Gabion produces a dimensionally stable mesh. The mesh is produced in standard sheets which are then cut into the required panel sizes (and partially factory-connected) to form the flat pack unit.

Material Specifications

Material	Galvanized Steel Wire, Galfan Steel Wire/Zinc-5%Aluminum Wire
Wire Diameter	3 mm-6 mm
Aperture	5050 mm, 50100 mm etc
Gabion Box Size	1003030 cm, 1005030 cm, 10010050 cm, 100100100 cm etc.
Finish	Hot Dipped Galvanized; Heavy Zinc Coating; Galfan Coating; PVC Coated.

Standard Gabion Sizes

Normal Box Size(cm)	Diaphragms	Capacity (m3)	Mesh Size(mm)
100x30x30	None	0.09	50×50 or 100×50
100x50x30	None	0.15
100x100x50	None	0.5
100x100x100	None	1
150x100x50	1	0.75
150x100x100	1	1.5
200x100x50	1	1
200x100x100	1	2

Other sizes can be customized.

Gabion Size Notes

It should be noted that it is industry standard for gabions to be quoted as overall nominal sizes. The actual gabion sizing is dependant upon the physical mesh configuration. Clarification should always be sought from the manufacturer in relation to gabion sizing.

Standard Unit Dimensions

Designation of sizes length x width x height
Gabion standard unit lengths: 975mm or 2025mm
Gabion standard unit widths: 450mm, 675mm, 975mm, 1350mm, 1500mm or 1650mm
Gabion standard unit heights: 450mm and 975mm
Non-standard sizes available in multiples of 75mm on request

Application Scenarios

Retaining Walls: Welded mesh gabions are widely used in the construction of retaining walls for stabilizing slopes, preventing soil erosion, and supporting embankments in both residential and commercial projects.
Erosion Control: These gabions are effective in controlling soil erosion along riverbanks, coastlines, and steep slopes by providing a stable, permeable structure that allows water flow while holding back soil.
Flood Protection: Welded mesh gabions can be deployed to create flood barriers or levees, protecting vulnerable areas from floodwaters and reducing damage from excessive rainfall or rising rivers.
Landscaping Features: Gabions are also used in landscaping to create decorative features such as garden walls, seating areas, and planters, combining functionality with aesthetic appeal.
