Hot Dip Galvanized Welded Gabion Wall Baskets For Erosion Control Gabion Wall

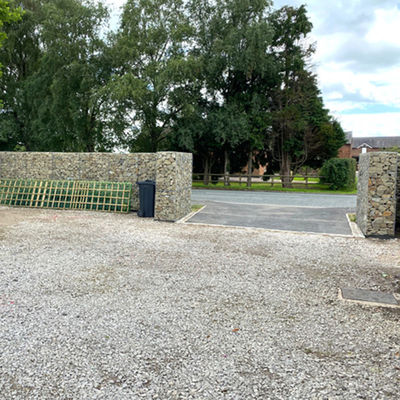

Large Image : Hot Dip Galvanized Welded Gabion Wall Baskets For Erosion Control Gabion Wall

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	KN-welded gabion

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 45-55
Packaging Details:	pallet
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 pc per day

Contact Now Chat Now

Detailed Product Description

Product Name:	Hot Dip Galvanized Welded Gabion Wall Baskets For Erosion Control Gabion Wall	Key Words:	Welded Gabion Baskets
Type:	Welded Gabion	Shape:	Rectangular
Length:	0.3m-2m	Gabion Box Width:	30cm
Zinc Coating:	220-300g/m2	Gabion Box Height:	30cm, 50cm, 80cm, 100cm
Seat Surface Color:	Black/ Brown/ Light Brown	Mesh Wire Diameter:	4mm
Wire Thickness:	4.0mm	Spiral Wire Diameter:	3mm
Highlight:	hot dip galvanized gabion baskets , welded gabion wall for erosion control , galvanized gabion baskets with warranty

Hot Dip Galvanized Welded Gabion Wall Baskets For Erosion Control Gabion Wall

These welded gabion baskets feature hot-dip galvanized steel mesh forming structural yet decorative walls for garden slope management. The rigid panels create terraced planters that stabilize soil while displaying ornamental grasses, succulents, or cascading flowers. Designed for landscaped gradients, the open mesh supports root systems and natural drainage. Customizable in heights (30-80cm) for creating tiered floral arrangements or retaining elevated garden beds. The zinc-coated finish provides durability while maintaining a subtle metallic backdrop for vegetation. Used in residential gardens to combine erosion prevention with aesthetic planting solutions.

Welded Gabion Basket Details

Panel: High quality galvanized panel of 50×50 or 75×75 mesh size
Spiral wires: Good quality for same wire diameter as panel
Stiffeners: 4-8 stiffeners per gabion to ensure structural strength

Technical Specifications

Type of Welded Gabion	Wire Gauge Diameter	Mesh Size	Gabion Size
Galvanized	3-5mm	50×50, 75×75, 50×100	2×1×1, 1×1×1, 1×1×0.5, etc
PVC Coated	3.0/3.8mm	50×50, 75×75, 50×100	2×1×1, 1×1×1, 2×1×0.5, etc
95% Zinc + 5% Al	3-5mm	50×100, 75×75, 100×100	1×1×0.5, 2×1×1, 1×1×0.3, etc

Connection Methods

U-clips
C-ring
Lacing wire connection
Hook connection

Spiral wires & hooks or stiffeners are most popular due to their superior strength for practical applications.

Key Advantages

High Structural Strength: Welded mesh provides superior load-bearing capacity (50% higher than woven gabions), ideal for steep slopes and heavy-duty applications.
Precision Geometry: Uniform grid patterns (e.g., 50×50mm, 100×100mm) ensure clean aesthetics for architectural and landscape designs.
Enhanced Durability: Hot-dip galvanization (≥260g/m² zinc coating) offers 25-30 years of corrosion resistance in harsh environments.
Rapid Installation: Modular design with clasp or spiral fastening systems reduces assembly time by 40% compared to woven alternatives.
Multifunctionality: Supports both stone filling (for erosion control) and soil planting (for green walls), blending functionality with ecology.
Low Maintenance: Stable structure minimizes deformation and long-term upkeep costs.
