Hot Dip Galvanized Welded Gabion Wall Baskets For Efficient Retaining Wall

Hot Dip Galvanized Welded Gabion Wall Baskets For Efficient Retaining Wall
Hot Dip Galvanized Welded Gabion Wall Baskets For Efficient Retaining Wall Hot Dip Galvanized Welded Gabion Wall Baskets For Efficient Retaining Wall

Large Image :  Hot Dip Galvanized Welded Gabion Wall Baskets For Efficient Retaining Wall

Product Details:
Place of Origin: CN
Brand Name: KN
Certification: CE ISO SGS COC PVOC
Model Number: KN-welded gabion
Payment & Shipping Terms:
Minimum Order Quantity: 100 pc
Price: USD 45-55
Packaging Details: pallet
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 pc per day
Contact Now Chat Now
Detailed Product Description
Product Name: Hot Dip Galvanized Welded Gabion Wall Baskets For Efficient Retaining Wall Key Words: Welded Gabion Baskets
Type: Welded Gabion Shape: Rectangular
Length: 0.3m-2m Gabion Box Width: 30cm
Zinc Coating: 220-300g/m2 Gabion Box Height: 30cm, 50cm, 80cm, 100cm
Seat Surface Color: Black/ Brown/ Light Brown Mesh Wire Diameter: 4mm
Wire Thickness: 4.0mm Spiral Wire Diameter: 3mm
Highlight:

hot dip galvanized gabion baskets

,

welded gabion retaining wall

,

galvanized gabion wall baskets

Hot Dip Galvanized Welded Gabion Wall Baskets For Efficient Retaining Wall

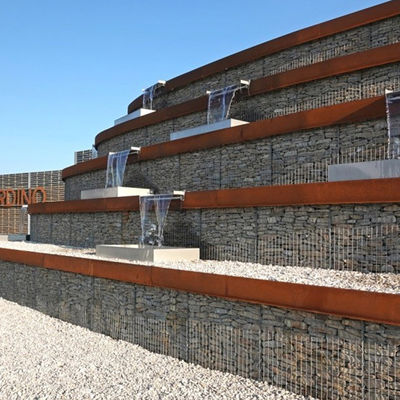

Crafted from welded steel mesh with hot-dip galvanized coating, these gabion baskets form durable retaining walls for sloped garden terraces and landscaped planting areas. The rigid rectangular units provide structural support for soil containment while creating tiered platforms for decorative vegetation.
Designed to integrate with garden topography, the baskets allow drainage and root penetration through their open mesh design. Custom heights (40-120cm) and widths adapt to gradient changes in residential and commercial landscapes. The zinc-coated finish offers corrosion resistance while blending subtly with organic materials. Used for stabilizing elevated flower beds, sculpted garden slopes, or as architectural planting ledges.
Welded Gabion Basket Specifications:
  • Panel: High quality galvanized panel of 50×50 or 75×75 mesh size
  • Spiral wires: Good quality with same wire diameter as panel
  • Stiffeners: 4-8 stiffeners per gabion for enhanced strength
Technical Specifications:
Type of Welded Gabion Wire Gauge Diameter Mesh Size Gabion Size
Galvanized 3-5mm 50×50, 75×75, 50×100 2×1×1, 1×1×1, 1×1×0.5, etc
PVC Coated 3.0/3.8mm 50×50, 75×75, 50×100 2×1×1, 1×1×1, 2×1×0.5, etc
95% Zinc + 5% Al 3-5mm 50×100, 75×75, 100×100 1×1×0.5, 2×1×1, 1×1×0.3, etc
Connection Methods:
  • U-clips
  • C-ring
  • Lacing wire connection
  • Hook connection
The spiral wires & hooks or stiffeners are most popular as they provide superior strength for practical usage.
Key Advantages:
  • Economical - Simply fill with stones and seal
  • Simple installation requiring no special technology
  • Weatherproof and corrosion resistant under natural conditions
  • Sludge in stones promotes plant growth, blending with natural environment
  • Excellent permeability prevents hydrostatic damage
  • Reduced transport costs - can be folded for transport and installation
  • Maintains structural integrity even under significant deformation
Hot Dip Galvanized Welded Gabion Wall Baskets For Efficient Retaining Wall 0

Tag:

galvanized welded gabion,

gabion welded wire mesh,

galvanized gabion mesh
