50x200mm Aperture Welded Mesh Gabion Box Noise Barriers For Landscape

50x200mm Aperture Welded Mesh Gabion Box Noise Barriers For Landscape
50x200mm Aperture Welded Mesh Gabion Box Noise Barriers For Landscape 50x200mm Aperture Welded Mesh Gabion Box Noise Barriers For Landscape

Large Image :  50x200mm Aperture Welded Mesh Gabion Box Noise Barriers For Landscape

Product Details:
Payment & Shipping Terms:
Price: USD 40-55
Contact Now Chat Now
Detailed Product Description
Features: Easy Install,long Time Life Box Size: 0.5x0.5m,1.0x0.5x0.5m,1x1x1m,2x1x1m
Type: Welded Mesh,Welded Gabion Hole Shape: Square,Rectangular
Corrosion Resistance: High Installation: Easy And Quick
Environmental Friendliness: Recyclable Product_Name: Welded Mesh Gabion
Material: Galvanized Steel Wire Connectivity: Helical Wire
Highlight:

50x200mm Welded Mesh Gabion Box

,

Mesh Gabion Box Noise Barriers

,

landscape welded gabion box

50x200mm Aperture Welded Mesh Gabion Box Noise Barriers For Landscape
Heavy Gauge 5.0mm Galvanized Welded Mesh Gabion Box designed for urban noise reduction and landscape applications. These versatile structures combine functionality with aesthetic appeal for various civil engineering and architectural projects.
Urban Utility
In urban environments, welded gabion boxes serve as effective noise barriers along busy roads, reducing noise pollution while enhancing residents' comfort. They also function as attractive boundary walls, providing both security and design flexibility.
Material Specifications
Material Galvanized Steel Wire, Galfan Steel Wire/Zinc-5%Aluminum Wire
Wire Diameter 3 mm-6 mm
Aperture 50*50 mm, 50*100 mm etc
Finish Hot Dipped Galvanized; Heavy Zinc Coating; Galfan Coating; PVC Coated
Standard Gabion Box Sizes
Normal Box Size (cm) Diaphragms Capacity (m3) Mesh Size (mm)
100x30x30 None 0.09 50×50 or 100×50
100x50x30 None 0.15
100x100x50 None 0.5
100x100x100 None 1
150x100x50 1 0.75
150x100x100 1 1.5
200x100x50 1 1
200x100x100 1 2
Note: Other sizes can be customized according to project requirements.
Application Scenarios
  • Retaining Walls: Stabilize slopes, prevent soil erosion, and support embankments in residential and commercial projects.
    50x200mm Aperture Welded Mesh Gabion Box Noise Barriers For Landscape 0
  • Erosion Control: Effective solution for riverbanks, coastlines, and steep slopes with permeable structure that allows water flow while holding soil.
    50x200mm Aperture Welded Mesh Gabion Box Noise Barriers For Landscape 1
  • Flood Protection: Create flood barriers or levees to protect vulnerable areas from floodwaters.
    50x200mm Aperture Welded Mesh Gabion Box Noise Barriers For Landscape 2
  • Landscaping Features: Decorative garden walls, seating areas, and planters combining functionality with aesthetic appeal.
    50x200mm Aperture Welded Mesh Gabion Box Noise Barriers For Landscape 3
Technical Specifications
  • Fabric Type: Galvanized welded mesh
  • Tensile Strength (wire): Welded: 540 to 770 N/mm²
  • Weld Strength: 75% of the minimum ultimate tensile strength of the wire
  • Available wire thicknesses: 3.0mm, 4.0mm, 5.0mm

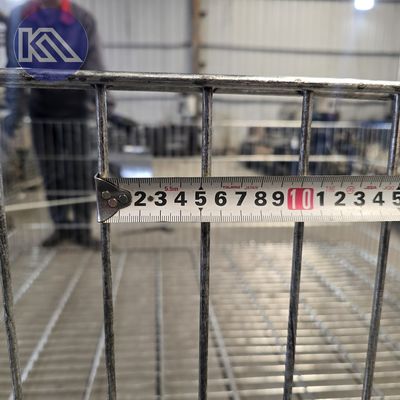

  • Mesh Aperture: 75x75mm, 50x50mm, 50x100mm, 50x200mm
  • Standard basket lengths: 1000mm, 1500mm or 2000mm, 500mm etc
  • Standard basket widths: 450mm, 500mm, 300mm, 200mm, 1000mm, 1500mm
  • Standard basket heights: 500mm, 1000mm
  • Bespoke Sizes Available for custom project requirements
Product Gallery
50x200mm Aperture Welded Mesh Gabion Box Noise Barriers For Landscape 4
50x200mm Aperture Welded Mesh Gabion Box Noise Barriers For Landscape 5
50x200mm Aperture Welded Mesh Gabion Box Noise Barriers For Landscape 6
50x200mm Aperture Welded Mesh Gabion Box Noise Barriers For Landscape 7
50x200mm Aperture Welded Mesh Gabion Box Noise Barriers For Landscape 8
