Heavy Gauge 5.0mm Welded Mesh Gabion Baskets 100x30x100cm Landscape Retaining Wall

Heavy Gauge 5.0mm Welded Mesh Gabion Baskets 100x30x100cm Landscape Retaining Wall
Heavy Gauge 5.0mm Welded Mesh Gabion Baskets 100x30x100cm Landscape Retaining Wall Heavy Gauge 5.0mm Welded Mesh Gabion Baskets 100x30x100cm Landscape Retaining Wall

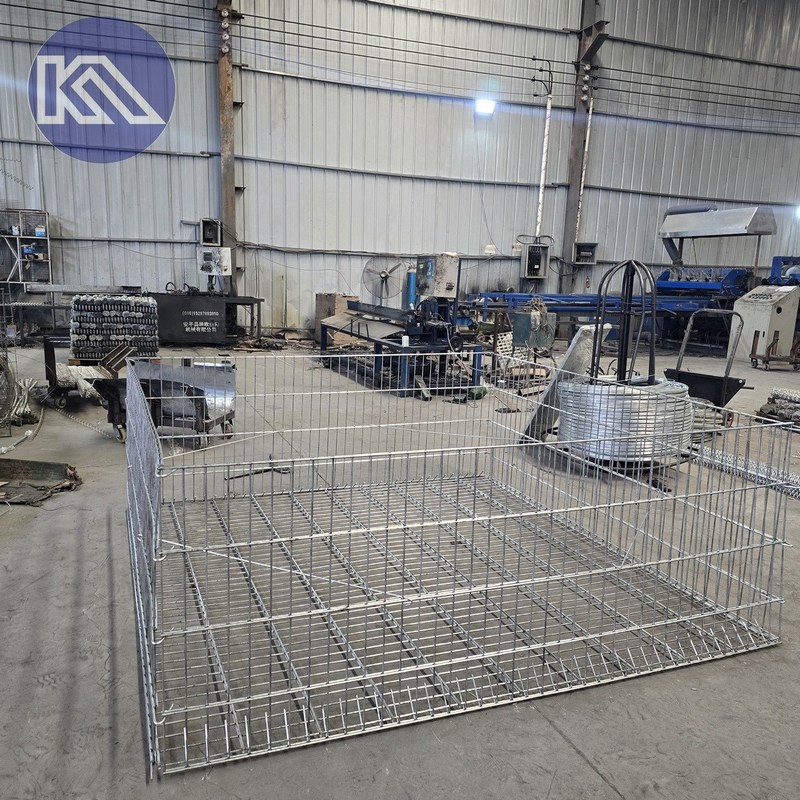

Large Image :  Heavy Gauge 5.0mm Welded Mesh Gabion Baskets 100x30x100cm Landscape Retaining Wall

Product Details:
Payment & Shipping Terms:
Price: USD 40-55
Contact Now Chat Now
Detailed Product Description
Highlight:

landscape welded gabion mesh

,

5.0mm Welded Mesh Gabion Baskets

,

Mesh Gabion Baskets 100x30x100cm

Heavy Gauge 5.0mm Welded Mesh Gabion Baskets 100x30x100cm Landscape Retaining Wall
Heavy Gauge 5.0mm Galvanized Welded Mesh Gabion Box. Welded gabion boxes provide practical and aesthetic solutions for gardens and outdoor spaces, including decorative walls, benches, and planters. They also serve functional purposes like erosion control along riverbanks and noise reduction in urban areas.
Material Specifications
Material Galvanized Steel Wire, Galfan Steel Wire/Zinc-5%Aluminum Wire
Wire Diameter 3 mm-6 mm
Aperture 50*50 mm, 50*100 mm etc
Gabion Box Size 100*30*30 cm, 100*50*30 cm, 100*100*50 cm, 100*100*100 cm etc.
Finish Hot Dipped Galvanized; Heavy Zinc Coating; Galfan Coating; PVC Coated.
Standard Dimensions
Normal Box Size (cm) Diaphragms Capacity (m3) Mesh Size (mm)
100x30x30 None 0.09 50×50 or 100×50
100x50x30 None 0.15
100x100x50 None 0.5
100x100x100 None 1
150x100x50 1 0.75
150x100x100 1 1.5
200x100x50 1 1
200x100x100 1 2
Other sizes can be customized.
Applications
  • Retaining Walls: Stabilize slopes, prevent soil erosion, and support embankments in residential and commercial projects.
  • Erosion Control: Protect riverbanks, coastlines, and steep slopes with stable, permeable structures.
  • Flood Protection: Create effective barriers against floodwaters and excessive rainfall.
  • Landscaping Features: Design decorative garden walls, seating areas, and planters with functional appeal.
Heavy Gauge 5.0mm Welded Mesh Gabion Baskets 100x30x100cm Landscape Retaining Wall 0
Heavy Gauge 5.0mm Welded Mesh Gabion Baskets 100x30x100cm Landscape Retaining Wall 1
Heavy Gauge 5.0mm Welded Mesh Gabion Baskets 100x30x100cm Landscape Retaining Wall 2
Heavy Gauge 5.0mm Welded Mesh Gabion Baskets 100x30x100cm Landscape Retaining Wall 3
Technical Specifications
  • Fabric Type: Galvanized welded mesh
  • Tensile Strength (wire): 540 to 770 N/mm²
  • Weld Strength: 75% of the minimum ultimate tensile strength of the wire
  • Available wire thicknesses: 3.0mm, 4.0mm, 5.0mm
  • Mesh Aperture: 75x75mm, 50x50mm, 50x100mm, 50x200mm
  • Standard basket lengths: 1000mm, 1500mm or 2000mm, 500mm etc
  • Standard basket widths: 450mm, 500mm, 300mm, 200mm, 1000mm, 1500mm
  • Standard basket heights: 500mm, 1000mm
  • Bespoke Sizes Available
Product Gallery
Heavy Gauge 5.0mm Welded Mesh Gabion Baskets 100x30x100cm Landscape Retaining Wall 4
Heavy Gauge 5.0mm Welded Mesh Gabion Baskets 100x30x100cm Landscape Retaining Wall 5
Heavy Gauge 5.0mm Welded Mesh Gabion Baskets 100x30x100cm Landscape Retaining Wall 6
Heavy Gauge 5.0mm Welded Mesh Gabion Baskets 100x30x100cm Landscape Retaining Wall 7
Heavy Gauge 5.0mm Welded Mesh Gabion Baskets 100x30x100cm Landscape Retaining Wall 8
