2×1×1m Stone Filled Galvanized Gabion Mesh Wall Easily Assembled For Wall Protection

2×1×1m Stone Filled Galvanized Gabion Mesh Wall Easily Assembled For Wall Protection
2×1×1m Stone Filled Galvanized Gabion Mesh Wall Easily Assembled For Wall Protection 2×1×1m Stone Filled Galvanized Gabion Mesh Wall Easily Assembled For Wall Protection 2×1×1m Stone Filled Galvanized Gabion Mesh Wall Easily Assembled For Wall Protection

Large Image :  2×1×1m Stone Filled Galvanized Gabion Mesh Wall Easily Assembled For Wall Protection

Product Details:
Place of Origin: China
Brand Name: KN
Certification: CE, ISO, COC,BESC
Model Number: KNG01
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 12 - 18
Packaging Details: pallet or bundle
Delivery Time: 7
Payment Terms: L/C,Western Union,MoneyGram,T/T
Supply Ability: 10 Days can produce around 3 pieces of 40ft container
Contact Now Chat Now
Detailed Product Description
Using Life: 275g Zinc Coating Can Reach More Than 20 Years Key Word: Gabion Wire Mesh, Gabion Basket, Gabion Box

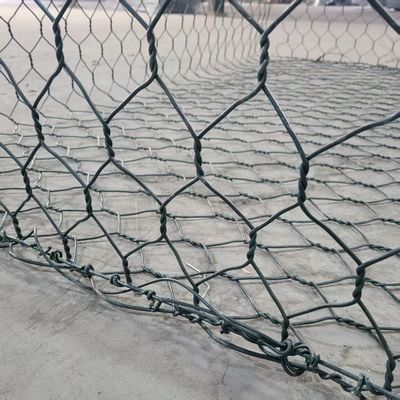

Material: Hot Dipped Galvanized Wire, Galfan Wire Hole Shape: Hexagonal, Double Twist
Wire Gauge: 2..2 - 3.05 Mm Application: Slope Protection, Gabion Retaining Wall
Type: Hexagonal Wire Mesh, Double Twist Aperture: 80*100mm,100*120mm, 60*80mm,etc,
Surface Treatment: Hot Dipped Galvanized, PVCcoated, Galvanized+PVC Coated Product Name: Gabion Box, Gabion Box Wire Mesh,Gabion Basket,Hot Sale 2x1x1m PVC Coated Heavy Duty Gabion
Size: 2m*1m*1m,1x1x0.5m,4*1*1m,5*1*1,Customized, Feature: Easily Assembled,less Transport Freight,Strong And Durable, Simple Installation
Highlight:

easily assembled galvanized gabion mesh wall

,

stone filled Gabion Mesh Wall

,

2×1×1m gabion wall protection

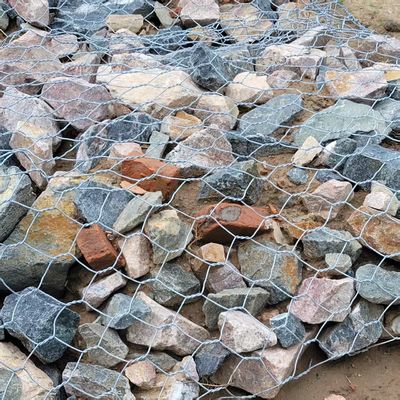

2×1×1m Stone Filled Galvanized Gabion Mesh Wall Easily Assembled For Wall Protection
Durable Stone Filled Galvanized Gabion Mesh Wall for Gabion Wall Protection
A gabion (from Italian gabbione meaning "big cage") is a cage, cylinder, or cube, typically mesh, filled with solid material suitable for various civil engineering and military applications. Ballasts include rocks, sand, soil, used tires, and other recycled items.
Environmental Benefits
  • Carbon-Light Construction: Wire and stone only—no cement, so embodied CO₂ is a fraction of a concrete wall. Local stone fill slashes transport emissions.
  • Instant Habitat Creation: Free-draining rock face becomes a vertical reef for mosses, lichens, grasses and shrubs. Cavities between stones shelter insects, lizards and small mammals.
  • Water-Smart Engineering: Permeable structure eliminates hydrostatic pressure and surface runoff, recharging groundwater instead of dumping it into storm drains.
  • Soil & Slope Healing: Root systems from colonising plants knit rock and soil together, increasing shear strength year after year.
  • 100% Recyclable: Galvanised-PVC wire is fully recyclable. Stone fill can be reused on-site or returned to nature.
  • Chemical-Free Longevity: Triple-sealed zinc + UV-proof PVC skin prevents rust without paints or solvents.
2×1×1m Stone Filled Galvanized Gabion Mesh Wall Easily Assembled For Wall Protection 0
Product Specifications
Regular Size Mesh Size
Length (m) | Width (m) | Height (m) 8cm * 10cm | 6cm * 8cm
Galvanized or PVC Coated Galvanized or PVC Coated
Mesh Wire | Zinc Wire Mesh Wire | Zinc Wire
2 | 1 | 1 | 2.7mm | ＞245g 2.0mm | ＞215g
3 | 1 | 1 | Edge Wire | Zinc Weight 2.7mm | ＞245g
4 | 1 | 1 | 3.4mm | ＞265g Lance Wire: 2.0mm
6 | 1 | 1 | Lance Wire: 2.2mm
2×1×1m Stone Filled Galvanized Gabion Mesh Wall Easily Assembled For Wall Protection 1
Product Applications
2×1×1m Stone Filled Galvanized Gabion Mesh Wall Easily Assembled For Wall Protection 2 2×1×1m Stone Filled Galvanized Gabion Mesh Wall Easily Assembled For Wall Protection 3 2×1×1m Stone Filled Galvanized Gabion Mesh Wall Easily Assembled For Wall Protection 4 2×1×1m Stone Filled Galvanized Gabion Mesh Wall Easily Assembled For Wall Protection 5 2×1×1m Stone Filled Galvanized Gabion Mesh Wall Easily Assembled For Wall Protection 6 2×1×1m Stone Filled Galvanized Gabion Mesh Wall Easily Assembled For Wall Protection 7
  • Erosion Control: Stabilizes slopes and riverbanks, preventing soil erosion while allowing proper water drainage.
  • Retaining Walls: Secures hillside soil while adding a natural aesthetic to landscapes.
  • Flood Protection: Forms durable barriers that divert water flow, reducing flood risk.
  • Coastal Defense: Stabilizes shorelines against wave action and erosion.
  • Road and Highway Embankments: Reinforces embankments, reducing landslide likelihood.
  • Bridge Abutments and Foundations: Strengthens structural components in bridge construction.
Technical Specifications
Parameter Description Typical Value / Range
Material Base material used for constructing the mesh HDP/Galvanized Wire, PVC Wire
Coating Surface treatment for enhanced corrosion resistance Galvanized, HDP Galvanized, PVC Coated
Wire Diameter The thickness of the wires used in the mesh Mesh Wire: 2.0~3.05mm
Selvage Wire: 2.4~4.0mm
Tie Wire: 2.0~2.4mm
Mesh Opening Size The size of the openings between wires 60*80mm, 80*100mm, 100*120mm, 120*150mm
Overall Dimensions Standard Gabion Roll and Gabion Basket Size Gabion Roll Width: 1~4m
Gabion Basket: 1*1*1m to 6*1*1m
Lifespan Expected service life 6~20 years, depending on environment
Metal Options
  • Galvanized Wire: zinc weight from 40g to 280g per square meter
  • Aluminum-Zinc Coated Wire (Alu 5% or Al 10%): zinc weight from 200g to 500g per square meters
2×1×1m Stone Filled Galvanized Gabion Mesh Wall Easily Assembled For Wall Protection 8

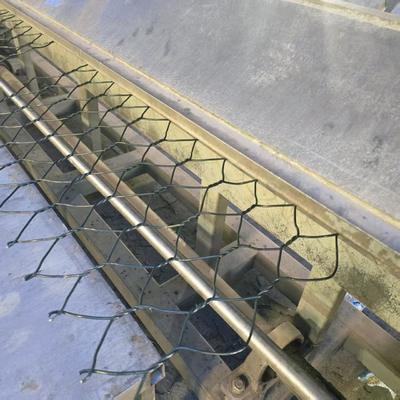

Workshop Showcase
2×1×1m Stone Filled Galvanized Gabion Mesh Wall Easily Assembled For Wall Protection 9 2×1×1m Stone Filled Galvanized Gabion Mesh Wall Easily Assembled For Wall Protection 10 2×1×1m Stone Filled Galvanized Gabion Mesh Wall Easily Assembled For Wall Protection 11 2×1×1m Stone Filled Galvanized Gabion Mesh Wall Easily Assembled For Wall Protection 12 2×1×1m Stone Filled Galvanized Gabion Mesh Wall Easily Assembled For Wall Protection 13 2×1×1m Stone Filled Galvanized Gabion Mesh Wall Easily Assembled For Wall Protection 14
Factory Overview
2×1×1m Stone Filled Galvanized Gabion Mesh Wall Easily Assembled For Wall Protection 15
2×1×1m Stone Filled Galvanized Gabion Mesh Wall Easily Assembled For Wall Protection 16
