Hexagonal Wire Mesh Wall Netting Gabion Basket 80mmx100mm For Seawall Protection

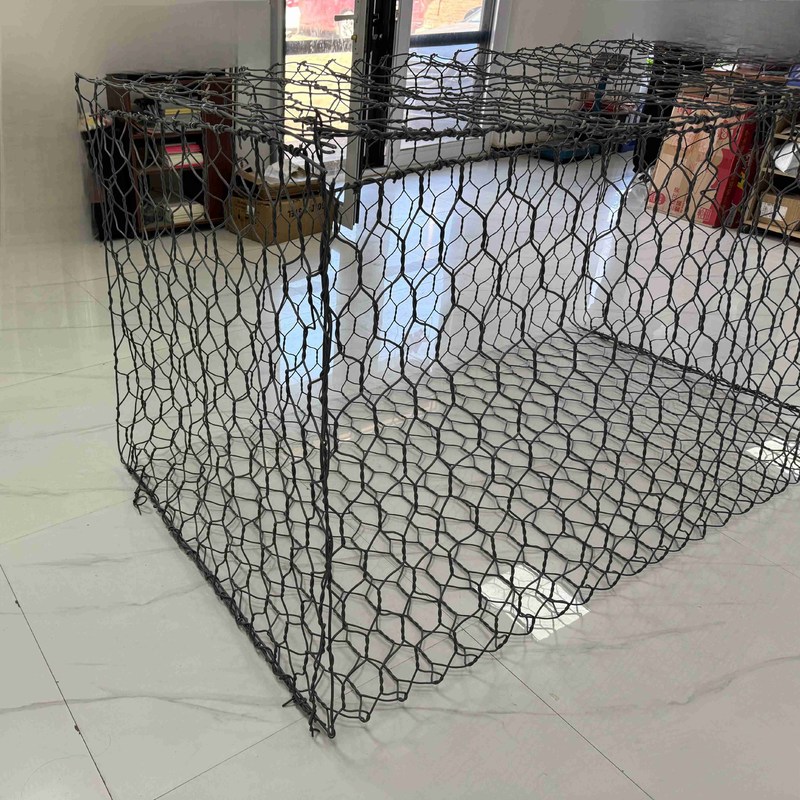

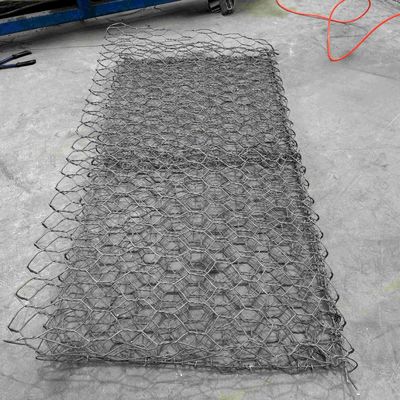

Large Image : Hexagonal Wire Mesh Wall Netting Gabion Basket 80mmx100mm For Seawall Protection

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	KN-gabion wire mesh

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 35-45
Packaging Details:	pallet
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 pc per day

Contact Now Chat Now

Detailed Product Description

Product Name:	Hexagonal Wire Mesh Wall Netting Gabion Basket / Box With Diaphragms For Seawall Protection	Key Words:	Gabion Wire Mesh
Diameter:	2.0mm-4.0mm	Package:	With Pallet, Or As Per Requirement
Lacing Wire:	2.0mm	Application:	Retaining Walls, Erosion Control, River Training, Landscaping, Etc.
Wire Diameter:	2.0-4.0mm	Edge Wire:	2.2mm
Mesh Type:	80mm*100mm
Highlight:	hexagonal wire mesh gabion basket , gabion box with diaphragms , seawall protection wire mesh Gabion

Hexagonal Wire Mesh Wall Netting Gabion Basket 80mmx100mm For Seawall Protection

Hexagonal Wire Mesh Wall Netting Gabion Basket/Box With Diaphragms provides effective seawall protection and soil erosion control. These box containers or baskets filled with rock are widely used in civil engineering, particularly for roadway drainage structures and riverbank stabilization. Their environmental benefits have led to expanded applications across various industries.

Key Features

Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages

3x Lifespan: 50-100 years corrosion resistance
Load Capacity: Up to 50kN/m² vertical pressure
Eco-Friendly: 100% recyclable materials with zero chemical runoff
Modular Assembly: Interlocking panels for 70% faster installation

Applications

Civil Engineering: Riverbank stabilization, highway embankments
Architecture: Retaining walls, sound barriers, decorative façades
Disaster Prevention: Flood control barriers, landslide mitigation systems
Mining: Tailings dam reinforcement, slope retention

Gabion wire mesh serves multiple protective functions including slope protection, foundation pit support, and network shotcreting on rock surfaces. The versatile design allows for creation of cages and net mats for erosion protection of rivers, dams, and seawalls, as well as net boxes for reservoir and river closure projects.

Gabion Specifications

Mesh Hole Model	8x10cm		6x8cm
Mesh Hole Model	Galvanized	PVC Coated	Galvanized	PVC Coated
Length (m) x Width (m) x Height (m)	2.7mm	>245g/m²	2.0mm	>215g/m²
2x1x1	3.4mm	>265g/m²	2.7mm	>245g/m²
3x1x1	Binding wire diameter of 2.7m		Binding wire diameter of 2.0m
