PVC Coated Wire Mesh Gabion For Riverbank Protection And Slope Stabilization

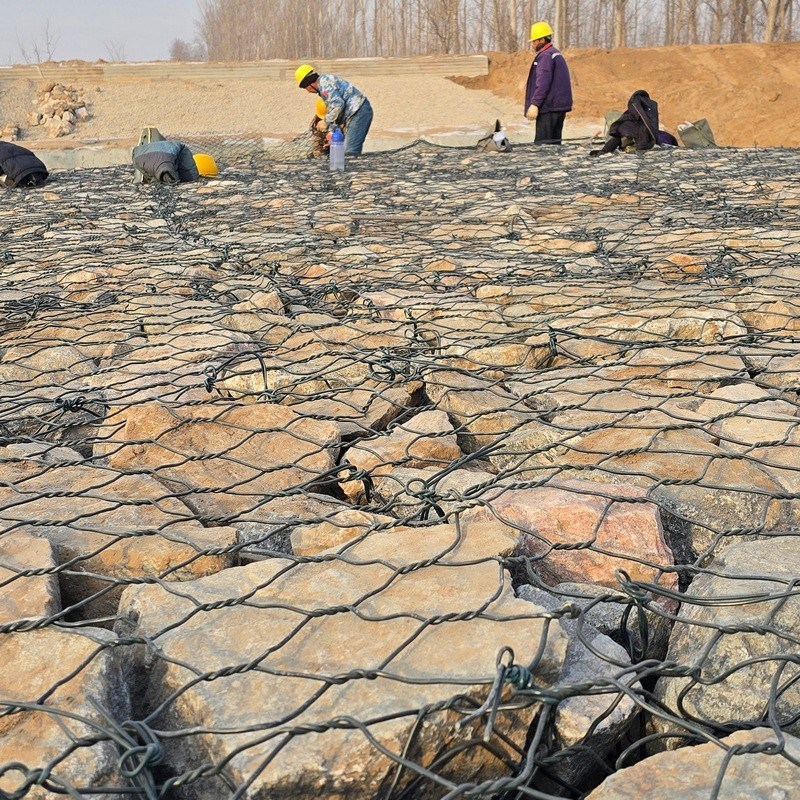

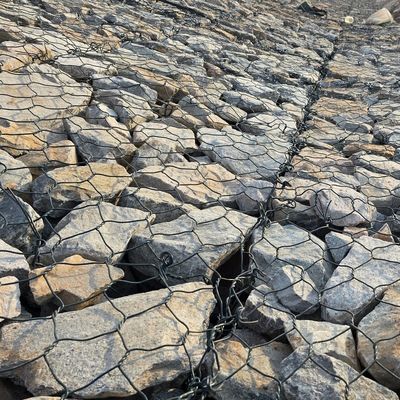

Large Image : PVC Coated Wire Mesh Gabion For Riverbank Protection And Slope Stabilization

Product Details:

Place of Origin:	CHINA
Brand Name:	KN
Certification:	ISO CE
Model Number:	1X1X1 2x1xx 3x1x1

Payment & Shipping Terms:

Minimum Order Quantity:	100pc
Price:	USD 14-19
Packaging Details:	pallets
Delivery Time:	7-8 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000mw per day

Contact Now Chat Now

Detailed Product Description

Features:	Simple Installation	Zinc Coated:	220-270g
Product_Name:	Gabion Wire Mesh	Keyword:	Galvanized Gabion Wire Mesh
Loading Capacity:	1300 Kg	Test Standard:	BV Test
Aperture Shape:	Hexagonal	Mesh_Length:	2m
Application:	Gabions	Mesh Hole:	60x80mm/80x100mm/10x12mm
Wire Guage:	2.2-3.8mm
Highlight:	Slope Stabilization Wire Mesh Gabion , PVC Coated Wire Mesh Gabion , Riverbank Protection Wire Mesh Gabion

PVC Coated Wire Mesh Gabion for Riverbank Protection and Slope Stabilization

Woven Gabion Wire Mesh

Constructed from high-tensile galvanized steel wire (wire diameter 3.2-4.7mm, zinc coating ≥250g/m²), this hexagonal double-twisted mesh forms flexible revetment matrices for coastal breakwater foundations and reservoir embankments. The 100x120mm apertures optimize stone interlock in riprap applications, while reinforced vertical stays (8-gauge) enhance load distribution across wave-impact zones.

Prefabricated rolls (2m width × 50m length) allow rapid deployment in submerged erosion control works, meeting ISO 10394-2 specifications for saline environment durability. Compatible with gabion baskets or mattress configurations in large-scale hydraulic infrastructure.

Environmental Benefits of PVC-Coated Wire Mesh

Reduced Corrosion and Maintenance: PVC coating provides excellent protection against corrosion, extending lifespan to 30+ years compared to 10-15 years for uncoated options.
Durability and Longevity: Withstands harsh weather conditions including rain, snow, and UV exposure while maintaining structural integrity.
Sustainable Material Use: Minimizes need for concrete in erosion control projects and encourages use of locally sourced stone fill.
Recyclability: Steel core is fully recyclable at end of product life cycle.
Energy Efficiency: Lightweight construction reduces energy requirements for manufacturing and transportation.

Gabion Basket Specifications

Feature	Options
Wire Materials	Hot dipped galvanized wire, PVC coated galvanized wire, Galfan galvanized wire, Plastic Steel Wire (PET)
Wire Diameter	2.2mm, 2.5mm, 2.7mm, 3.0mm, 3.5mm
Mesh Spacing	6×8cm, 8×10cm, 10×12cm (customized size available)
Gabion Basket Size	1×1×1m, 2×1×1m, 3×1×1m, 4×1×1m, etc.
Tensile Strength	350-550Mpa
Zinc Coating	40-60g/m², 240-300g/m² (heavy galvanized)

Applications

Erosion Control: Protecting riverbanks, slopes, and channels from erosion
Retaining Walls: Providing stable support for soil and structures
Landscaping: Creating aesthetically pleasing garden walls and features
Flood Protection: Building flood barriers and revetments

Manufacturing Excellence

As the largest manufacturer in China, we operate state-of-the-art production facilities with advanced wire drawing, galvanizing, and mesh weaving technology. Our extensive factory enables high-volume production while maintaining strict quality standards.

Quality Assurance

ISO9001:2015 certified with rigorous quality control from raw material inspection through final product testing to ensure reliability and durability.

Customization and Service

We offer tailored solutions for mesh size, wire diameter, and coating type, supported by timely delivery and exceptional after-sales service.
