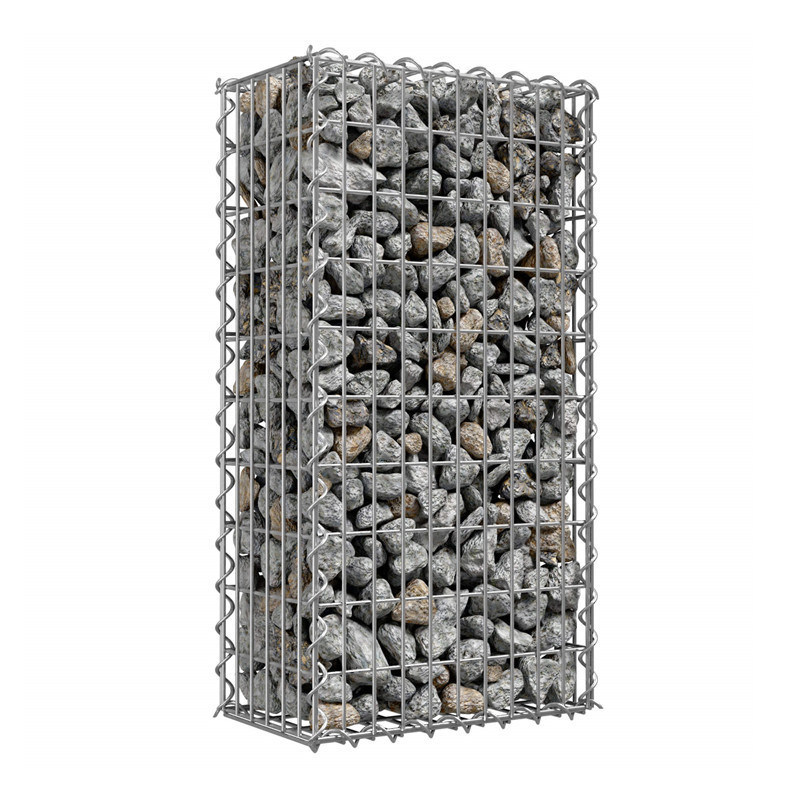

Welded Gabions Wire Mesh Fencing Stone Cage Retaining Wall

Large Image : Welded Gabions Wire Mesh Fencing Stone Cage Retaining Wall

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	KN-welded gabion wire mesh

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 45-55
Packaging Details:	pallet
Delivery Time:	10 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 pc per day

Contact Now Chat Now

Detailed Product Description

Product Name:	Welded Wire Mesh Netting Gabions Wire Mesh Fencing For Retaining Walls , Gabion Wall Baskets	Key Words:	Welded Gabion Wire Mesh
Helical Wire:	3mm	Edge Wire Diameter:	3.0-4.0mm
Mesh Size:	50x50mm, 75x75mm, 100x100mm	Feature:	Easily Assembled, Anti-corrosion
Pvc Painted Color:	Gray, Dark Green, White	Aperture:	50×50mm, 50×100mm
Highlight:	Welded Gabions wire mesh , PVOC stone cage retaining wall , PVOC gabion wall baskets

Welded Gabions Wire Mesh Fencing Stone Cage Retaining Wall

Welded Wire Mesh Netting Gabions wire mesh Fencing For Retaining Walls, Gabion Wall Baskets

For enhanced durability and corrosion resistance, the Welded Gabion Box features a hot dip galvanized coating. This protective finish prevents rust and weathering while providing a professional appearance. Available in various colors to match project aesthetics, these gabion boxes can be customized to blend with any environment.

Welded Gabion Basket Details

Product Name: Welded Gabion Box
Box Size: 1x1x1m, 2x1x1m, 3x1x1m
Customization: Available
Process: Woven Mesh
Colors: As Required
Wire: 3.0mm-5.0mm

Type	Fencing, Trellis & Gates
Surface Treatment	Galvanized
Spring Wire	3mm, 4mm, 5mm
Mesh Size	50X50 mm, 50X100 mm
Feature	Corrosion Resistance
Usage	Slope Protection
Technique	Welded Panel
Length	30m

Welded Gabion Basket Connection Methods

U-clips
C-ring
Lacing wire connection
Hook connection

Spiral wires & hooks or stiffeners are most popular due to their superior strength.

Welded Gabion Basket Advantages

Economical - Simply fill with stones and seal
Easy installation - No special technology required
Weatherproof - Resistant to natural elements and corrosion
Environmentally friendly - Sludge promotes plant growth and blends with natural surroundings
Excellent permeability - Prevents hydrostatic damage
Cost-effective transport - Can be folded for compact shipping
Structural integrity - Maintains form even under significant deformation
