Custom Gabion Wire Mesh Panels Mesh Basket With 80x100mm 100x120mm Mesh Hole

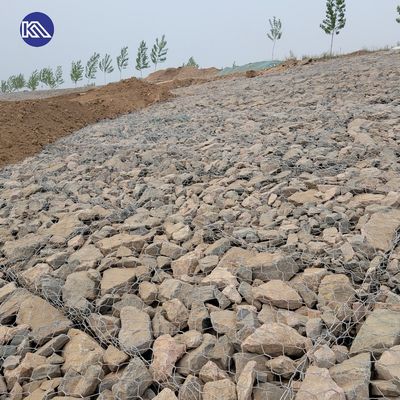

Large Image : Custom Gabion Wire Mesh Panels Mesh Basket With 80x100mm 100x120mm Mesh Hole

Product Details:

Place of Origin:	China
Brand Name:	KN
Certification:	CE, ISO, COC,BESC
Model Number:	KNG01

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	USD 14-19
Packaging Details:	pallet or bundle
Delivery Time:	7
Payment Terms:	L/C,Western Union,MoneyGram,T/T
Supply Ability:	1 40-foot high containers in 7 days

Contact Now Chat Now

Detailed Product Description

Product Name:	80mm X 100mm / 100*120mm Mesh Hole With 2.7mm - 3.05mm Wire Produce Galvanized Gabion Wire Mesh Basket For Sale	Key Word:	Gabion Wire Mesh
Material:	Galvanized Iron Wire,Low-Carbon Iron Wire,pvc Wire, Galfan Wire	Hole Shape:	Hexagonal, Double Twist
Wire Gauge:	2.4mm, 2.5mm, 2.7mm, 2.8mm, 3.05mm	Application:	Gabions,Cages,slope Protection,Fence Mesh,Construction Wire Mesh
Type:	Hexagonal Wire Mesh, Double Twist	Aperture:	80100mm,100120mm,60*80mm,etc,
Surface Treatment:	Hot Dipped Galvanized, PVCcoated, Galvanized+PVC Coated	Product Name:	Gabion Box, Gabion Box Wire Mesh,Gabion Basket,Hot Sale 2x1x1m PVC Coated Heavy Duty Gabion
Color:	Green,black,	Usage:	Flood Control Retaining Wall, Protection,
Highlight:	Custom Gabion Wire Mesh Panels , galvanized gabion basket 100x120mm , 80mm x 100mm gabion mesh basket

Custom Gabion Wire Mesh Panels Mesh Basket

80mm × 100mm / 100×120mm mesh hole with 2.7mm - 3.05mm wire produce galvanized gabion wire mesh basket for sale.

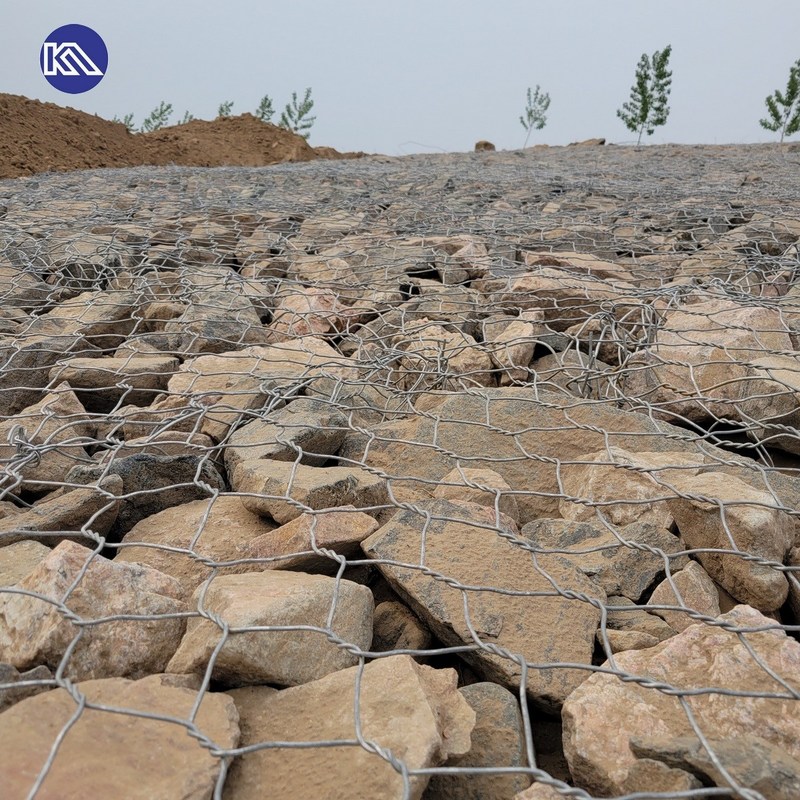

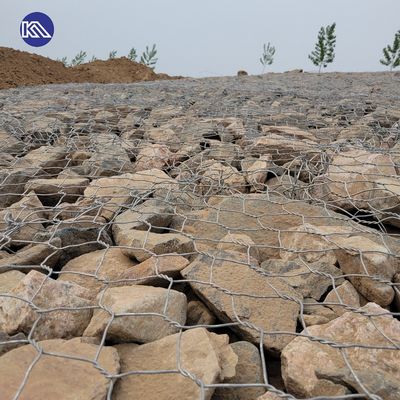

Gabion Wire Mesh Basket offers a durable and cost-effective solution for erosion control, landscaping, and structural reinforcement. Made from high-quality galvanized or PVC-coated steel wire, these baskets are designed to be filled with stones, providing strong, permeable barriers that stabilize soil and protect against flooding and erosion.

Standard Gabion Basket Sizes

Length (M)	Width (M)	Height (M)	Diaphragm	CBM (m³)
1	1	1	0	1
2	1	1	1	2
3	1	1	2	3
4	1	1	3	4
5	1	1	4	5
6	1	1	5	6

Other sizes available for customization

Standard Gabion Mattress Sizes

Length (M)	Width (M)	Height (M)	Diaphragm	CBM (m³)
1	1	0.3/0.5	0	0.3/0.5
2	1	0.3/0.5	1	0.6/1
3	1	0.3/0.5	2	0.9/1.5
4	1	0.3/0.5	3	1.2/2
5	2	0.3/0.5	4	3/5
6	2	0.3/0.5	5	3.6/6

Other sizes available for customization

Product Applications

Erosion Control: Stabilizes slopes and riverbanks, preventing soil erosion while allowing proper water drainage.
Retaining Walls: Constructs durable walls that secure hillside soil while adding natural aesthetics to landscapes.
Flood Protection: Forms strong barriers to divert water flow and reduce flood damage to infrastructure.
Coastal Defense: Stabilizes shorelines against wave action, protecting beaches and coastal properties.
Road and Highway Embankments: Reinforces soil retention to prevent landslides and maintain transportation route stability.
Bridge Abutments and Foundations: Strengthens structural components in bridge construction for enhanced integrity.

Technical Specifications

Parameter	Description	Typical Value / Range
Material	Base material used for constructing the mesh	HDP/Galvanized Wire, PVC Wire
Coating	Surface treatment for enhanced corrosion resistance	Galvanized, HDP Galvanized, PVC Coated
Wire Diameter	The thickness of the wires used in the mesh	Mesh Wire: 2.0~3.05mm Selvage Wire: 2.4~4.0mm Tie Wire: 2.0~2.4mm
Mesh Opening Size	The size of the openings between wires	60×80mm, 80×100mm, 100×120mm, 120×150mm
Overall Dimensions	Standard Gabion Roll and Gabion Basket Size	Gabion Roll Width: 1~4m Gabion Basket: 1×1×1m, 2×1×1m, 3×1×1m, 4×1×1m, 5×1×1m, 6×1×1m
Lifespan	Expected service life under normal conditions	6~20 years (depending on environment)
