Woven Gabion Wire Mesh Slope Reinforcement Triple Weave Anti Scour Flood Defense

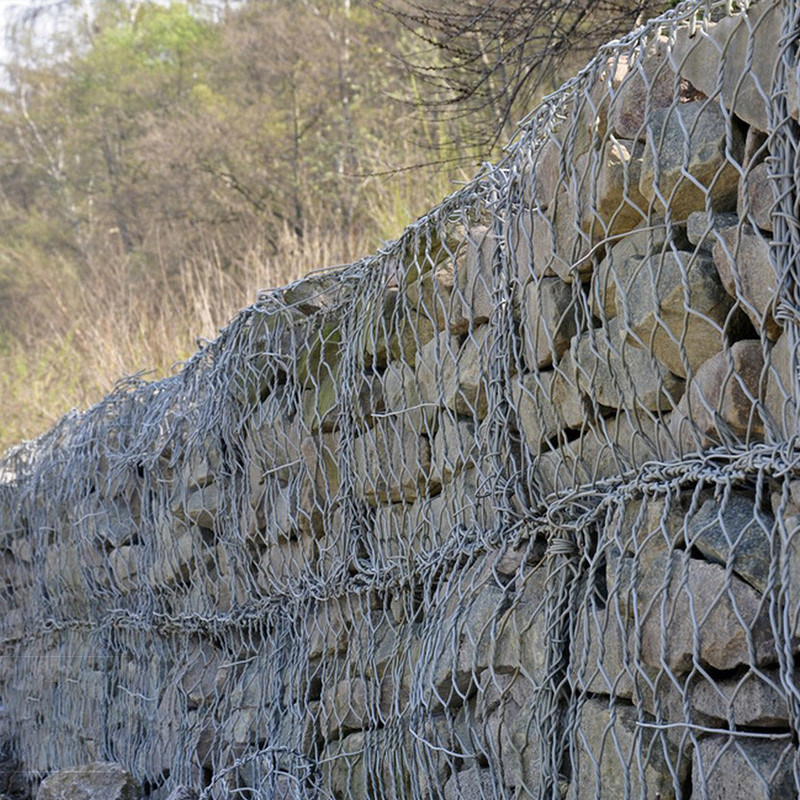

Large Image : Woven Gabion Wire Mesh Slope Reinforcement Triple Weave Anti Scour Flood Defense

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	KN-gabion wire mesh

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 14-19
Packaging Details:	pallet
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 pc per day

Contact Now Chat Now

Detailed Product Description

Product Name:	Woven Gabion Wire Mesh Slope Reinforcement Triple Weave Anti Scour Flood Defense	Key Words:	Gabion Wire Mesh
Wire Diameter:	3.0mm	Technics:	Woven
Hole Size:	60*80mm	Mesh Opening:	6080/ 80100/ 100120/ 120150mm
Zinc Coating:	245g	Standard Specification:	According To Your Request.
Hope Shape:	Hexagonal	Size:	210.5m
Highlight:	woven gabion wire mesh , woven gabion basket

Woven Gabion Wire Mesh Slope Reinforcement Triple Weave Anti Scour Flood Defense

Woven Gabion Wire Mesh for Hydraulic Structures

Manufactured from high-carbon steel wire with double-twist hexagonal weaving, our gabion mesh (2.0-4.0mm wire diameter, 60×80mm to 100×120mm openings) is designed for constructing flexible revetment systems in water environments. The hot-dip galvanized or PVC-coated mesh forms permeable structures when filled with stone, suitable for river training works, coastal protection, and flood control projects. Standard panel sizes (2m×1m) facilitate quick assembly into mattresses or boxes for channel lining, bank stabilization, and scour protection. The material meets EN 10223-3 specifications for hydraulic applications requiring durable, permeable erosion control solutions.

Key Features

Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages

3x Lifespan: 50-100 years corrosion resistance
Load Capacity: Up to 50kN/m² vertical pressure
Eco-Friendly: 100% recyclable materials with zero chemical runoff
Modular Assembly: Interlocking panels for 70% faster installation

Applications

Civil Engineering: Riverbank stabilization, highway embankments
Architecture: Retaining walls, sound barriers, decorative façades
Disaster Prevention: Flood control barriers, landslide mitigation systems
Mining: Tailings dam reinforcement, slope retention

Customization Services

Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
Wire Diameters: 2.2mm - 4.0mm (3.0mm recommended for high-load zones)
Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)

Gabion Specifications

Dimensions	Mesh Hole Model 8x10cm		Mesh Hole Model 6x8cm
Dimensions	Galvanized	PVC coated	Galvanized	PVC coated
2x1x1m	2.7mm, >245g/m²	2.7mm, >245g/m²	2.0mm, >215g/m²	2.0mm, >215g/m²
3x1x1m	3.4mm, >265g/m²	3.4mm, >265g/m²	2.7mm, >245g/m²	2.7mm, >245g/m²
4x1x1m	3.4mm, >265g/m²	3.4mm, >265g/m²	2.7mm, >245g/m²	2.7mm, >245g/m²
6x1x1m	Binding wire 2.7mm	Binding wire 2.7mm	Binding wire 2.0mm	Binding wire 2.0mm
