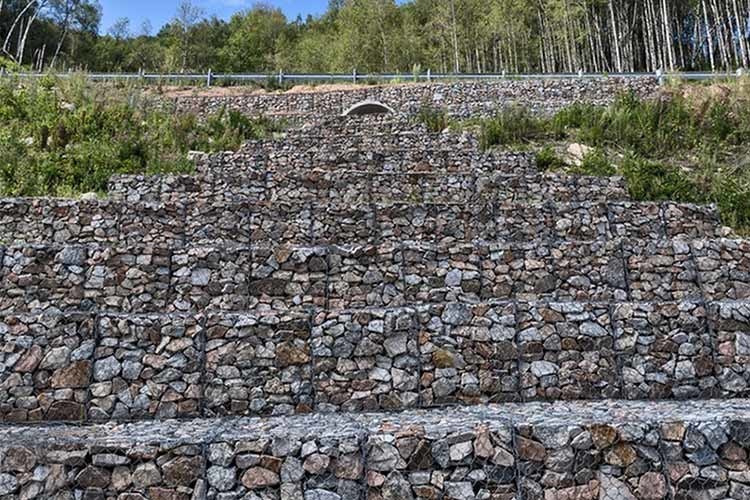

Hot Dip Galvanized Gabion Wire Mesh For Durable And Eco Friendly Construction

Large Image : Hot Dip Galvanized Gabion Wire Mesh For Durable And Eco Friendly Construction

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	KN-gabion

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 14-19
Packaging Details:	pallet
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 pc per day

Contact Now Chat Now

Detailed Product Description

Product Name:	Hot-Dip Galvanized Gabion Wire Mesh For Durable And Eco-Friendly Construction	Key Words:	Gabion Wire Mesh
Specification:	60060020/25	Advantage:	Flood Control Retaining Wall
Material:	Galvanized Steel Wire	Wire Surface Treatment:	Hot-dipped Galvanized
Mesh Panel Size:	2x1x1m, 3x1x1m, 4x1x1m	Selvedge Wire Diameter:	3.4-4.0mm
Mesh Size:	60x80mm, 80x100mm, 100x120mm	Zinc Coated:	220-270g
Highlight:	galvanized gabion wire mesh , galvanized gabion basket , durable gabion basket

Hot Dip Galvanized Gabion Wire Mesh For Durable And Eco Friendly Construction

Product Overview

The Hexagonal Gabion Mesh is a versatile and eco-friendly product widely used in civil engineering and landscaping. It is made from high-quality steel wire, coated with PVC or galvanized for corrosion resistance. The hexagonal shape provides excellent stability and flexibility, making it ideal for retaining walls, riverbank protection, and slope stabilization. Its hollow structure allows for filling with stones or soil, promoting vegetation growth and enhancing natural aesthetics. Easy to install and customize, it offers a sustainable solution for both functional and decorative purposes.

Key Features

Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages

3x Lifespan: 50-100 years corrosion resistance
Load Capacity: Up to 50kN/m² vertical pressure
Eco-Friendly: 100% recyclable materials with zero chemical runoff
Modular Assembly: Interlocking panels for 70% faster installation

Applications

Civil Engineering: Riverbank stabilization, highway embankments
Architecture: Retaining walls, sound barriers, decorative façades
Disaster Prevention: Flood control barriers, landslide mitigation systems
Mining: Tailings dam reinforcement, slope retention

Customization Services

Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
Wire Diameters: 2.2mm - 4.0mm (3.0mm recommended for high-load zones)
Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)

Gabion Specifications

Mesh Hole Model	8x10cm
Mesh Hole Model	Galvanized or PVC coated	Galvanized or PVC coated
Length (m) / Width (m) / Height (m)	Mesh diameter: 2.7mm Zinc: >245g/m²	Mesh diameter: 2.0mm Zinc: >215g/m²
2 / 1 / 1	Side wire diameter: 3.4mm Zinc: >265g/m²	Side wire diameter: 2.7mm Zinc: >245g/m²
3 / 1 / 1	Binding wire diameter of 2.7m
4 / 1 / 1	Binding wire diameter of 2.0m
6 / 1 / 1
