ASTM Galvanized Gabion Wire Mesh For Erosion Control CE / ISO Certified

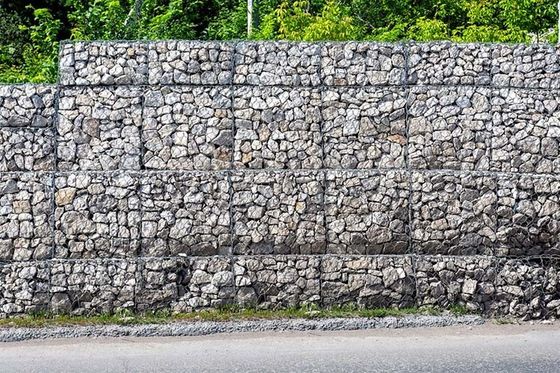

Large Image : ASTM Galvanized Gabion Wire Mesh For Erosion Control CE / ISO Certified

Product Details:

Place of Origin:	CN
Brand Name:	KN
Certification:	CE ISO SGS COC PVOC
Model Number:	KN-gabion

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	USD 14-19
Packaging Details:	pallet
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 pc per day

Contact Now Chat Now

Detailed Product Description

Product Name:	ASTM Galvanized Gabion Wire Mesh For Erosion Control CE/ISO Certified	Key Words:	Gabion Wire Mesh
Wire Dia:	2.7mm	Weaving Type:	Double Twist Weaving
Metal Type:	Iron	Surface Treatment:	Electro Galvanized
Mesh Size:	60x80 80x100 80x120 100x120	Connect Way:	By Helical Wire, By U Post, H Post
Highlight:	galvanized gabion wire mesh , galvanized gabion basket , ce gabion basket

ASTM Galvanized Gabion Wire Mesh For Erosion Control CE / ISO Certified

Hexagonal galvanized steel mesh structure (ASTM A975) for erosion control & retaining walls. Hot-dip Zn/Al coating (200g/m²) ensures 50+ years lifespan. Modular design allows rapid DIY assembly. Used in flood barriers, mining, highways. Permeable & eco-friendly with stone/vegetation fill. Sizes: 2x1x1m to 6x2x1m. CE/ISO certified.

Key Features

Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages

3x Lifespan: 50-100 years corrosion resistance
Load Capacity: Up to 50kN/m² vertical pressure
Eco-Friendly: 100% recyclable materials with zero chemical runoff
Modular Assembly: Interlocking panels for 70% faster installation

Applications

Civil Engineering: Riverbank stabilization, highway embankments
Architecture: Retaining walls, sound barriers, decorative façades
Disaster Prevention: Flood control barriers, landslide mitigation systems
Mining: Tailings dam reinforcement, slope retention

Customization Services

Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
Wire Diameters: 2.2mm - 4.0mm (3.0mm recommended for high-load zones)
Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)

Gabion Specifications

	Mesh hole model
	8x10cm	6x8cm
Length (m)	Width (m)	Height (m)	Galvanized or PVC coated	Galvanized or PVC coated
2	1	1	2.7mm >245g/m²	2.0mm >215g/m²
3	1	1	3.4mm >265g/m²	2.7mm >245g/m²
4	1	1	Binding wire diameter of 2.7m
6	1	1	Binding wire diameter of 2.0m
