OEM PVC Coated Gabion Mattresses 60x80mm Mesh Hole For Bridge Construction

Large Image : OEM PVC Coated Gabion Mattresses 60x80mm Mesh Hole For Bridge Construction

Product Details:

Place of Origin:	China
Brand Name:	KN
Certification:	CE, ISO, COC,BESC
Model Number:	KNG01

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	USD 16-20
Packaging Details:	pallet or bundle
Delivery Time:	7
Payment Terms:	L/C,Western Union,MoneyGram,T/T
Supply Ability:	1 40-foot high containers in 7 days

Contact Now Chat Now

Detailed Product Description

Product Name:	PVC Coated 310.5m / 520.3m Mesh Gabion Mattress Box With 60*80mm Mesh Hole For Bridge Construction	Key Word:	Gabion Mattress
Material:	Galvanized Iron Wire,Low-Carbon Iron Wire,pvc Wire, Galfan Wire	Hole Shape:	Hexagonal, Double Twist
Wire Gauge:	2.4mm, 2.5mm, 2.7mm, 2.8mm, 3.05mm	Application:	Gabions,Cages,slope Protection,Fence Mesh,Construction Wire Mesh
Surface Treatment:	Hot Dipped Galvanized, PVCcoated, Galvanized+PVC Coated	Product Name:	Gabion Box, Gabion Box Wire Mesh,Gabion Basket,Hot Sale 2x1x1m PVC Coated Heavy Duty Gabion
Size:	2m1m1m,1x1x0.5m,411m,511,Customized,	Feature:	Easily Assembled,less Transport Freight,Strong And Durable, Simple Installation
Width:	2' -2m,0.914m~1.83m,0.5-2m,1M	Zinc Coated:	40-60g,60g-80g,270g,245g, Etc,
Highlight:	OEM PVC Coated Gabion Mattresses , 60x80mm Mesh Hole Gabion Mattresses , Gabion Mattresses for Bridge Construction

PVC Coated Gabion Mattresses 60x80mm Mesh Hole for Bridge Construction

PVC Coated 3×1×0.5m / 5×2×0.3m Mesh Gabion Mattress Box with 60×80mm Mesh Hole for Bridge Construction.

A PVC Coated Gabion Mattress is a highly durable solution used in bridge construction for erosion control and soil stabilization. Made from galvanized wire mesh coated with PVC for enhanced corrosion resistance, these gabion mattresses are filled with stones to form flexible, permeable barriers that absorb and disperse water flow, protecting bridge foundations from erosion and undermining forces. Ideal for both river and coastal applications, PVC coated gabion mattresses help to stabilize soil, prevent flooding, and extend the lifespan of bridge structures by providing long-term protection against harsh environmental conditions.

Standard Gabion Sizes

Gabion Basket Dimensions

Length (M)	Width (M)	Height (M)	Diaphragm	CBM (m³)
1	1	1	0	1
2	1	1	1	2
3	1	1	2	3
4	1	1	3	4
5	1	1	4	5
6	1	1	5	6

Other sizes available upon customization

Gabion Mattress Dimensions

Length (M)	Width (M)	Height (M)	Diaphragm	CBM (m³)
1	1	0.3/0.5	0	0.3/0.5
2	1	0.3/0.5	1	0.6/1
3	1	0.3/0.5	2	0.9/1.5
4	1	0.3/0.5	3	1.2/2
5	2	0.3/0.5	4	3/5
6	2	0.3/0.5	5	3.6/6

Other sizes available upon customization

Product Applications

Erosion Control: Stabilizes slopes and riverbanks, preventing soil erosion while allowing proper water drainage.
Retaining Walls: Constructs durable walls that secure hillside soil with a natural aesthetic for landscapes.
Flood Protection: Forms barriers to divert water flow and reduce flood damage to infrastructure.
Coastal Defense: Stabilizes shorelines against wave action and protects coastal properties from erosion.
Road and Highway Embankments: Reinforces soil retention to prevent landslides and ensure transportation route stability.
Bridge Abutments and Foundations: Strengthens structural support for bridge construction with cost-effective reinforcement.

Technical Specifications

Parameter	Description	Typical Value / Range
Material	Base material used for constructing the mesh	HDP/Galvanized Wire, PVC Wire
Coating	Surface treatment for enhanced corrosion resistance	Galvanized, HDP Galvanized, PVC Coated
Wire Diameter	The thickness of the wires used in the mesh	Mesh Wire: 2.0~3.05mm Selvage Wire: 2.4~4.0mm Tie Wire: 2.0~2.4mm

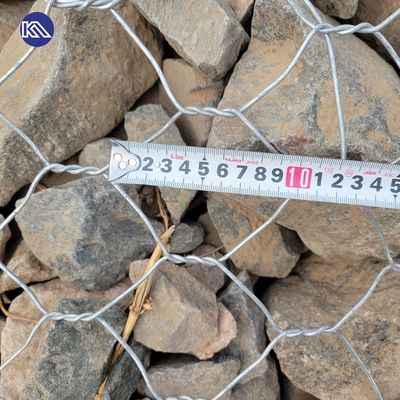

Mesh Opening Size	The size of the openings between wires	60×80mm, 80×100mm, 100×120mm, 120×150mm
Overall Dimensions	Standard Gabion Roll and Gabion Basket Size	Gabion Roll Width: 1~4m Gabion Basket: 1×1×1m, 2×1×1m, 3×1×1m, 4×1×1m, 5×1×1m, 6×1×1m
Lifespan	Expected service life under normal conditions	6~20 years (depending on environment)
