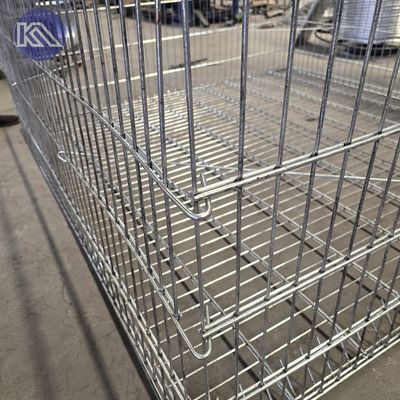

Stone Filled Wire Mesh Wall 5.0mm Thickness 1m X 1m X 0.5m For Slope Protection

Stone Filled Wire Mesh Wall 5.0mm Thickness 1m X 1m X 0.5m For Slope Protection
Stone Filled Wire Mesh Wall 5.0mm Thickness 1m X 1m X 0.5m For Slope Protection Stone Filled Wire Mesh Wall 5.0mm Thickness 1m X 1m X 0.5m For Slope Protection

Large Image :  Stone Filled Wire Mesh Wall 5.0mm Thickness 1m X 1m X 0.5m For Slope Protection

Product Details:
Payment & Shipping Terms:
Price: USD 55-60
Contact Now Chat Now
Detailed Product Description
Highlight:

stone filled wire mesh wall 5.0mm

,

5.0mm wire mesh gabion box

,

slope wire mesh gabion box

Stone Filled Wire Mesh Wall 5.0mm Thickness 1m X 1m X 0.5m For Slope Protection
Heavy Gauge 5.0mm Galvanized Welded Mesh Gabion Box. Commonly employed in coastal areas, welded gabion boxes protect the coastline from erosion by absorbing and diffusing wave energy. They create durable barriers that stabilize the land while supporting plant growth and maintaining biodiversity.
Key Features
  • Erosion Protection: Creates durable barriers that stabilize land while supporting plant growth
  • Material Options: Galvanized Steel Wire, Galfan Steel Wire/Zinc-5%Aluminum Wire
  • Customizable Sizes: Available in standard and bespoke dimensions
  • Durable Finishes: Hot Dipped Galvanized, Heavy Zinc Coating, Galfan Coating, PVC Coated
Technical Specifications
Parameter Details
Wire Diameter 3 mm-6 mm
Aperture 50*50 mm, 50*100 mm etc
Fabric Type Galvanized welded mesh
Tensile Strength (wire) 540 to 770 N/mm²
Weld Strength 75% of the minimum ultimate tensile strength of the wire
Standard Gabion Box Sizes
Normal Box Size(cm) Diaphragms Capacity (m3) Mesh Size(mm)
100x30x30 None 0.09 50×50 or 100×50
100x50x30 None 0.15
100x100x50 None 0.5
100x100x100 None 1
150x100x50 1 0.75
150x100x100 1 1.5
200x100x50 1 1
200x100x100 1 2
Other sizes can be customized.
Application Scenarios
Stone Filled Wire Mesh Wall 5.0mm Thickness 1m X 1m X 0.5m For Slope Protection 0
Retaining Walls
Stabilizing slopes, preventing soil erosion, and supporting embankments in residential and commercial projects.
Stone Filled Wire Mesh Wall 5.0mm Thickness 1m X 1m X 0.5m For Slope Protection 1
Erosion Control
Effective in controlling soil erosion along riverbanks, coastlines, and steep slopes.
Stone Filled Wire Mesh Wall 5.0mm Thickness 1m X 1m X 0.5m For Slope Protection 2
Flood Protection
Creating flood barriers or levees to protect vulnerable areas from floodwaters.
Stone Filled Wire Mesh Wall 5.0mm Thickness 1m X 1m X 0.5m For Slope Protection 3
Landscaping Features
Creating decorative garden walls, seating areas, and planters with functional appeal.
Additional Resources
Stone Filled Wire Mesh Wall 5.0mm Thickness 1m X 1m X 0.5m For Slope Protection 4
Stone Filled Wire Mesh Wall 5.0mm Thickness 1m X 1m X 0.5m For Slope Protection 5
Stone Filled Wire Mesh Wall 5.0mm Thickness 1m X 1m X 0.5m For Slope Protection 6
Stone Filled Wire Mesh Wall 5.0mm Thickness 1m X 1m X 0.5m For Slope Protection 7
Stone Filled Wire Mesh Wall 5.0mm Thickness 1m X 1m X 0.5m For Slope Protection 8
